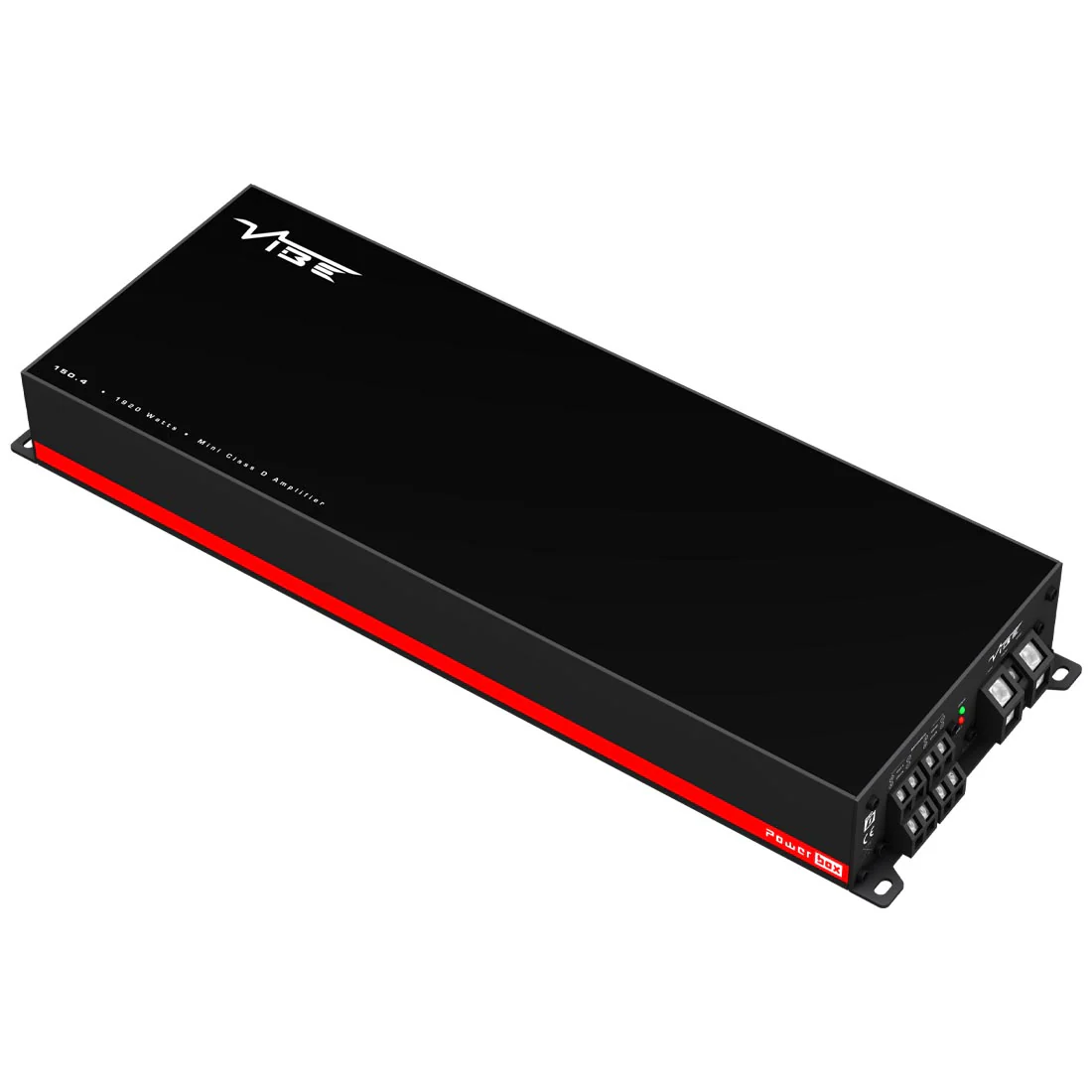

Vibe PB150.4M-V0 Class D 4-Channel Car Amplifier (PB1504MV0)

Vibe PB150.4M-V0 Class D 4-Channel Car Amplifier (PB1504MV0)

The Vibe PB150.4M-V0 is built for drivers who want serious power without giving up space, efficiency, or sound quality. Designed as part of VIBE British Audio’s Powerbox Mini range, this compact Class D amplifier takes everything that worked in earlier designs and pushes it further, delivering big performance from a small footprint.

Compact Design With Serious Power

At the heart of the Vibe PB150.4M-V0 is a Class D topology that focuses on efficiency. Think of it like a fuel-efficient sports car: less energy wasted, more performance where it counts. This design allows the amplifier to stay cooler while producing higher output, making it ideal for tight spaces without compromising reliability. With up to 1920 watts of maximum power, it’s more than capable of driving a full system with confidence.

Advanced Amplifier Topology Explained

Unlike traditional Class AB designs, the Vibe PB150.4M-V0 uses a MOSFET output stage normally reserved for larger amplifiers. The result is cleaner sound, better efficiency, and the flexibility to bridge channels when more power is needed. Lower current draw also means less strain on the vehicle’s charging system, which is a big win for modern cars packed with electronics.

Deltabox™ Connectivity for Flexible Systems

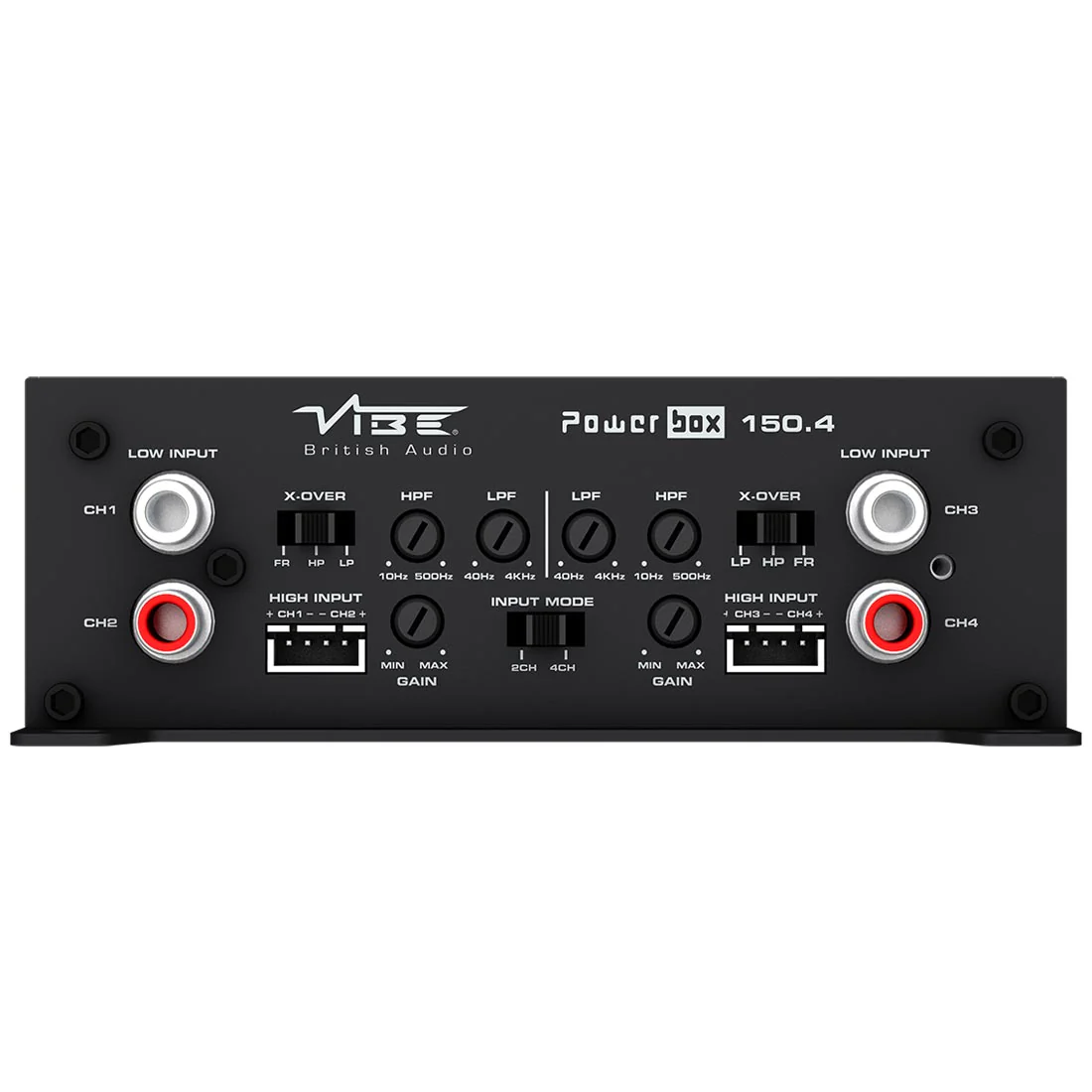

Connectivity is where the Vibe PB150.4M-V0 really shines. High-quality RCA inputs support a wide voltage range, while the Deltabox™ high-level input circuit opens the door to seamless factory system integration. This setup accepts input voltages up to 35V and features Auto Sense turn-on, so the amplifier powers up reliably without extra components. It’s a clean, efficient solution that keeps the signal path simple.

OPTISOUND™ Advanced OEM Integration

Modern vehicles can be picky, but the Vibe PB150.4M-V0 is built to play nicely. OPTISOUND™ technology prevents common OEM issues like error messages, speaker cutouts, or lost fader control. By stopping the vehicle from detecting resistance changes, this amplifier integrates smoothly while keeping factory systems happy, making it a favorite choice for OEM upgrades.

VIBE Sound Studio™ Active Crossovers

Fine-tuning your sound shouldn’t feel like rocket science. The Vibe PB150.4M-V0 features VIBE Sound Studio™ active crossovers with natural 12dB slopes, supporting both passive and active setups. With a wide 10Hz–30kHz bandwidth in full-range mode, the amplifier handles everything from deep lows to detailed highs, giving your speakers room to breathe and perform at their best.

Power Ratings and Dimensions

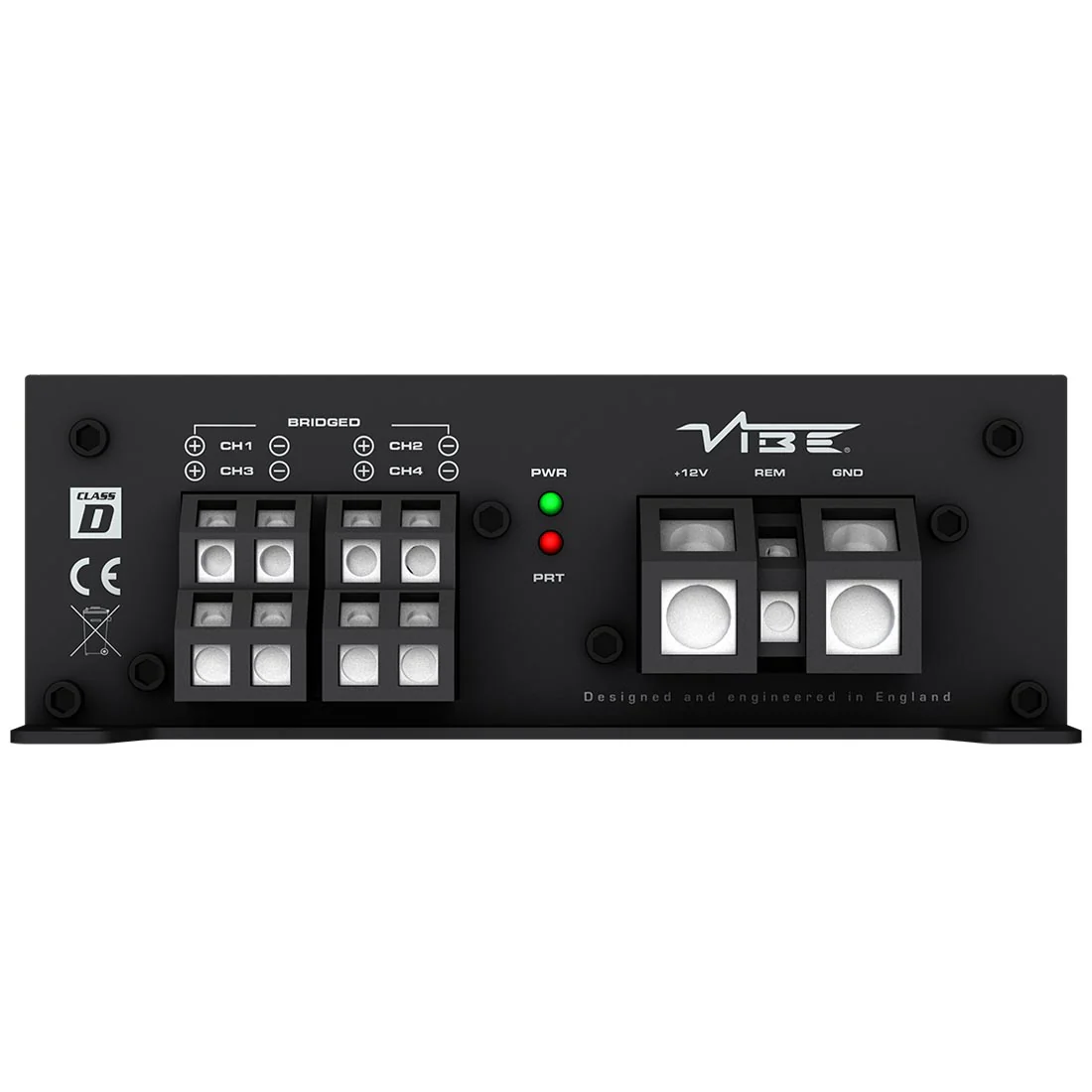

Performance numbers back up the design. The Vibe PB150.4M-V0 delivers 4 x 150W at 4 ohms, 4 x 240W at 2 ohms, and 2 x 480W at 4 ohms when bridged. All this comes in a slim chassis measuring just 1.9” x 15.4” x 5.3”, proving that big sound doesn’t need a big box.

Why This Amplifier Makes Sense

From efficient Class D operation to smart connectivity and OEM-friendly technology, the Vibe PB150.4M-V0 is designed as a true all-in-one solution. It’s powerful, compact, and flexible enough to handle demanding sound quality systems while fitting neatly into modern vehicles.

---

FAQs

1. What makes the Vibe PB150.4M-V0 different from older Powerbox amplifiers? It builds on the Micro range with higher output, improved efficiency, and a more advanced MOSFET-based Class D design.
2. Can the Vibe PB150.4M-V0 support active speaker setups? Yes, the built-in VIBE Sound Studio™ active crossovers allow safe and effective active system configurations.
3. How does Auto Sense turn-on work on the Vibe PB150.4M-V0? The Deltabox™ high-level input uses DC offset sensing to provide a stable and reliable automatic power-up.
4. Is the Vibe PB150.4M-V0 suitable for modern factory audio systems? OPTISOUND™ technology ensures smooth integration without triggering OEM system errors or losing functionality.
5. What kind of sound range can the Vibe PB150.4M-V0 handle? With a 10Hz–30kHz bandwidth in full-range mode, it supports detailed highs and deep lows for high-quality audio playback.
