TOA T-001T Dual Line Output Expansion Module with DSP

TOA T-001T Dual Line Output Expansion Module with DSP

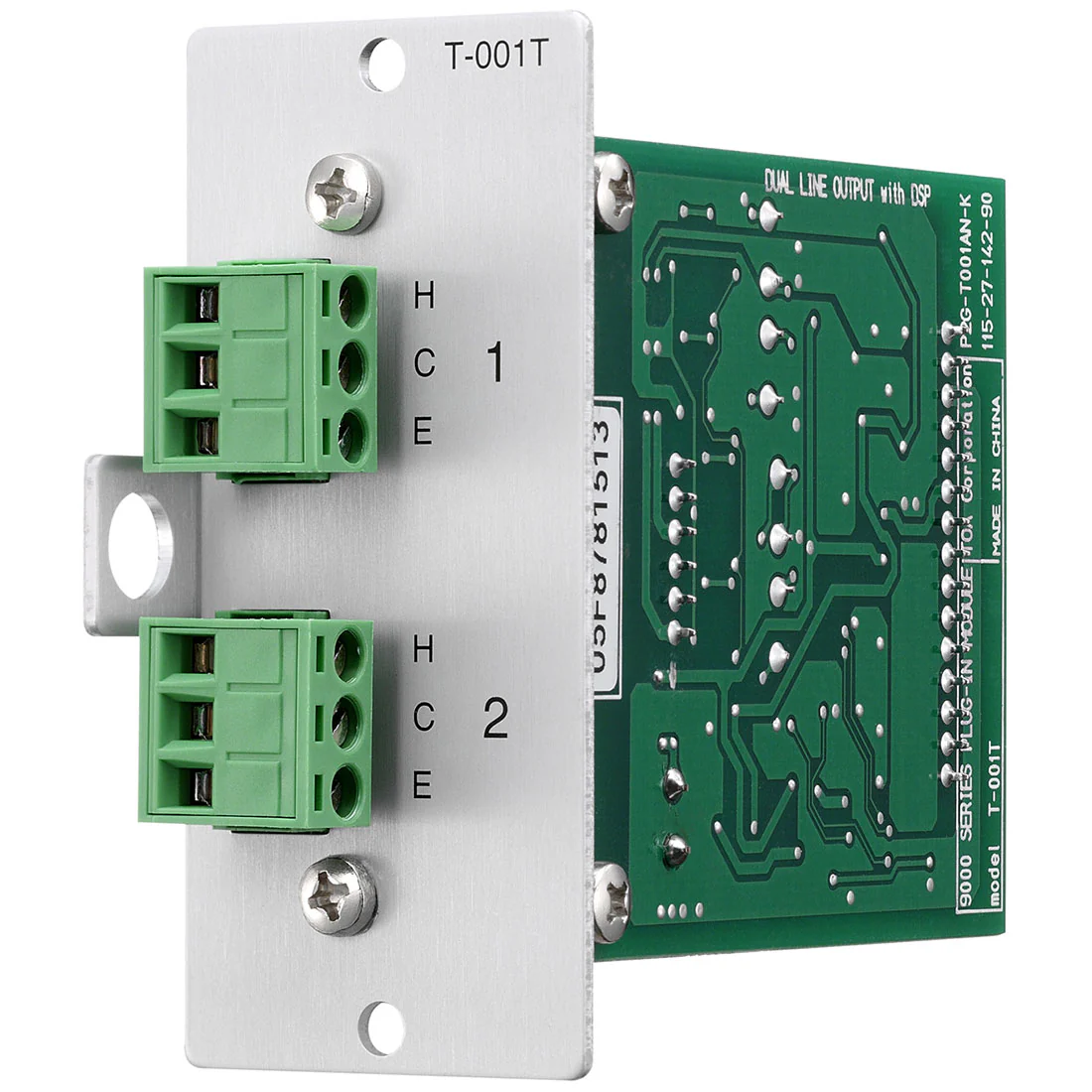

The T-001T is a plug-in module with two separate balanced outputs that is made for use with amplifiers from the 9000 Series. It is able to drive a 600 load up to +16 dB. It can independently process the effects of the TONE/EQ/COMPRESSOR on two outputs.

Features

• Two Balanced Line Outputs
• Digital Signal Processing
• 10-Band Parametric EQ
• Bass / Treble
• Loudness
• High and Low Pass Filters
• Compressor
• TOA speaker EQ presets
• Removable Terminal Block
• Maximum three per chassis

Specifications

• Power Source: +24 V DC, -24 V DC, +6 V DC
• Current Consumption: 35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC)
• Output: 2 channels, max. +20 dB* (at 10 k? load), 600 ?, electronically-balanced, removable terminal block (3 pins)
• Frequency Response: 20 Hz - 20 kHz, +1, -3 dB
• Total Harmonic Distortion + N: 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 k? load)
• S/N Ratio: Over 73 dB (at 20 Hz - 20 kHz BPF)
• Residual Noise: Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB)
• Cross Talk: Over 87 dB (at 20 kHz)
• D/A Converter: 24 bit DAC
• Sampling Frequency: 48 kHz
• Tone Control: Bass: ±12 dB (at 100 Hz) - Treble: %%p12 dB (at 10 kHz)
• Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
• Speaker Equalizer: 10 (setup software has 30 TOA speaker presets)
• High-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
• Low-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
• Compressor: Depth: 1 - 5
• Delay: 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
• Operating Temperature: -10 ? to +40 ?
• Finish: Panel: Aluminum, hair-line
• Dimensions: 35 (W) × 78 (H) × 91.5 (D) mm
• Weight: 82 g
• Accessory: Removable terminal plug (3 pins) - 2, Module mounting screw - 2
