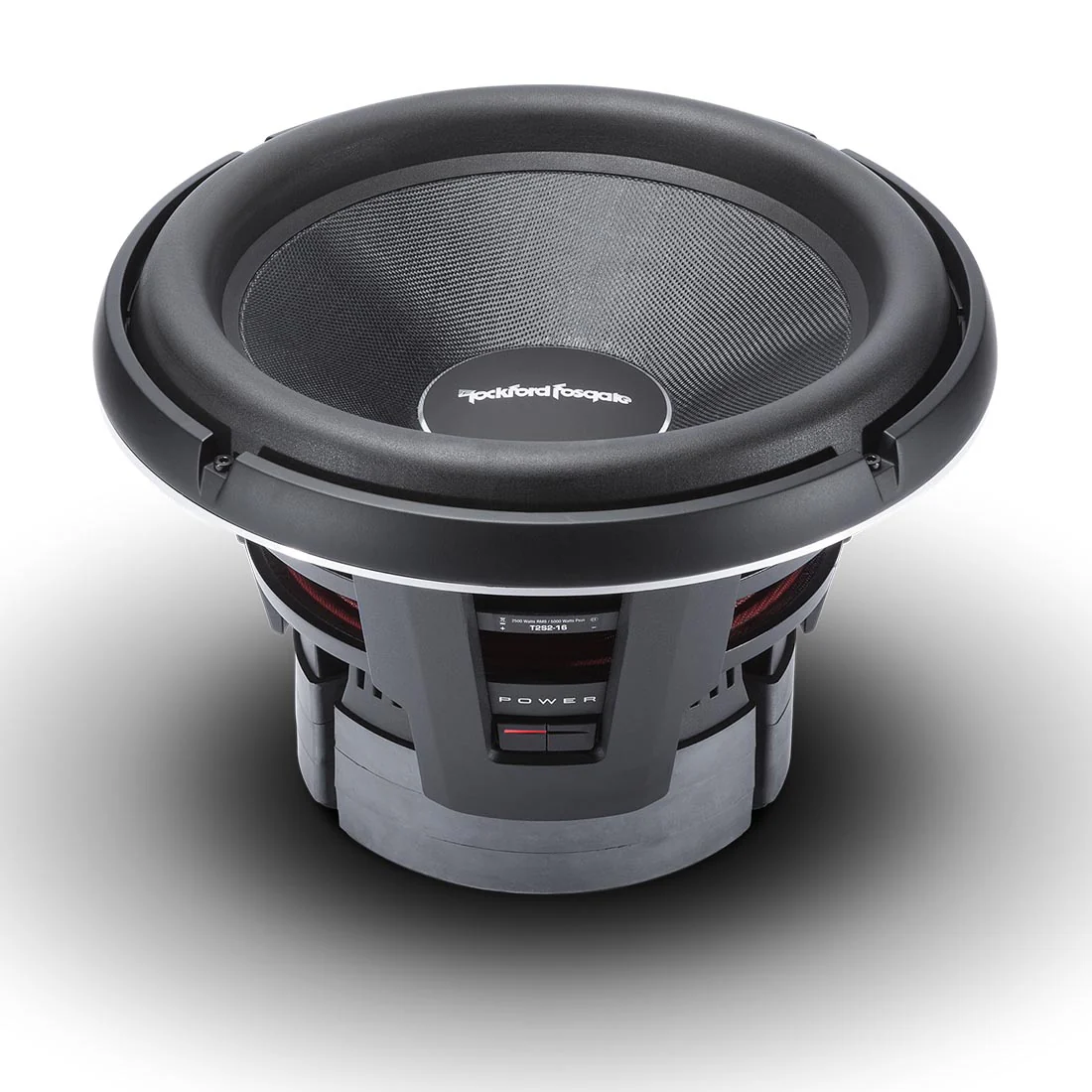

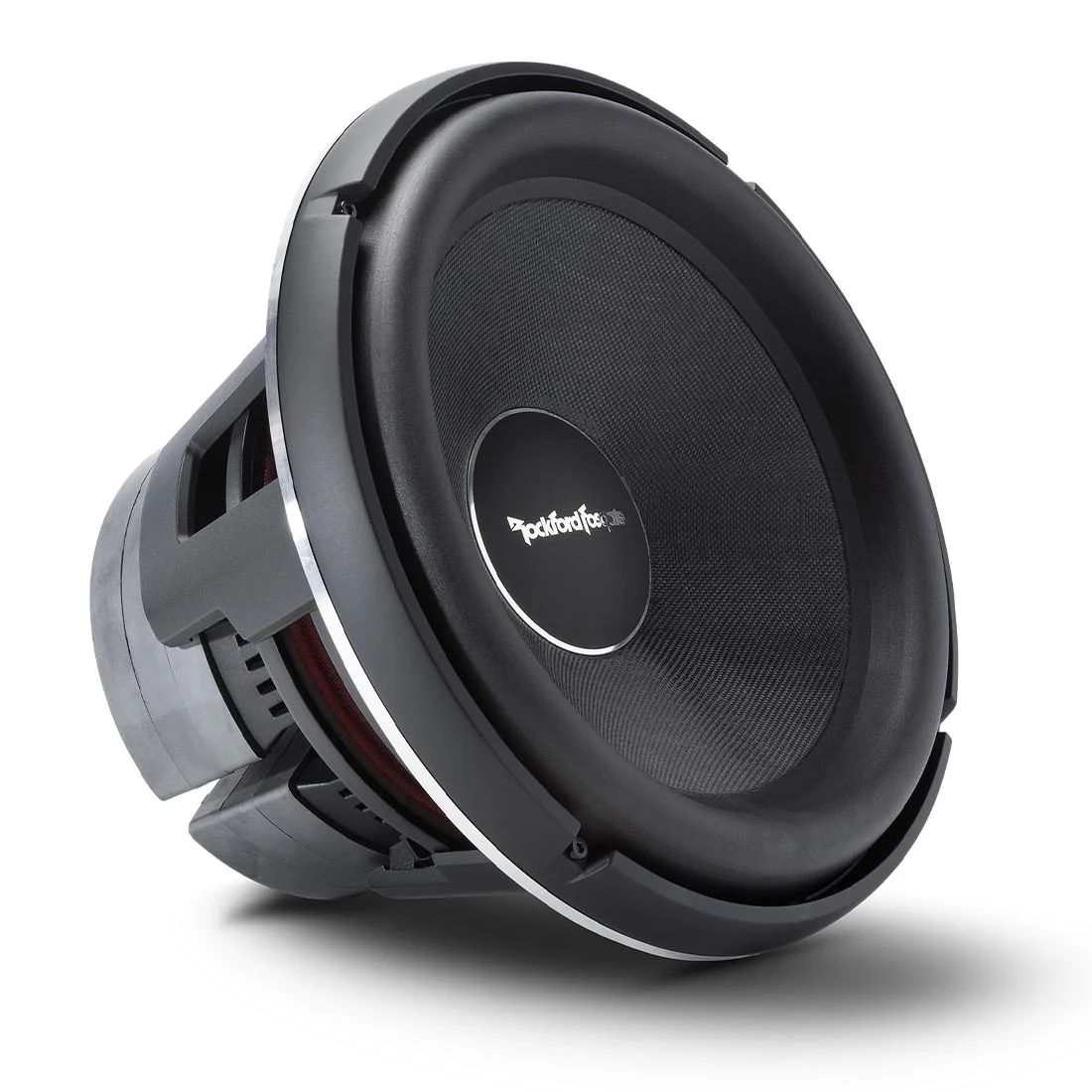

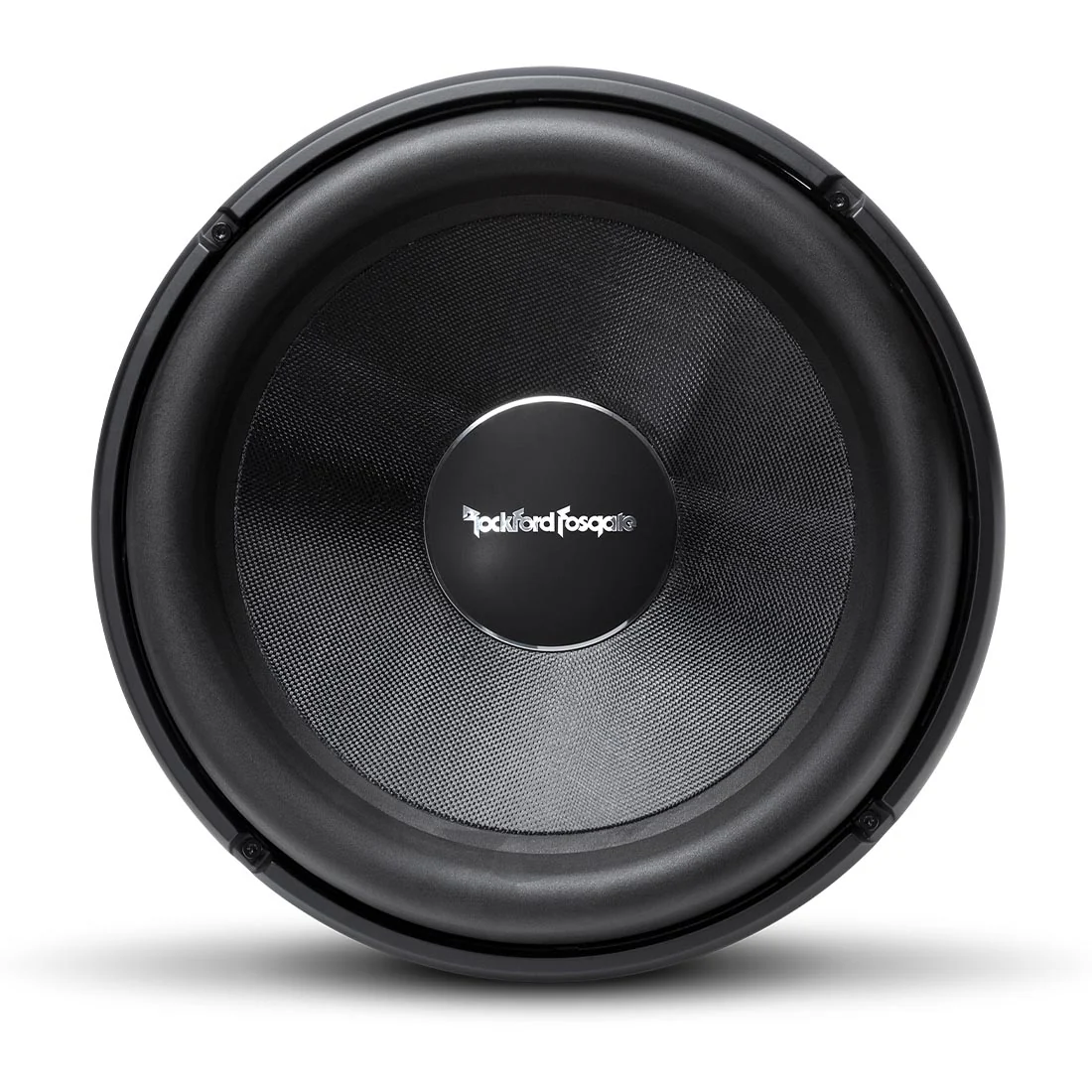

Rockford Fosgate T2S2-16 Power Series 16" 2-Ohm Component Subwoofer - Each (T2S216)

Rockford Fosgate T2S2-16 Power Series 16" 2-Ohm Component Subwoofer - Each

The Rockford Fosgate T2S2-16 delivers earth-shaking bass with 16 inches of effective radiating cone area and a single 2-ohm voice coil designed for efficient wiring. Built from the ground up, this subwoofer outperforms its predecessors while incorporating feedback from Rockford Fosgate enthusiasts, creating a truly powerful audio experience.

16-Inch Cone for Maximum Impact

Why go big? The 16-inch cone combined with the surround assembly maximizes the total effective radiating area, producing massive, room-shaking sound. Dual spiders ensure exceptional cone travel, keeping the bass clean and precise even at extreme volumes.

Engineered for Power and Durability

The T2S2-16 uses a triple stack segmented ferrite motor structure paired with the IDHS heat sink to handle up to 2500 watts RMS and 5000 watts peak. Its anodized aluminum voice coil former dissipates heat efficiently, keeping the subwoofer cool during high SPL sessions. Proprietary 8 AWG terminals ensure large gauge cables deliver full voltage to your sub, making every note hit hard.

Advanced Subwoofer Features

From the VAST™ surround increasing radiating area up to 25% to dual Nomex progressive spiders and stitched tinsel leads, the T2S2-16 is loaded with features that enhance performance and reliability. The diecast aluminum frame, vented pole piece, aluminum dustcap, and detachable trim ring all contribute to precision sound and structural strength.

Klippel Verified and CEA-2031 Compliant

Klippel verification ensures the highest level of subwoofer quality, while CEA-2031 compliance guarantees accurate power handling ratings. The T2S2-16 combines cutting-edge engineering and industry standards to deliver both power and clarity.

Specifications at a Glance

• Nominal Impedance: 2 Ohms
• Voice Coil Diameter: 4" (100 mm)
• Power Handling: 2500 Watts RMS / 5000 Watts Max
• Frequency Response: Fs 28.5 Hz, Qts 0.49
• Xmax: 34 mm
• Cone Material: Three-layer glass fiber/Aramid honeycomb/glass fiber
• Mounting Depth: 10.47 in. (266 mm)
• Shipping Weight: 100.8 lbs (45.7 kg)

With its massive cone, rugged construction, and advanced thermal management, the Rockford Fosgate T2S2-16 is built to deliver deep, precise, and powerful bass for serious audiophiles.

---

FAQs

1. What makes the Rockford Fosgate T2S2-16 different from other 16-inch subs? Its triple stack ferrite motor, dual spiders, and VAST™ surround create higher radiating area and better cone travel, giving it unmatched power and precision.
2. Can this subwoofer handle high power levels without overheating? Yes, the anodized aluminum voice coil former and IDHS heat sink efficiently dissipate heat, keeping it cool during extended high-volume use.
3. What type of impedance does the T2S2-16 have? This subwoofer features a single 2-ohm voice coil for efficient wiring and maximum power delivery.
4. Is the Rockford Fosgate T2S2-16 Klippel verified? Yes, it is Klippel verified, ensuring top-tier performance and accuracy in sound reproduction.
5. What materials are used in the cone and frame? The cone uses a three-layer glass fiber/Aramid honeycomb/glass fiber combination, while the frame is diecast aluminum with integrated heat sink fins.

---

Available Wiring Diagrams:
