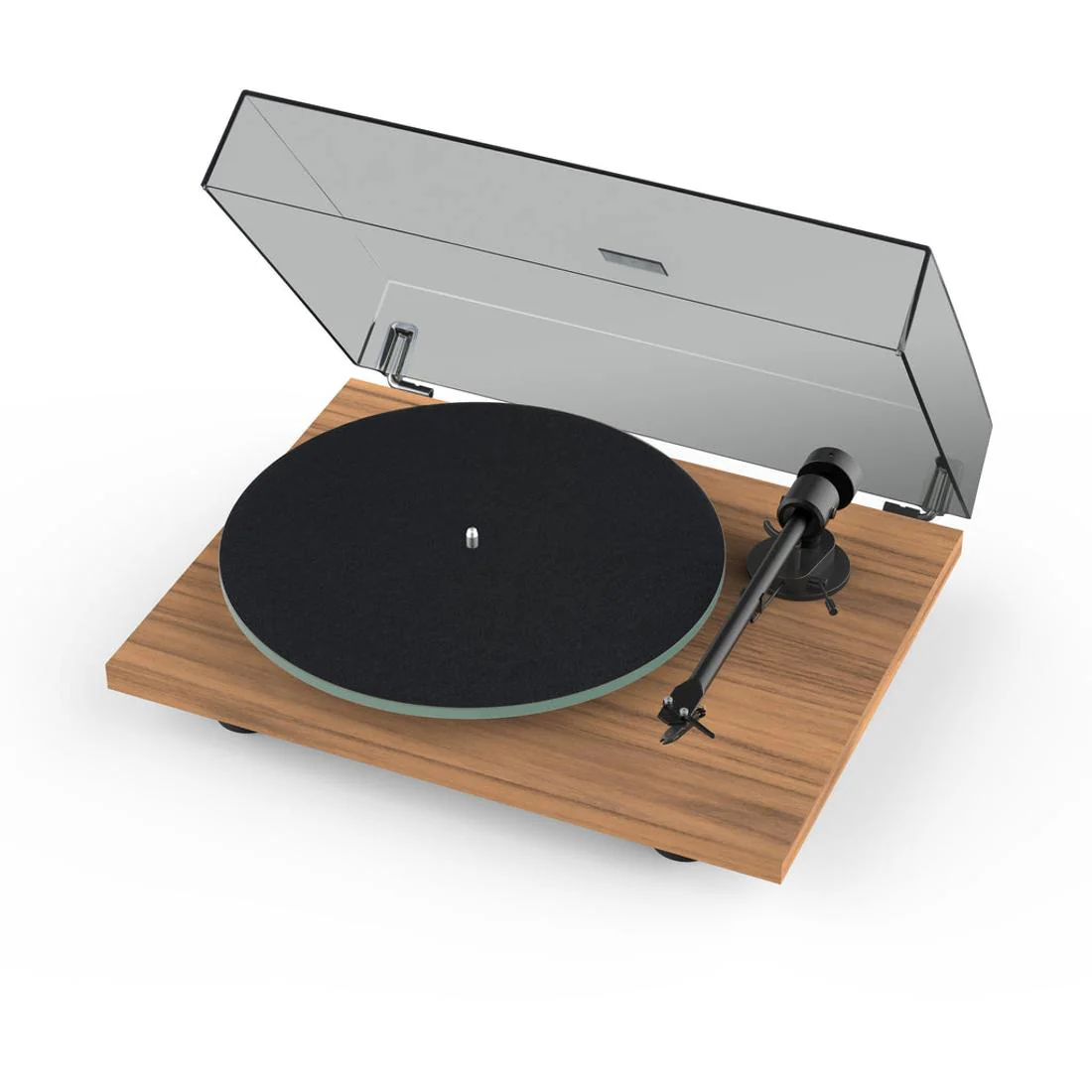

Pro-Ject T1 EVO Belt-Drive Turntable with Ortofon OM10 Cartridge

Pro-Ject T1 EVO Belt-Drive Turntable

The Pro-Ject T1 EVO is a high-quality belt-drive turntable designed to deliver clear and detailed music. It is built with heavy, anti-vibration parts to ensure your records play smoothly and accurately right out of the box.

CNC-Machined Plinth

The wooden plinth is CNC-machined and contains with no plastic components or hollow spaces. This construction limits resonance that can obscure low-level detail. Each unit is assembled by hand in Europe.

Belt-Driven Sub-Platter with Electronic Speed Change

• Quiet belt drive rotates an aluminum sub-platter, isolating the motor from the record surface.
• Electronic control switches between 33⅓ and 45 rpm; no manual belt repositioning is required.
• Measured speed variance: 0.7 % at 33 rpm, 0.6 % at 45 rpm.
• Wow and flutter: 0.25 % (33 rpm) and 0.23 % (45 rpm).

8 mm Zero-Resonance Glass Platter

An 8 mm thick blasted-glass platter adds rotational mass while remaining acoustically inert. The felt mat supplied with the turntable decouples the vinyl surface from the platter glass.

Precision Main Bearing

A stainless-steel axle running in a brass bushing is machined to within 0.001 mm tolerance, supporting smooth rotation and a 65 dB signal-to-noise ratio.

8.6-Inch One-Piece Aluminum Tonearm

• Integrated headshell design avoids removable joints that can introduce play.
• Effective length: 218.5 mm; overhang: 22 mm.
• Effective mass: 8 g.

Pre-Mounted Ortofon OM10 Cartridge

The included moving-magnet cartridge uses an elliptical diamond stylus for accurate groove tracing and extended high-frequency response. Factory installation and alignment reduce setup time.

Connectivity and Power

• RCA outputs connect to an external phono preamp or integrated amplifier with phono input.
• Included regulated 15 V DC power supply draws 4.5 W maximum.

Physical Footprint

Dimensions: 415 × 100 × 335 mm (W×H×D). Weight: 3.8 kg. The supplied dust cover protects the platter and tonearm when not in use.

Included Accessories

• Dust cover with hinges
• Felt record mat
• RCA phono cable
• Belt and sub-platter pre-installed
• 15 V DC power adapter

FAQ

• Does the T1 EVO include a built-in phono preamp?
  No. This model requires a separate preamp or an amplifier with a dedicated "Phono" input. If you want a built-in preamp, choose the T1 EVO Phono.

• How do I change between 33 rpm and 45 rpm?
  Press the electronic speed selector on the plinth. The belt remains in place; no manual adjustment is necessary.
• Is assembly required out of the box?
  The T1 can be assembled in minutes by following a few simple steps. The drive belt needs to placed on the pulley and sub-platter. The cartridge and counterweight arrive installed. Place the glass platter on the sub-platter, fit the dust cover, and connect the RCA cable and power supply.
