Kenwood eXcelon XM802-5 5-channel Powersports/Marine Amplifier (XM8025)

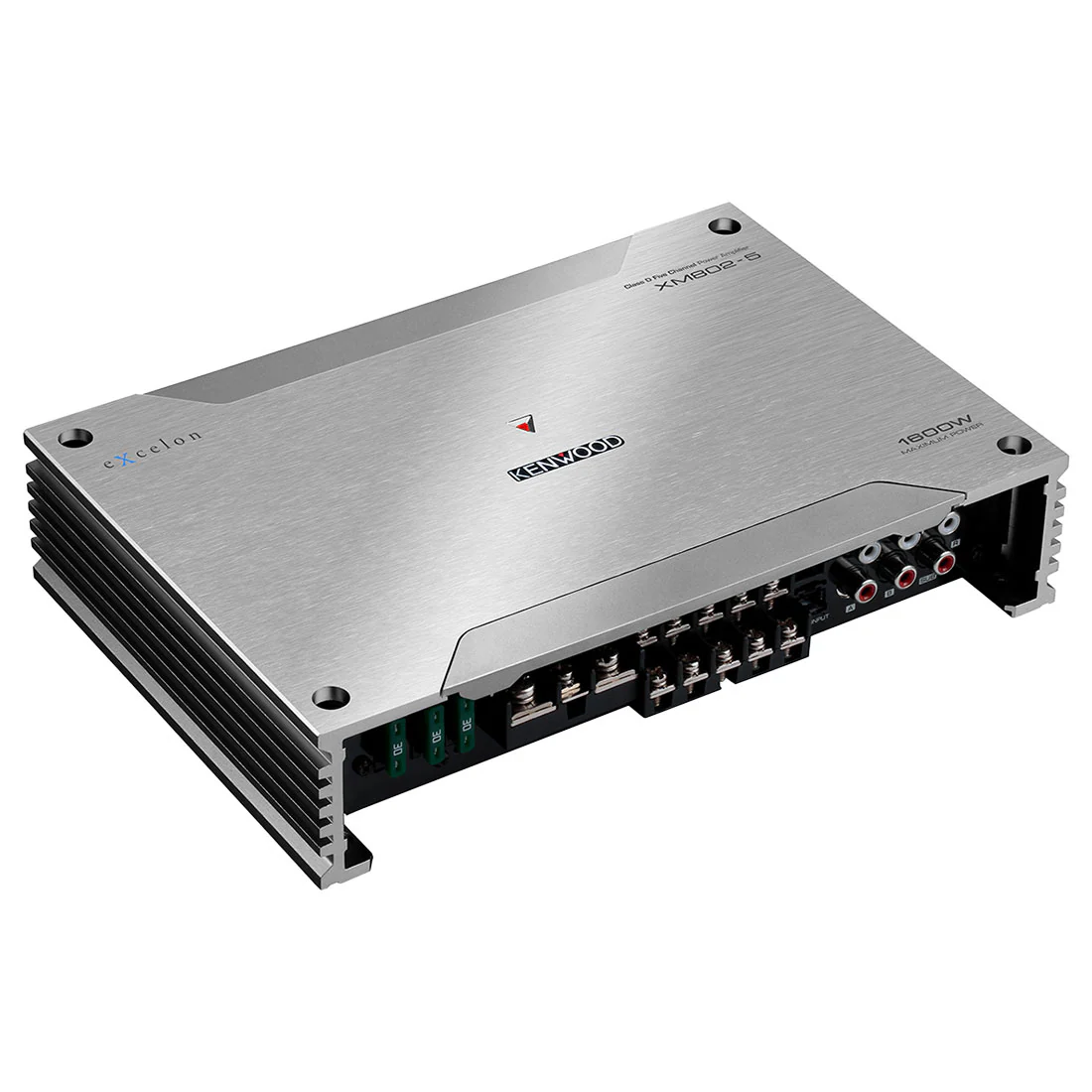

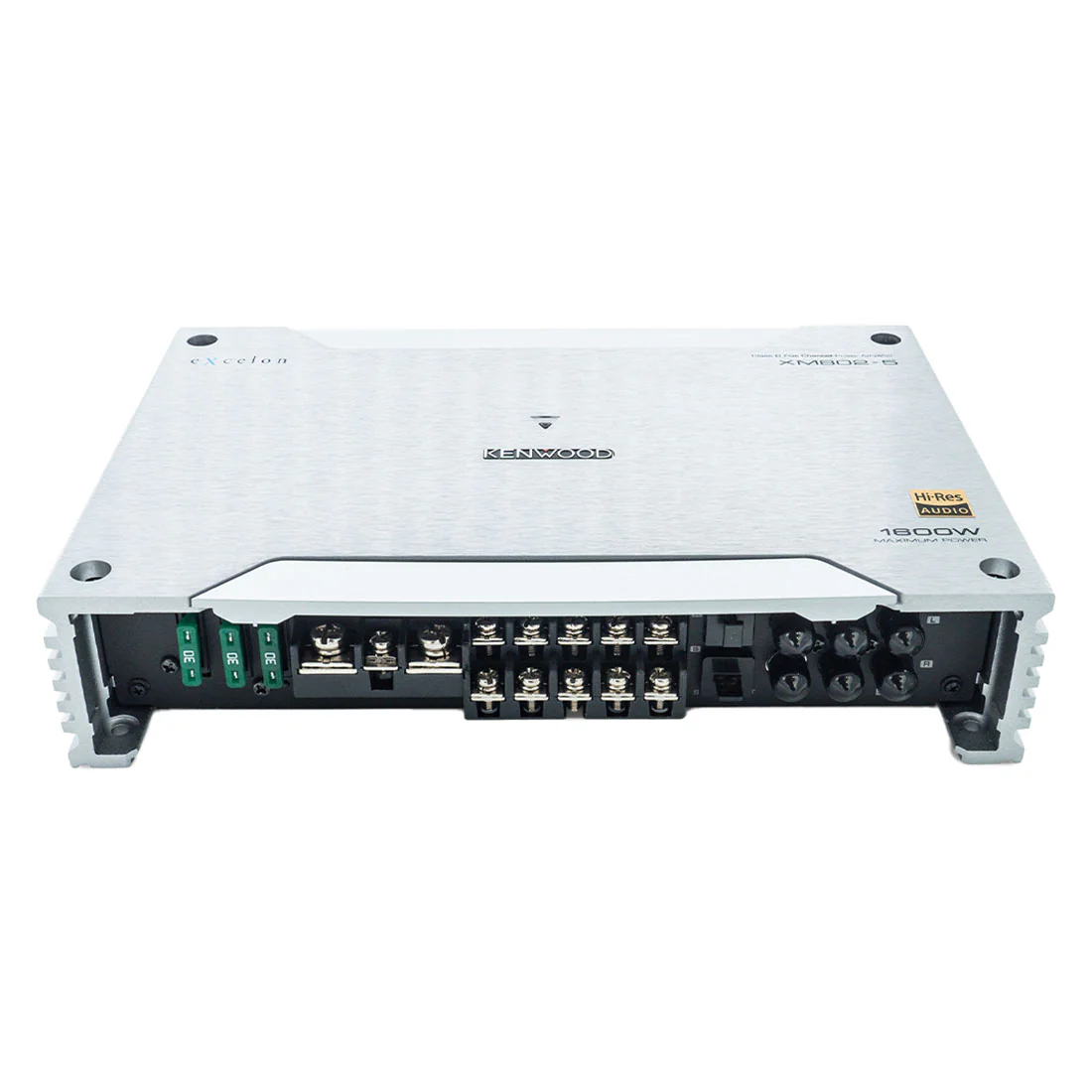

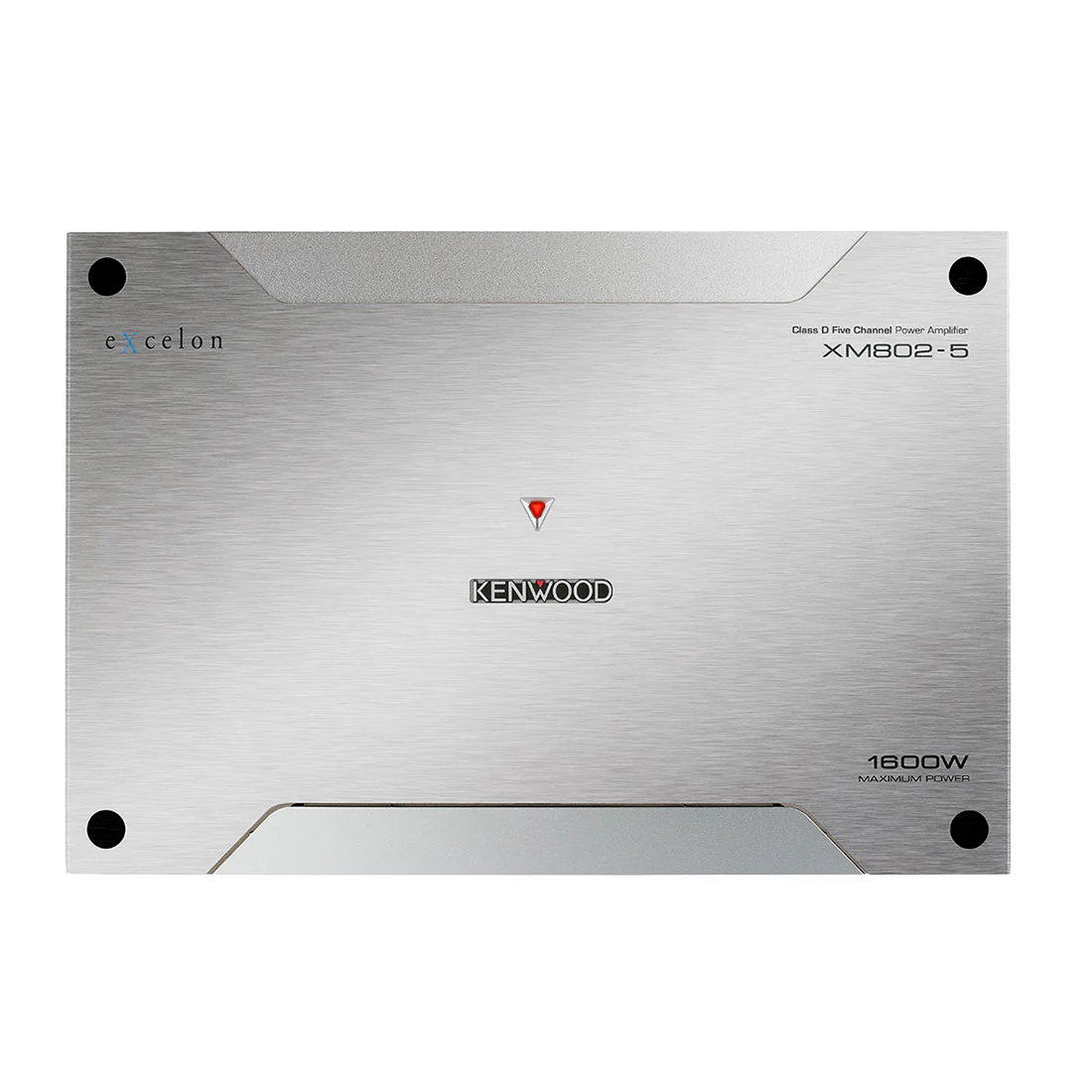

Kenwood eXcelon XM802-5 5-channel Powersports/Marine Amplifier

50 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 2 ohms Need more power for your entire system, but lack space in your boat or off-road vehicle? Kenwood's eXcelon XM802-5 five-channel amplifier delivers 50 watts RMS to each of your front and rear speakers, while sending up to 500 watts RMS to a sub, yet it'll still fit almost anywhere in your vehicle. You can also use this amp in 3-channel mode to power a pair of high-performance speakers with 150 watts RMS each, and a sub with 500 watts.

Fine-tuning included

High-and low-pass filters let you optimize the sound for your vehicle and speakers. For the subwoofer channel, a precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. An optional wired remote control lets you control your sub's level from the driver's seat.

Convenient weather-proof technology

Conformal coating protects the internal circuits from water and dirt, so the show will always go on, even through the roughest conditions on road, trail, or waterway. Class D technology ensures that this compact amp will run cool and perform reliably. The amp accepts input signals from a receiver's RCA outputs or speaker wiring, so it'll work with almost any audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box.

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

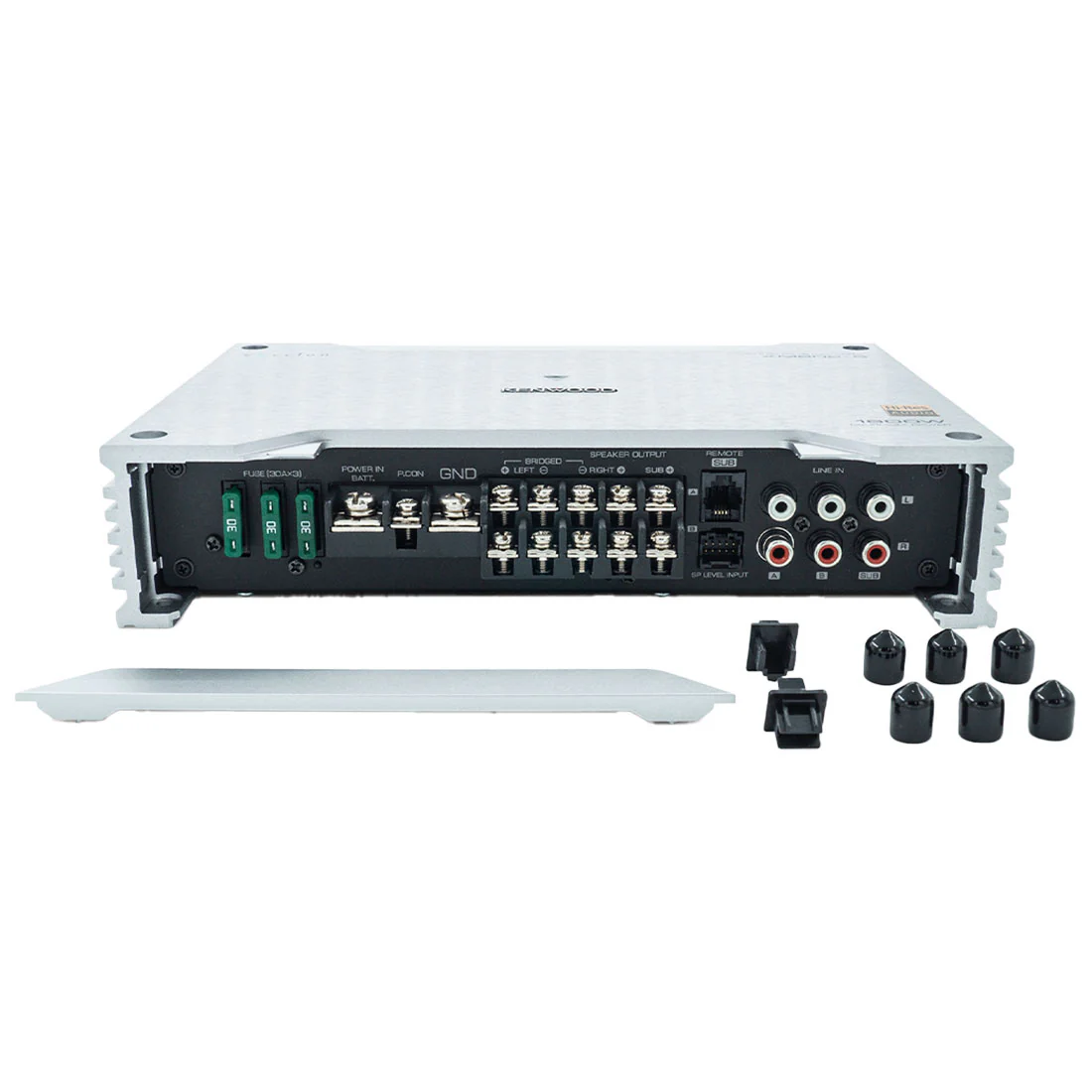

Protective Caps and Cover

All control holes, RCA, wired remote and Speaker Level input terminals are covered with caps and plastic covers to avoid from moisture and dust.

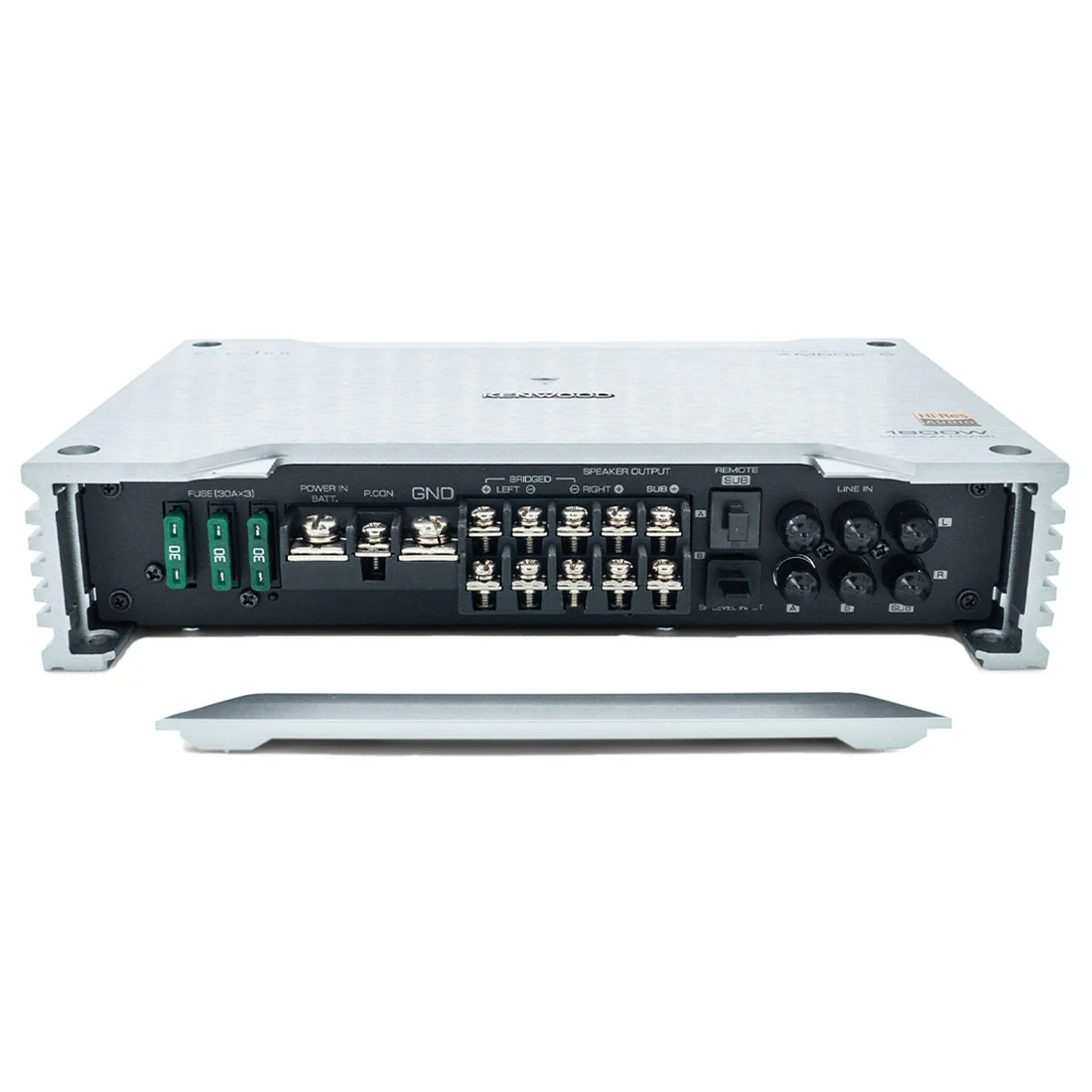

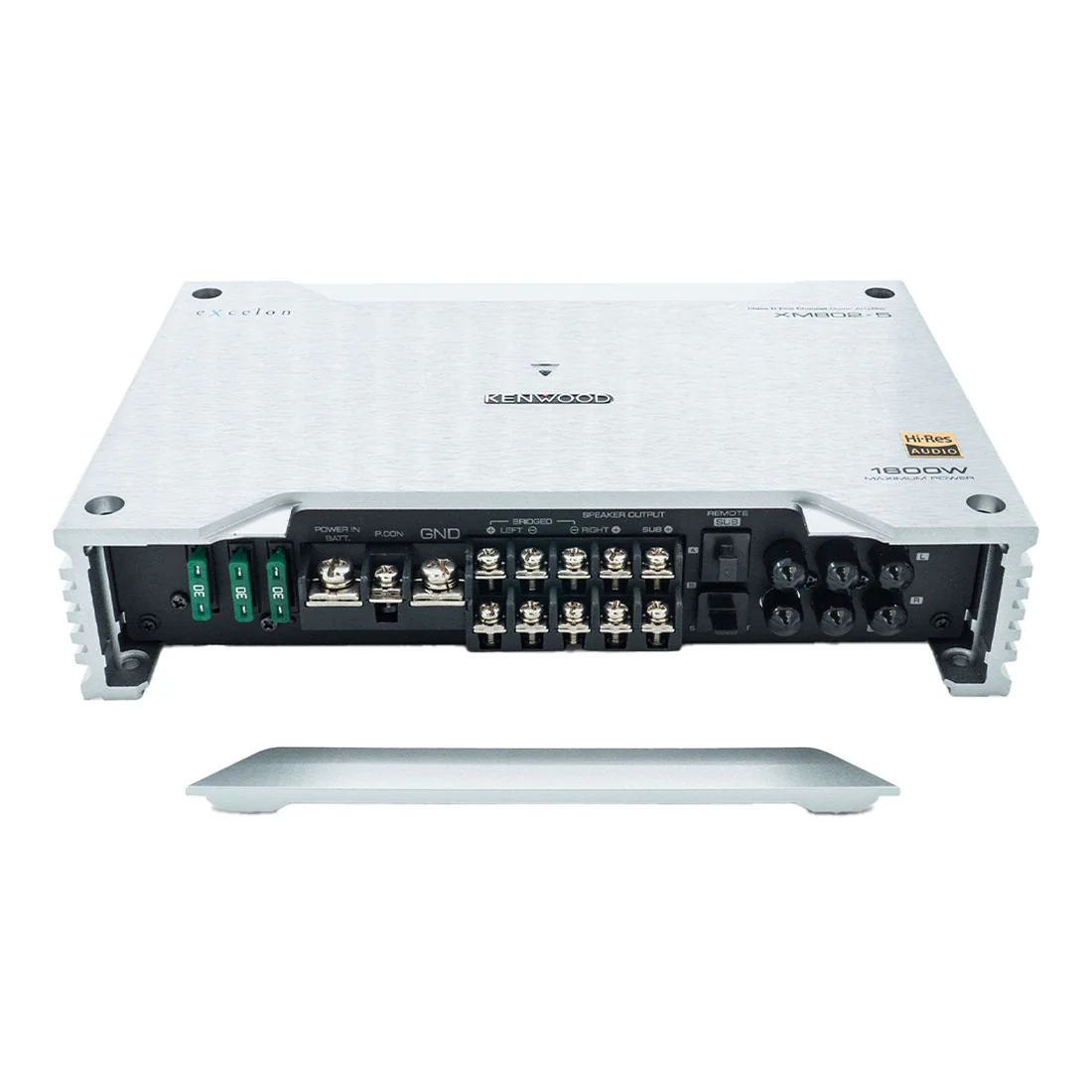

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

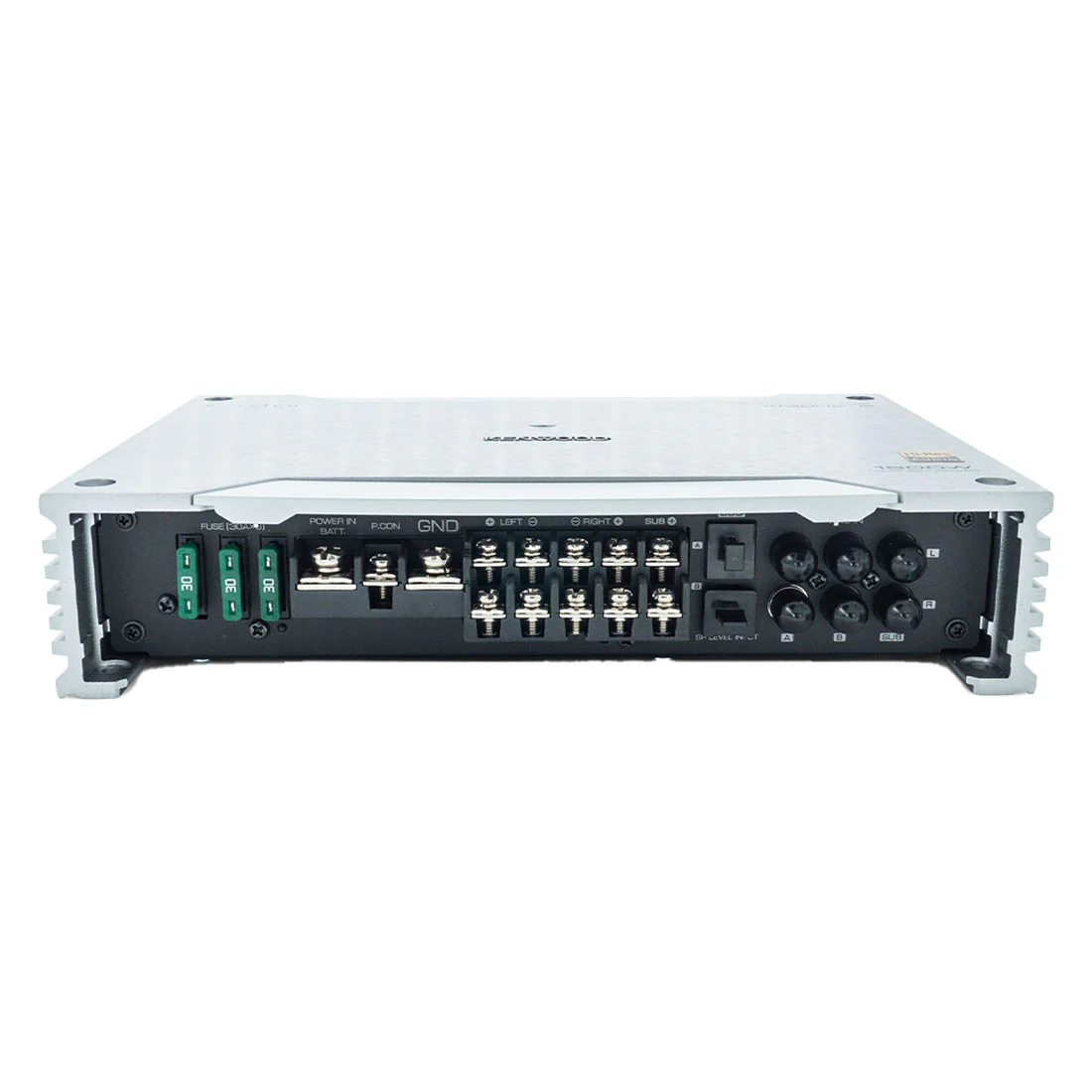

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

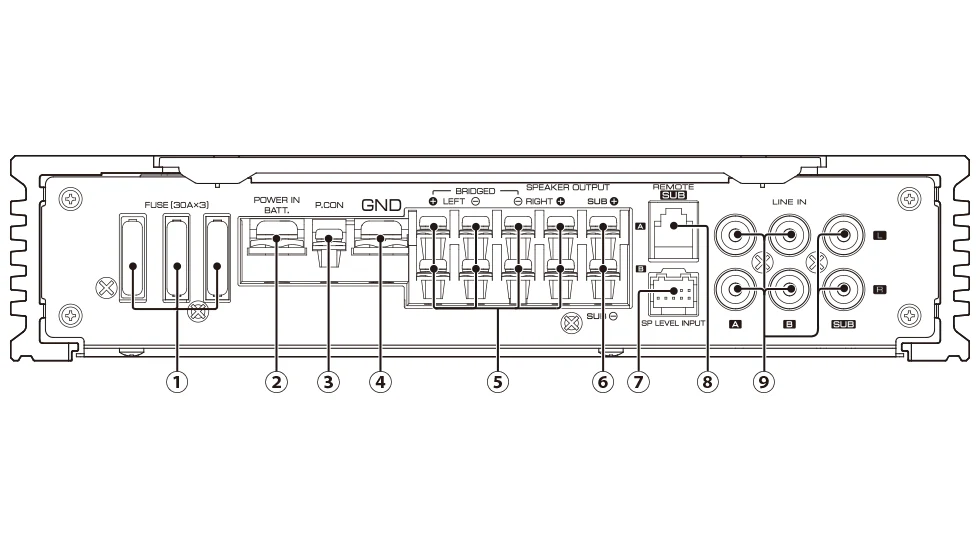

• 1- Fuse (30A x3)
• 2- Battery terminal (POWER IN BATT.)
• 3- Power control terminal
• 4- Ground terminal (GND)
• 5- Speaker output terminals (A.ch/B.ch)
• 6- Speaker output terminals (Sub)
• 7- Speaker level input terminal
• 8- Remote terminal (Optional Remote Controller for Sub)
• 9- Line in terminal (A.ch/B.ch/Sub)

Variable Gain Circuit

Improved Signal to Noise Ratio

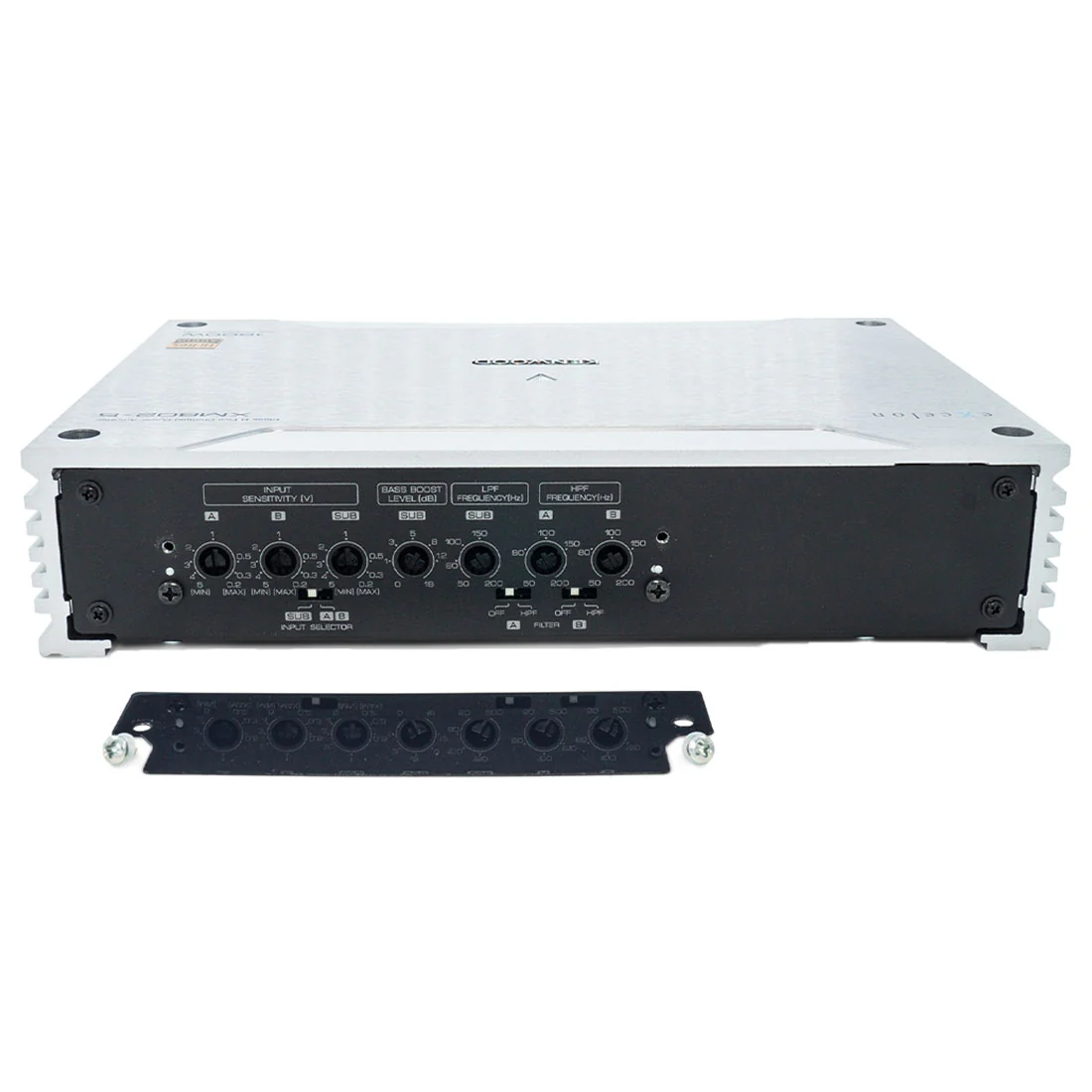

• 10- Input sensitivity control(A.ch/B.ch/Sub)
• 11- Input selector switch
• 12- Bass Boost Level control (Sub)
• 13- LPF frequency control (SUB)
• 14- Filter switch (A.ch/B.ch)
• 15- HPF frequency control (A.ch/B.ch)

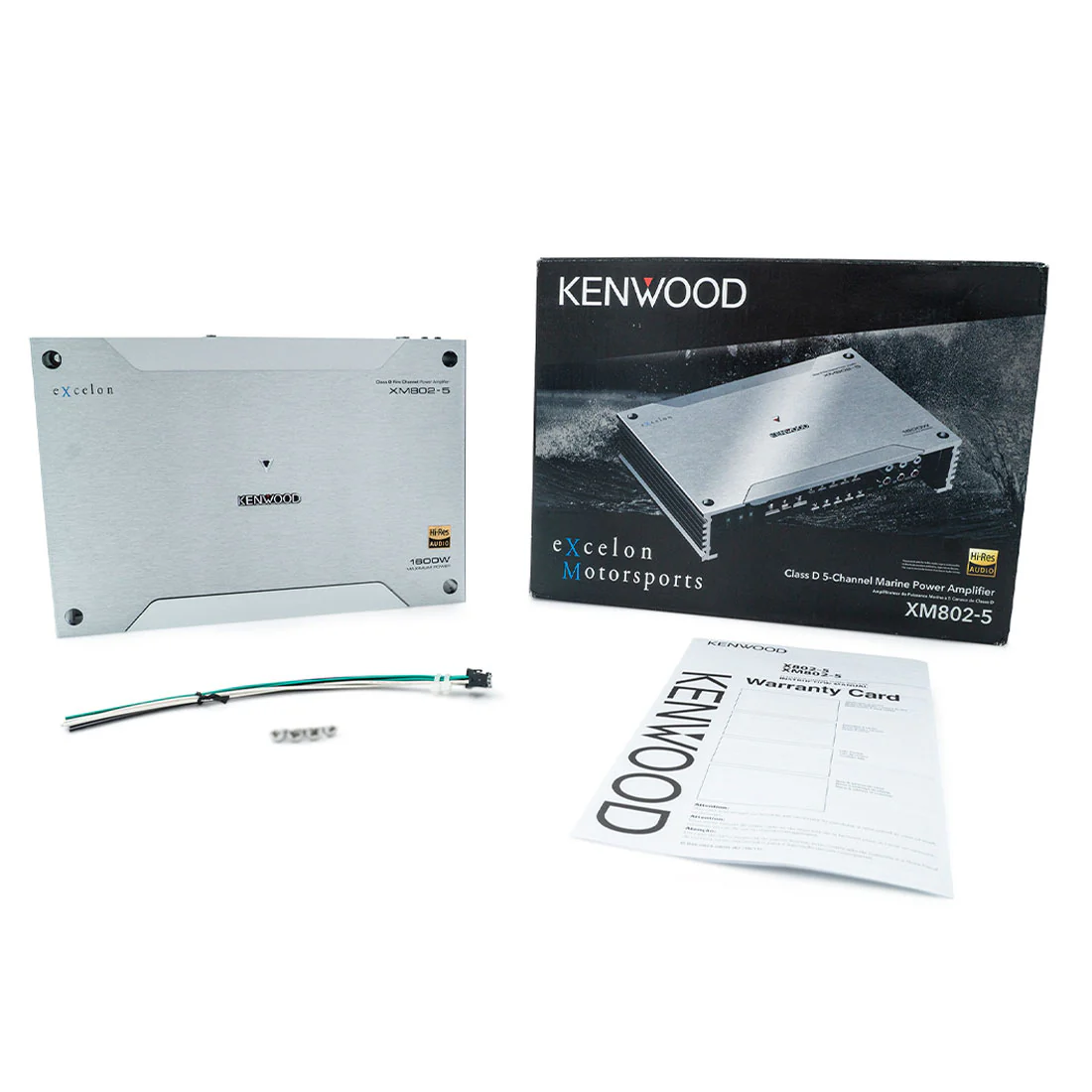

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume. *Control unit does not support conformal coating or water-proof.
