JL Audio Home Audio IWSv2-SYS-213 Dual 13.5" In-Wall v2 Powered Subwoofer System (IWSv2SYS213)

JL Audio Home Audio IWSv2-SYS-213 Dual 13.5" In-Wall v2 Powered Subwoofer System

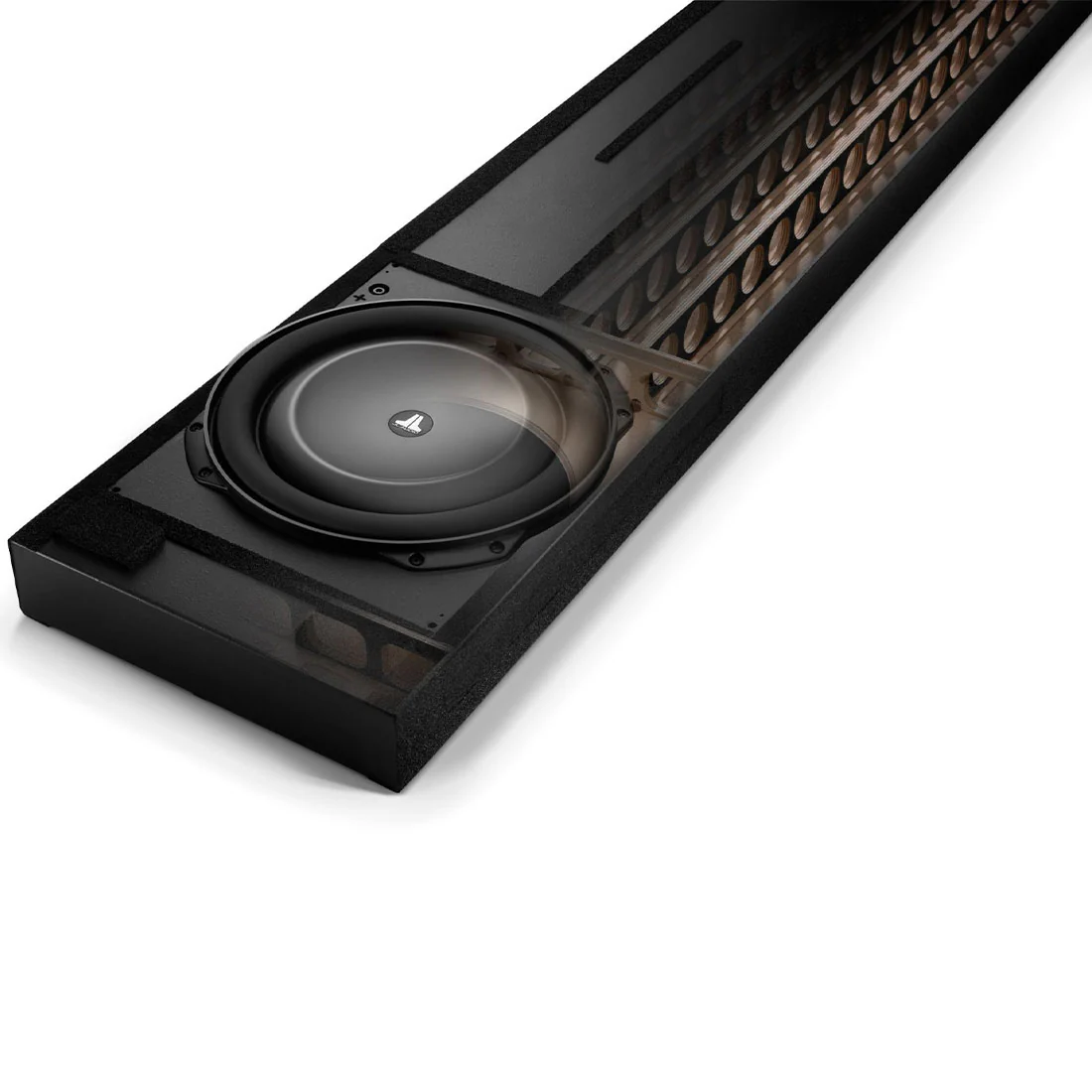

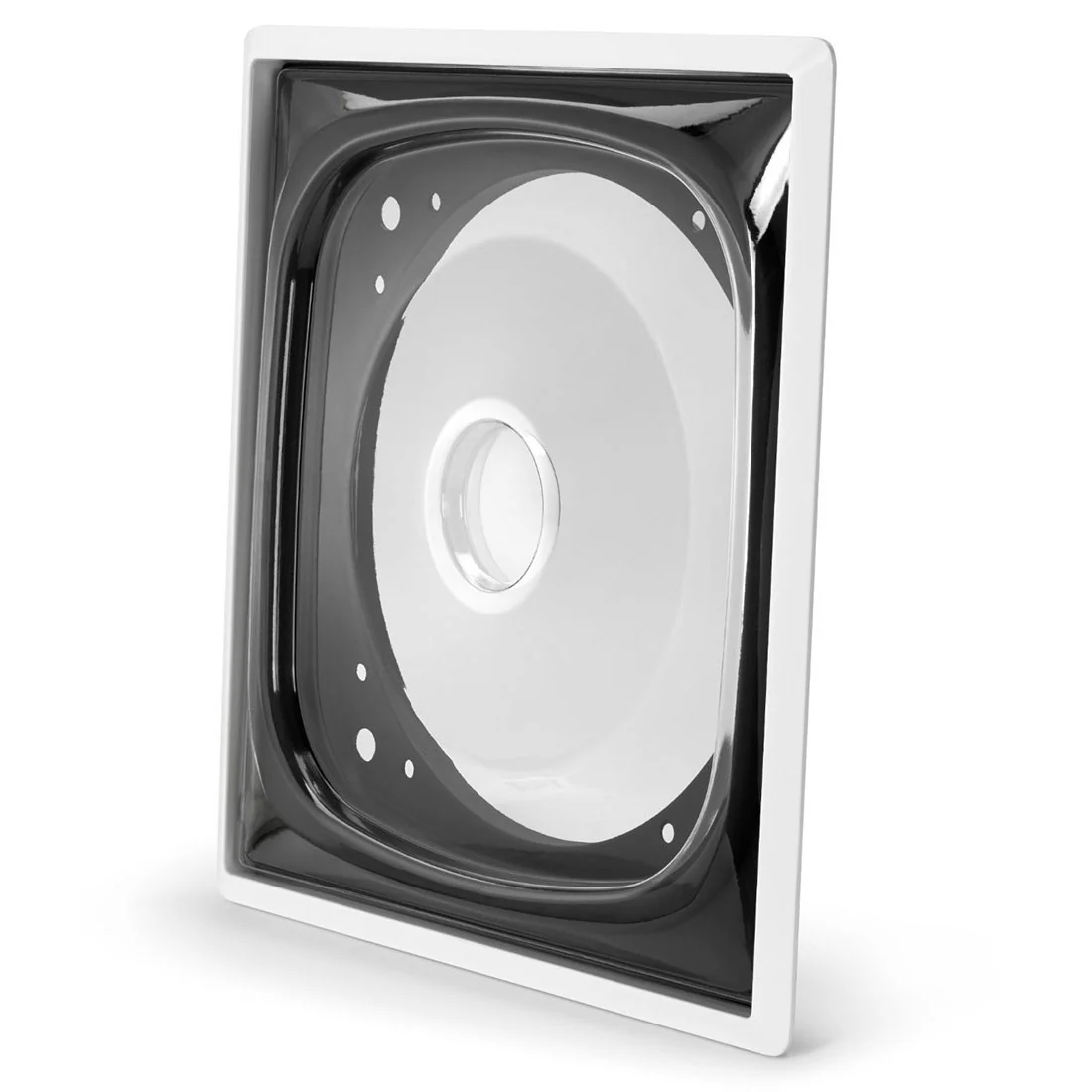

In-Wall Subwoofer System with Dual 13.5-inch Subwoofers, 2000 watts The same minds that engineered JL Audio’s reference-grade Fathom and Gotham powered subwoofers have created an amazing in-wall subwoofer solution, centered on a pair of innovative, thin-line drivers with groundbreaking technologies. Housing these exotic drivers are two critically engineered enclosures with a unique floating mount design to minimize wall excitation. The enclosures feature extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in the system. The IWSv2-SYS-213 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 2 kW of clean power, and armed with serious processing features, including our latest Digital Automatic Room Optimization system. There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom.

IWSv2-SYS-213 Features

• The IWSv2-SYS-213 is available to fit a variety of 2" x 4" and 2" x 6" wall studs.
• Enclosure Finish: Flat Black (hidden from view when installed)
• Grille finish: Primer White (paintable)
• Enclosure Construction: CNC-Cut Birch Plywood

2 x 4-inch Wall Stud Enclosure Physical Specifications

Wall Cavity Width (W)	Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H)	Minimum: 93.625 in / 2,378 mm
Width (W)	13.75 in / 349 mm
Height (H)	70 in / 1,778 mm
Depth (D)	2.94 in / 75 mm
Note: Enclosure dimensions do not include vibration-dampening padding.

2 x 6-inch Wall Stud Enclosure Physical Specifications

Wall Cavity Width (W)	Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H)	93.625 in / 2,378 mm
Width (W)	13.75 in / 349 mm
Height (H)	55 in / 1,397 mm
Depth (D)	4.70 in / 119 mm
Note: Enclosure dimensions do not include vibration-dampening padding.

Amplifier Physical Specifications
