JL Audio Home Audio IWS-SYS-208 Dual 8" In-Wall Powered Subwoofer System (IWSSYS208)

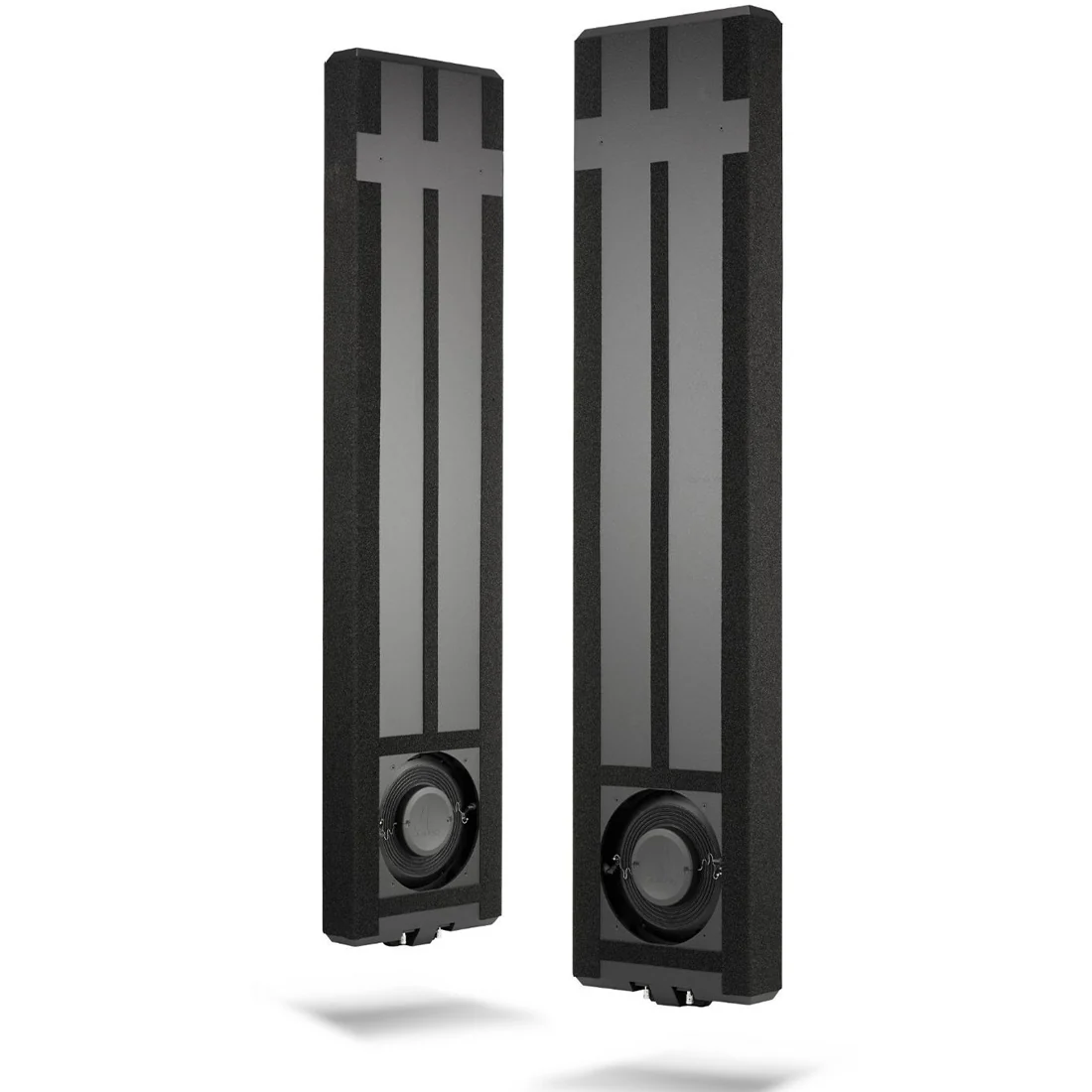

JL Audio Home Audio IWS-SYS-208 Dual 8" In-Wall Powered Subwoofer System

JL Audio Home Audio IWS-SYS-208 In-Wall Subwoofer System with Dua8-inch Subwoofer, 600 watts

Born from the same groundbreaking technologies used to develop our free-standing powered subwoofers, the Fathom IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments. The 8-inch Fathom IWS systems are smaller and easier to integrate than our larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles.

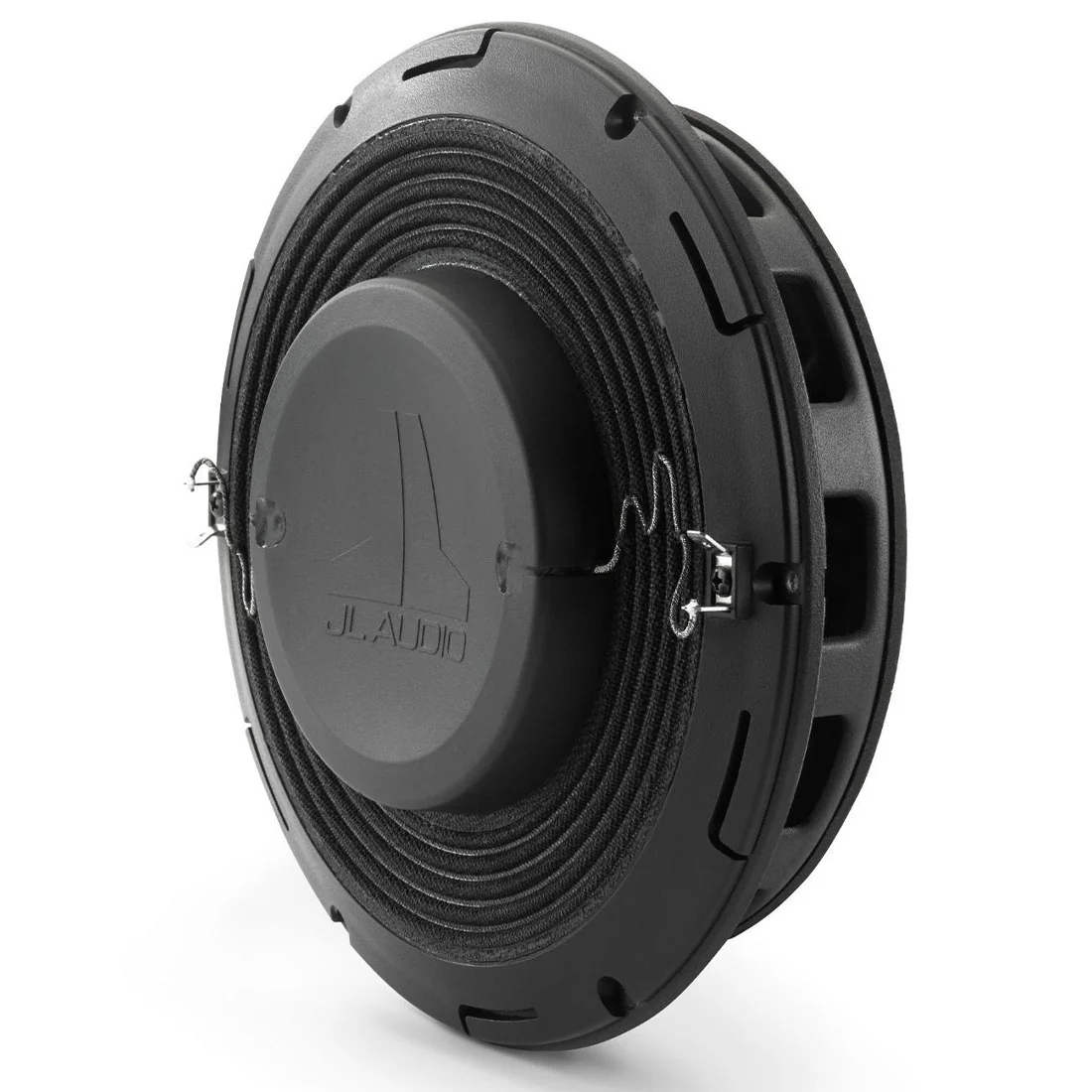

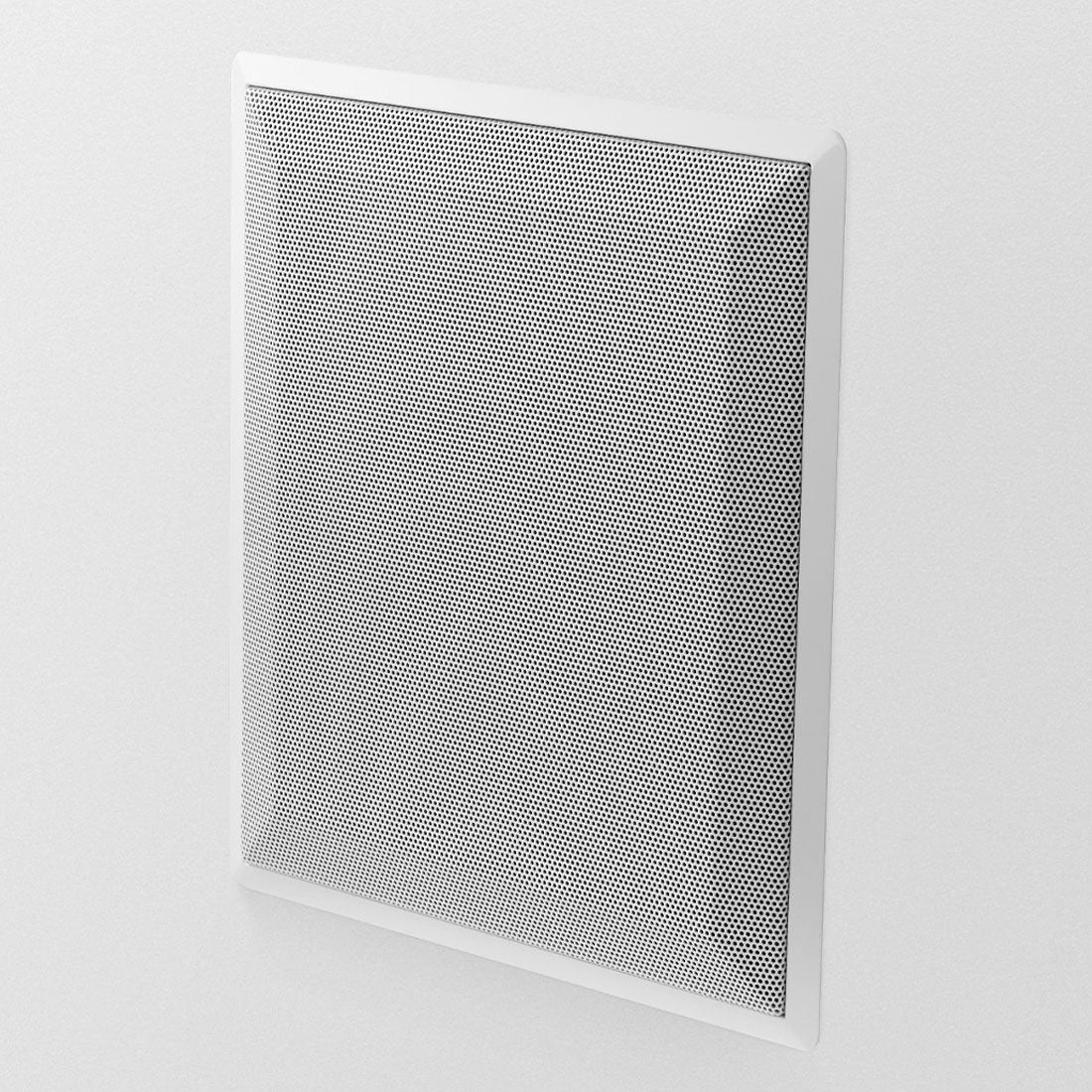

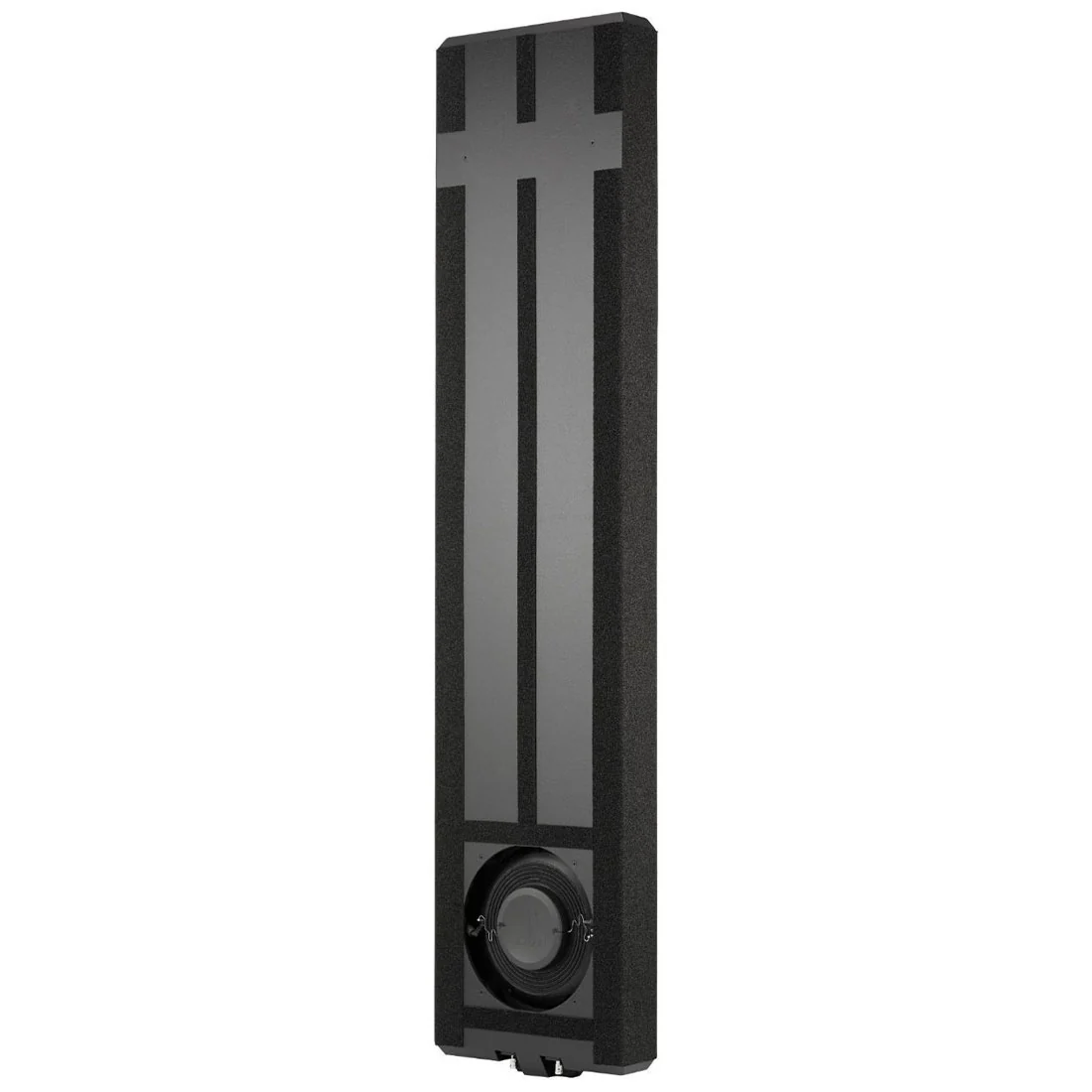

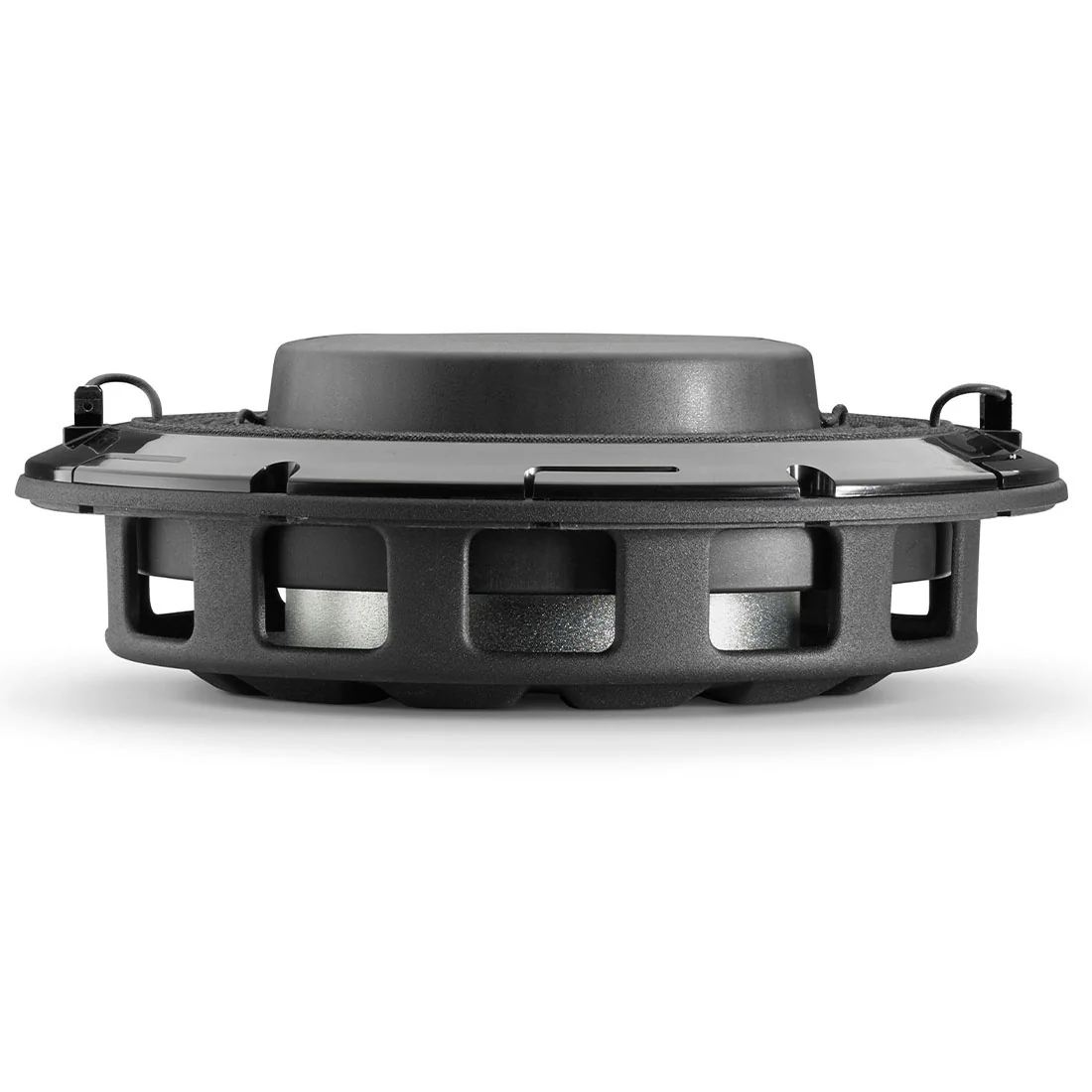

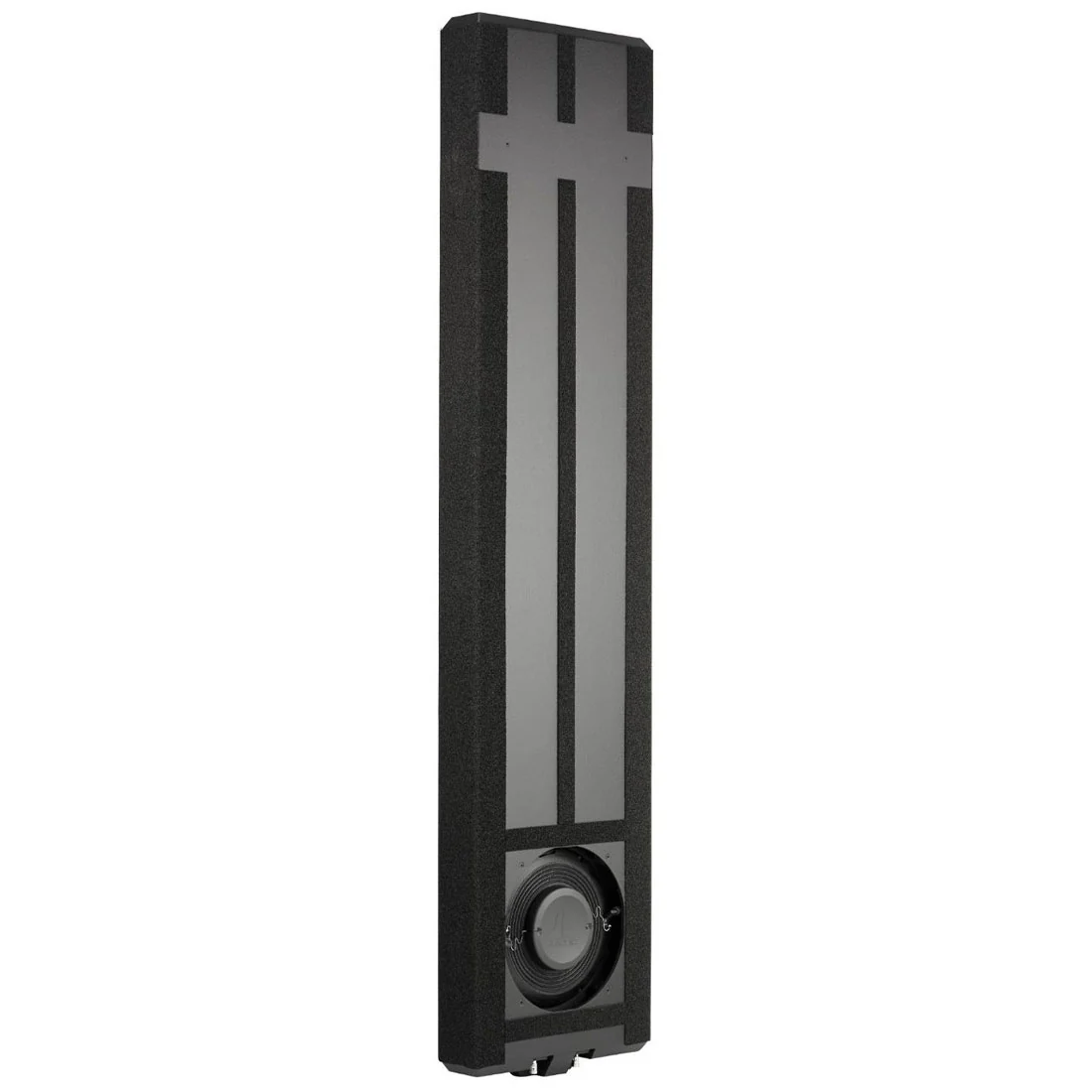

These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall. The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom IWS products.

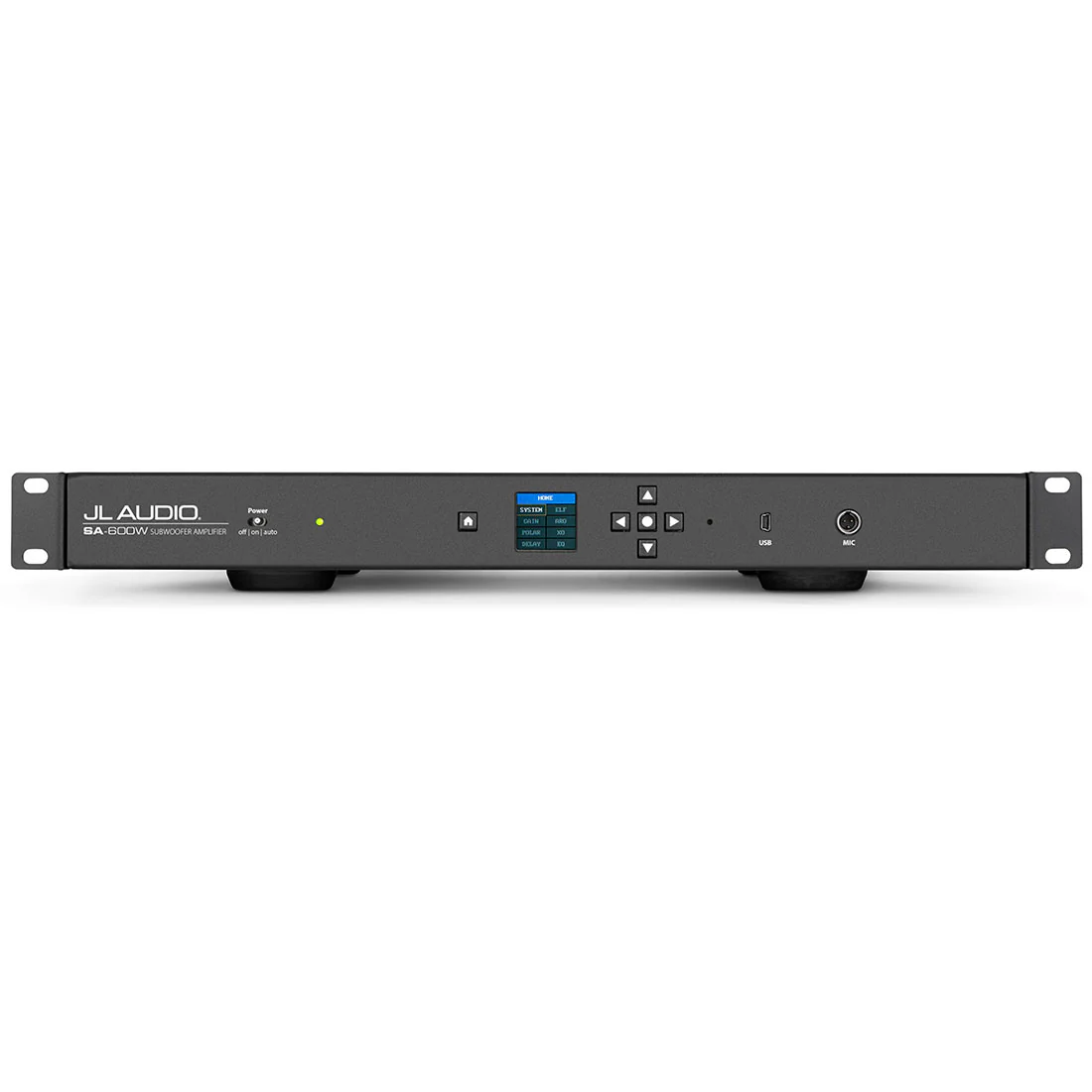

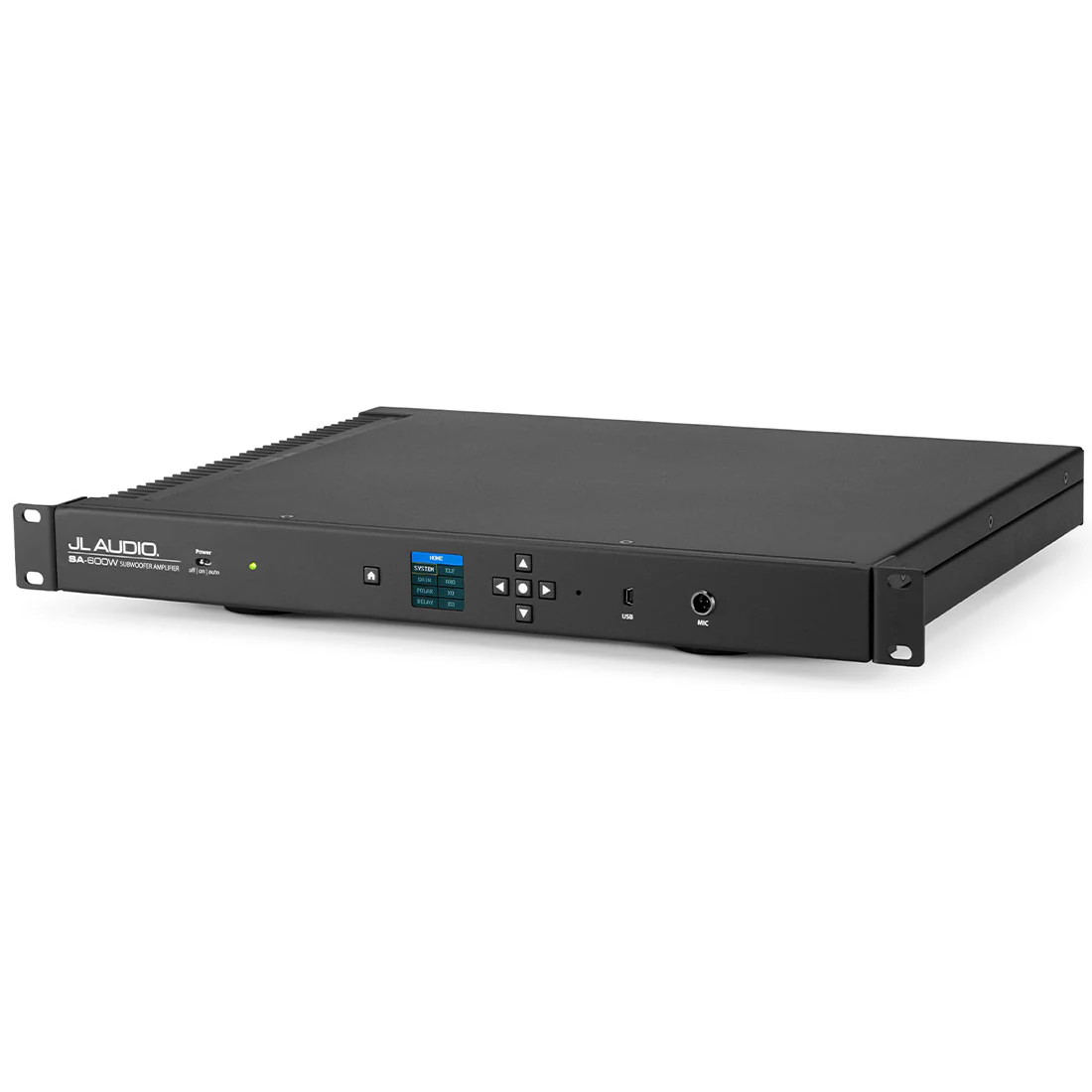

Each 8-inch Fathom IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

Product Highlights

• The IWS-208 System fits 2" x 4" wall studs or larger.
• Enclosure Finish: Flat Black (hidden from view when installed)
• Grille finish: Primer White (paintable)
• Enclosure Construction: CNC-Cut Birch Plywood

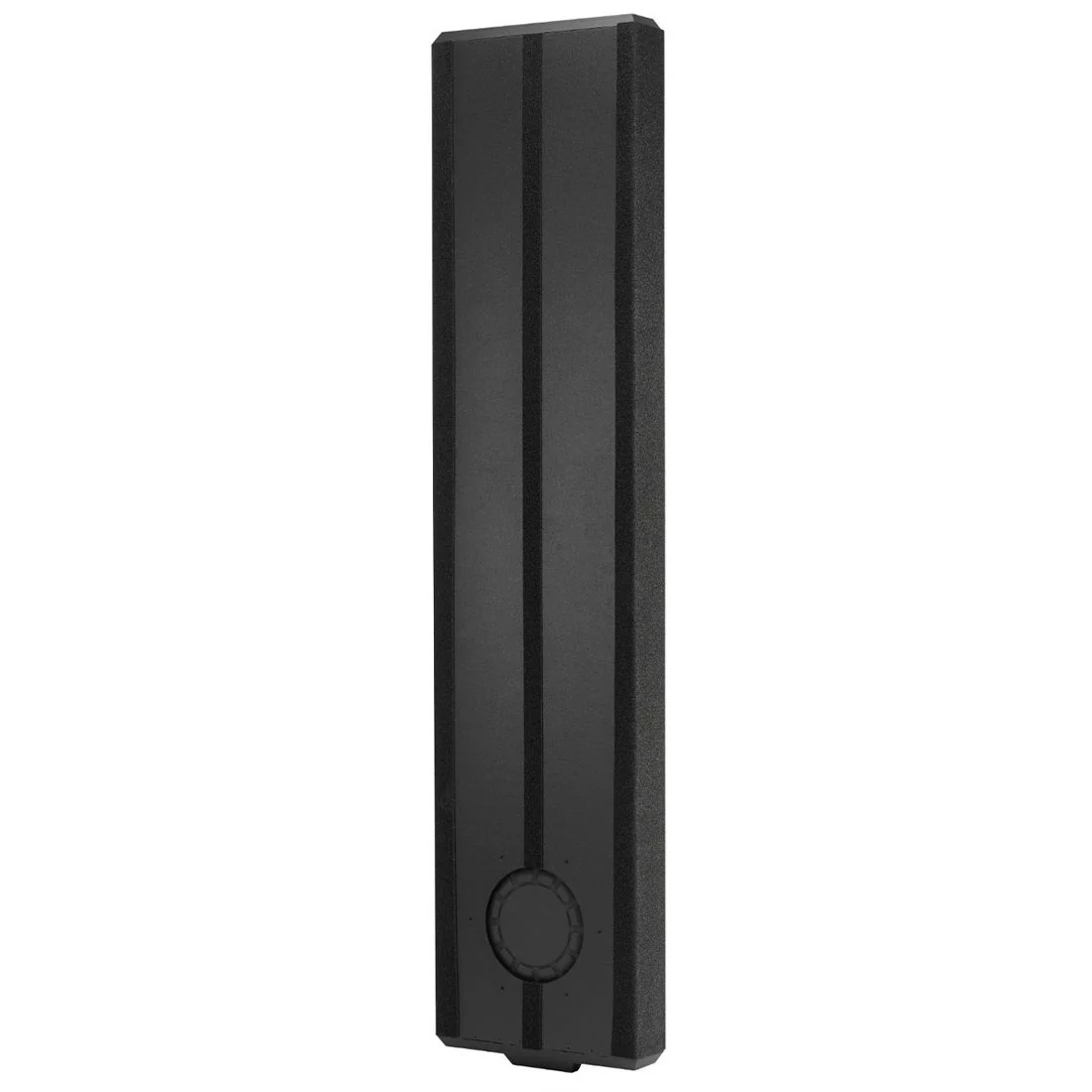

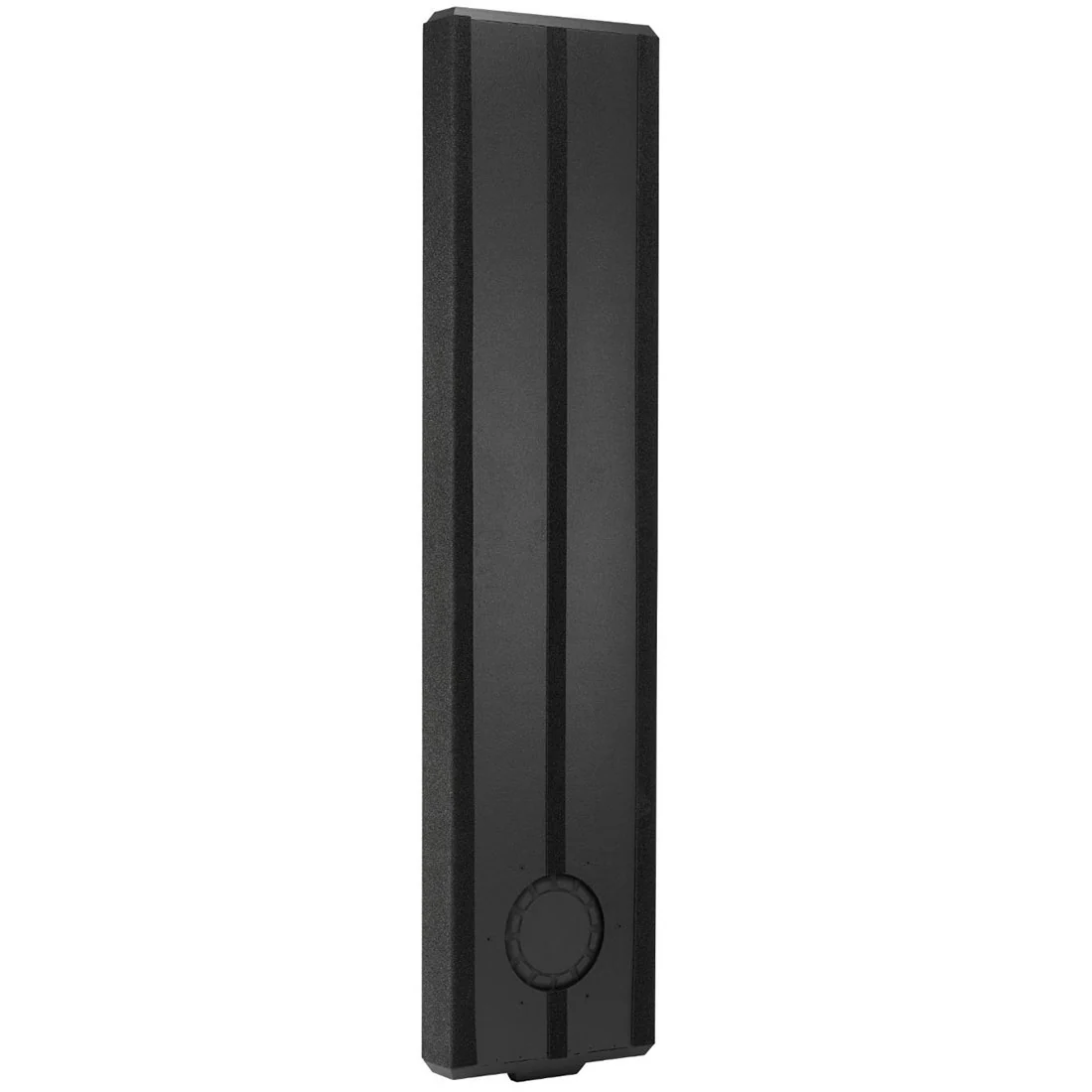

2 x 4-inch Wall Stud Enclosure Physical Specifications

Wall Cavity Width (W)	Minimum: 14.375 in / 365 mm Maximum: 15.500 in / 394 mm
Wall Cavity Height (H)	Minimum: 75 in / 1,905 mm
Width (W)	14 in / 355 mm
Height (H)	61.26 in / 1,565 mm
Depth (D)	3.25 in / 83 mm
Note: Enclosure dimensions do not include L-brackets or vibration-dampening padding.

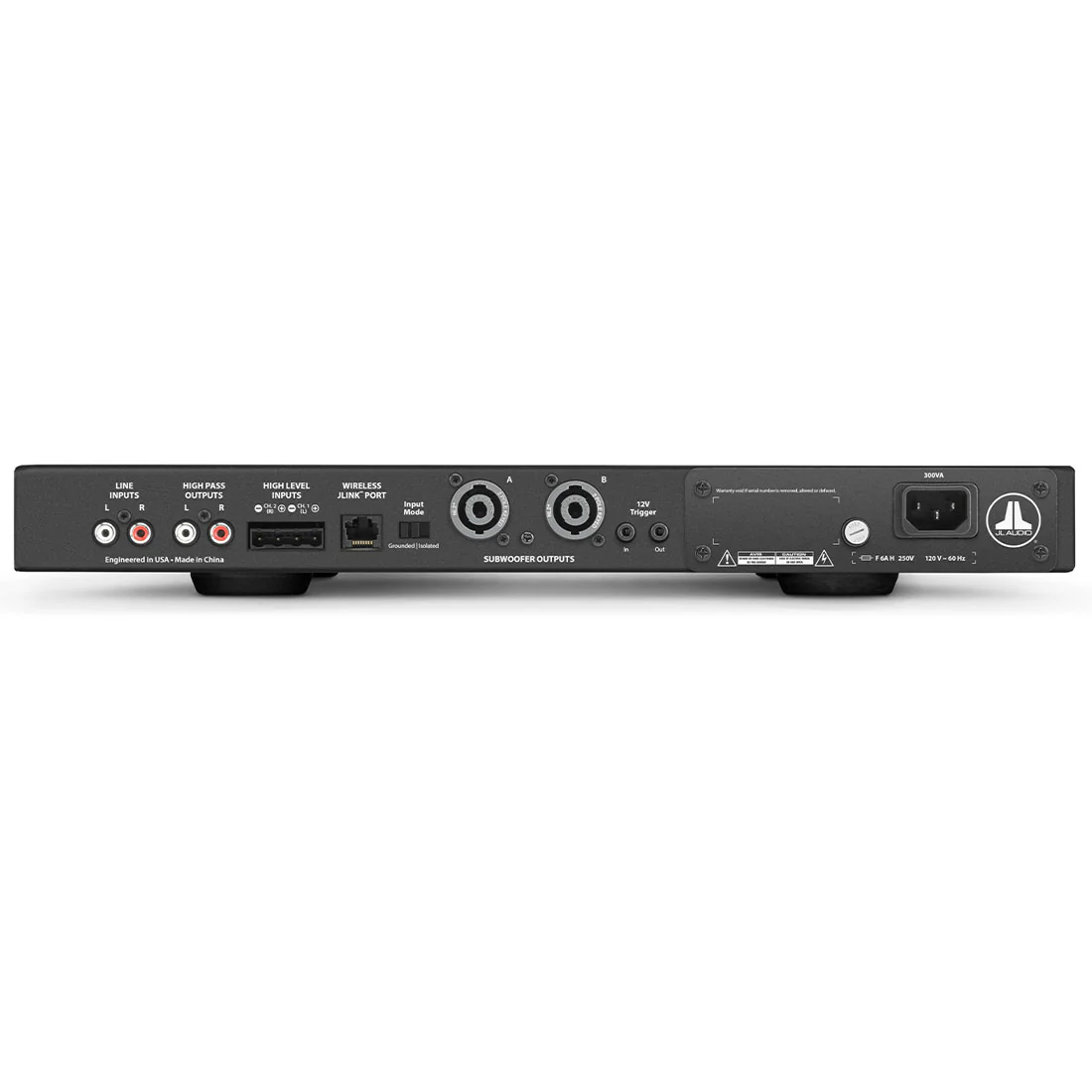

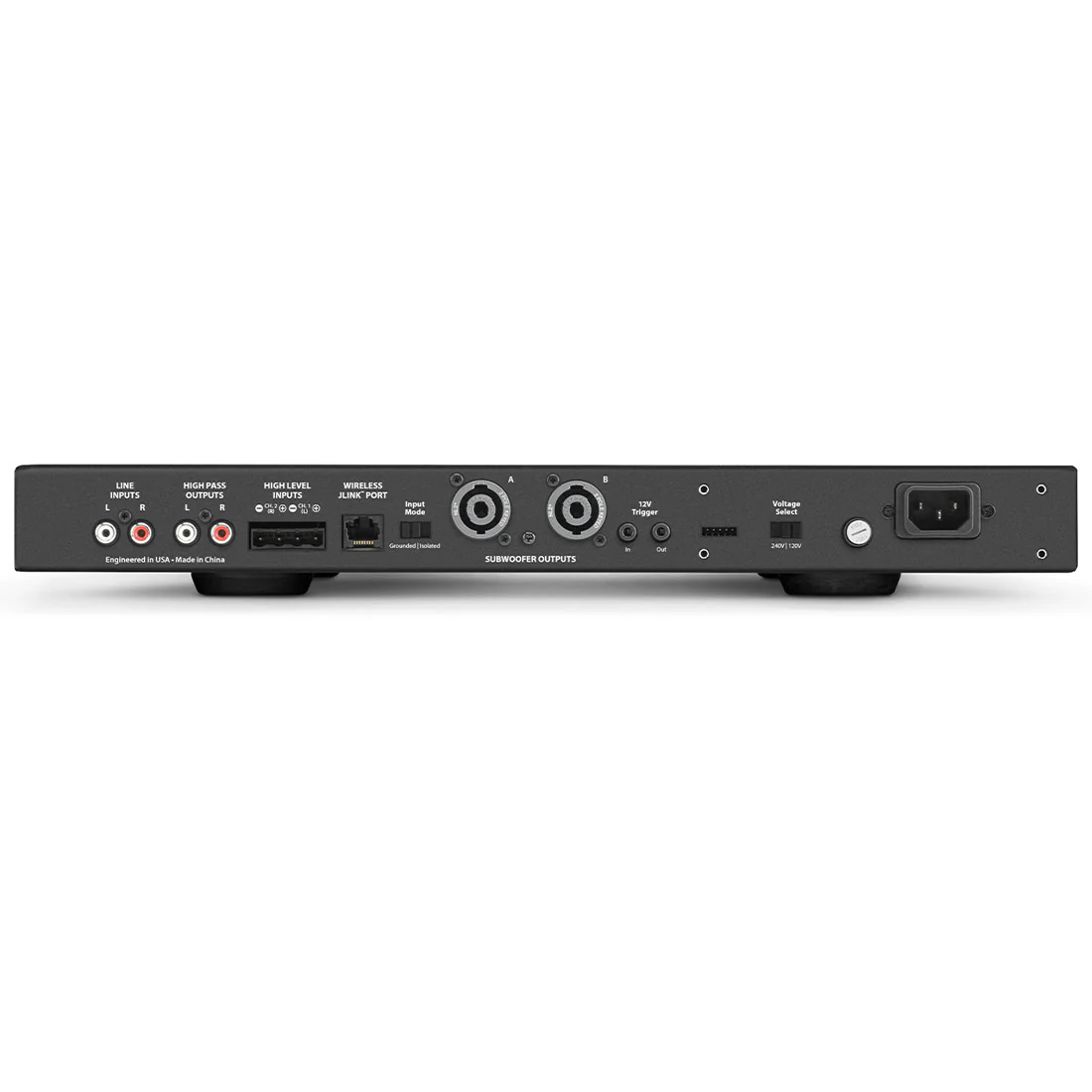

Amplifier Physical Specifications

Width (W)	16.84 in / 428 mm
Height (H)	1.75 in / 44 mm
Depth (D)	13.63 in / 346 mm
Net Weight	13.5 lb / 6.12 kg
Note: Single Rack Unit - Amplifier Height Dimensions do not include feet.

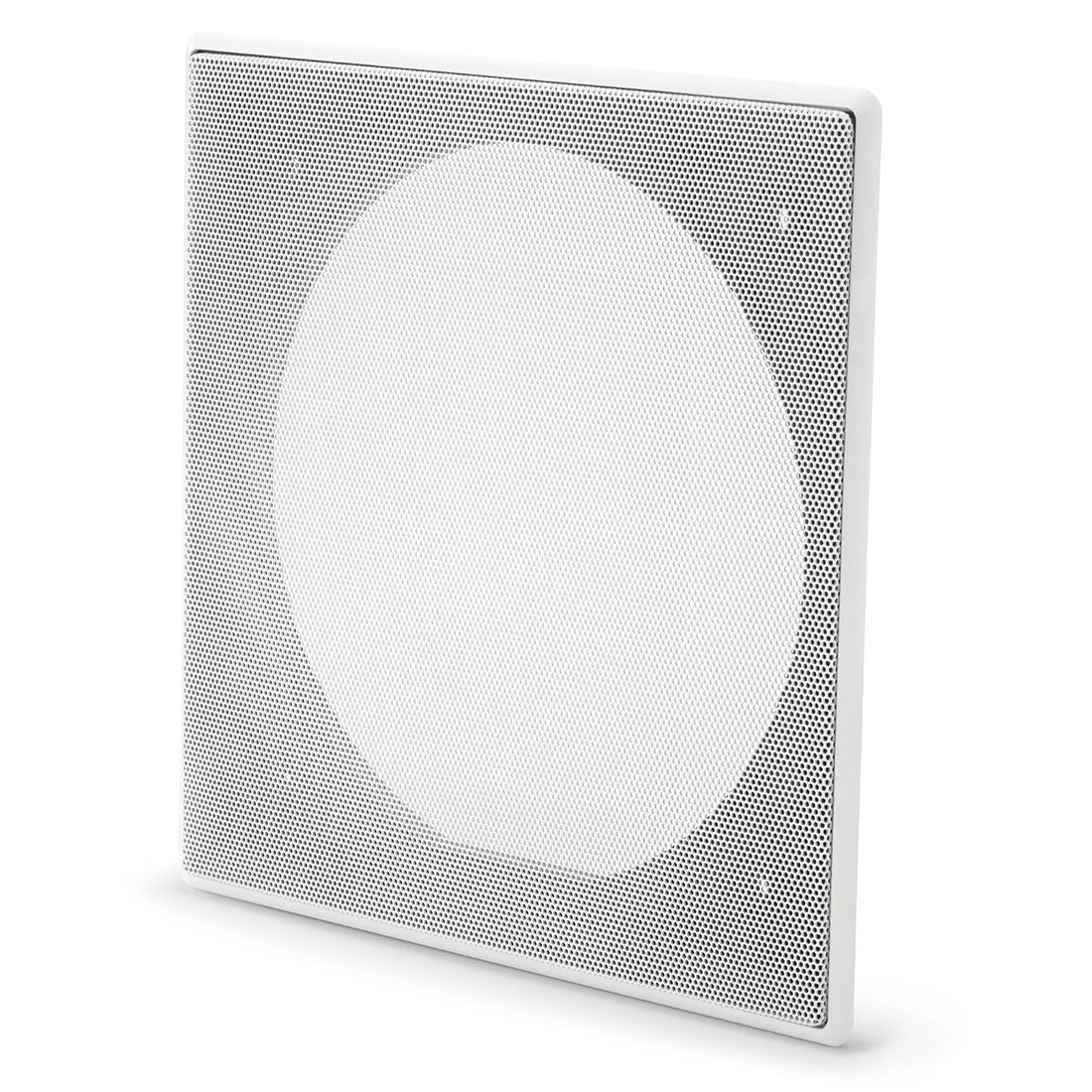

Grille Physical Specifications

Grille Height (H)	10.50 in / 267 mm
Wallboard Thickness Compatibility	0.5 in to 1.75 in / 13 mm to 44 mm
Grille Width (W)	10.50 in / 267 mm
Wall Opening Height (H)	9.75 in / 248 mm
Wall Opening Width (W)	9.75 in / 248 mm
