JL Audio Home Audio ICS-SYS-208 Dual 8" In-Ceiling Powered Subwoofer System (ICSSYS208)

JL Audio Home Audio ICS-SYS-208 Fathom Dual 8" In-Ceiling Powered Subwoofer System

JL Audio ICS-SYS-208 - In-Ceiling Subwoofer System with Dual 8-inch Subwoofer, 600 watts

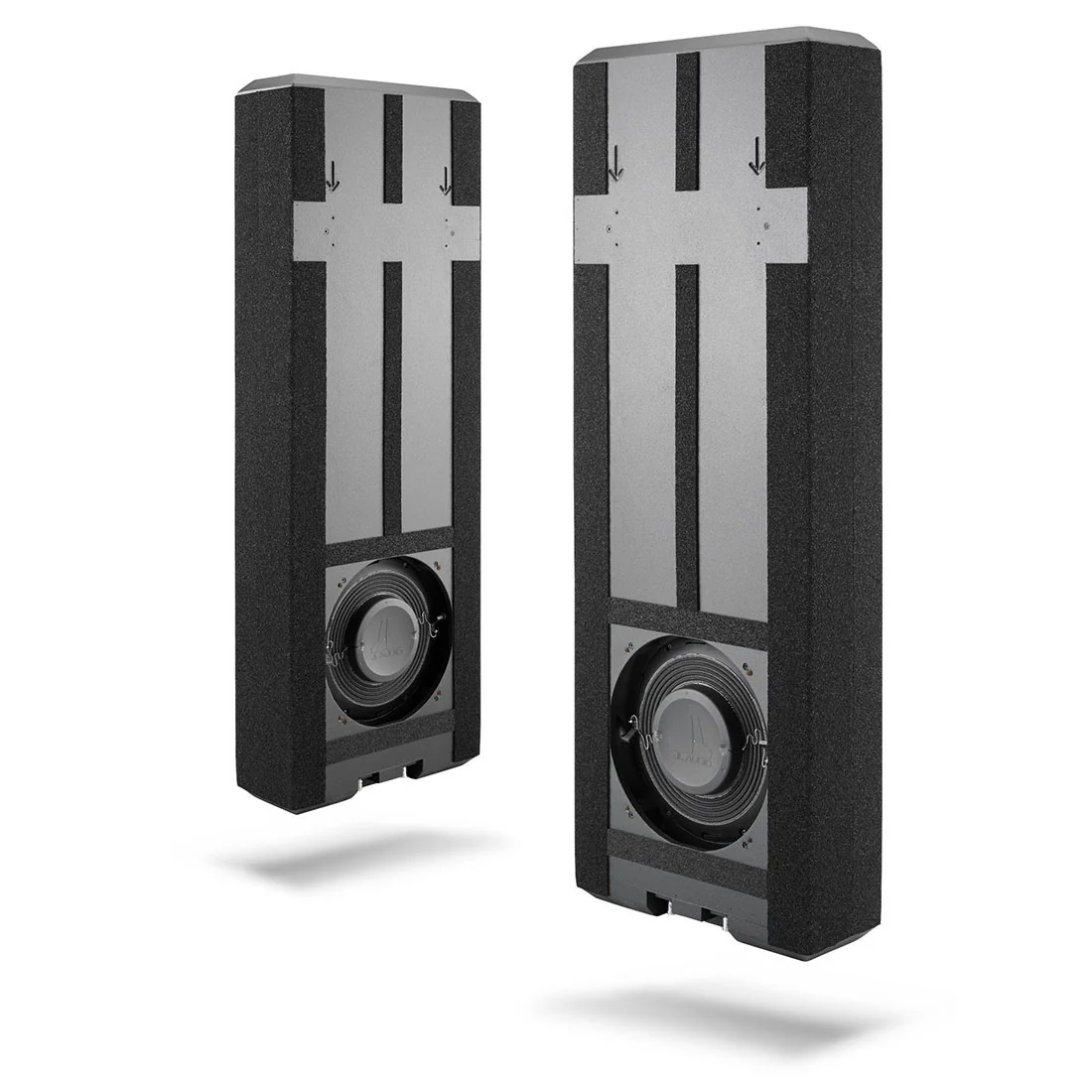

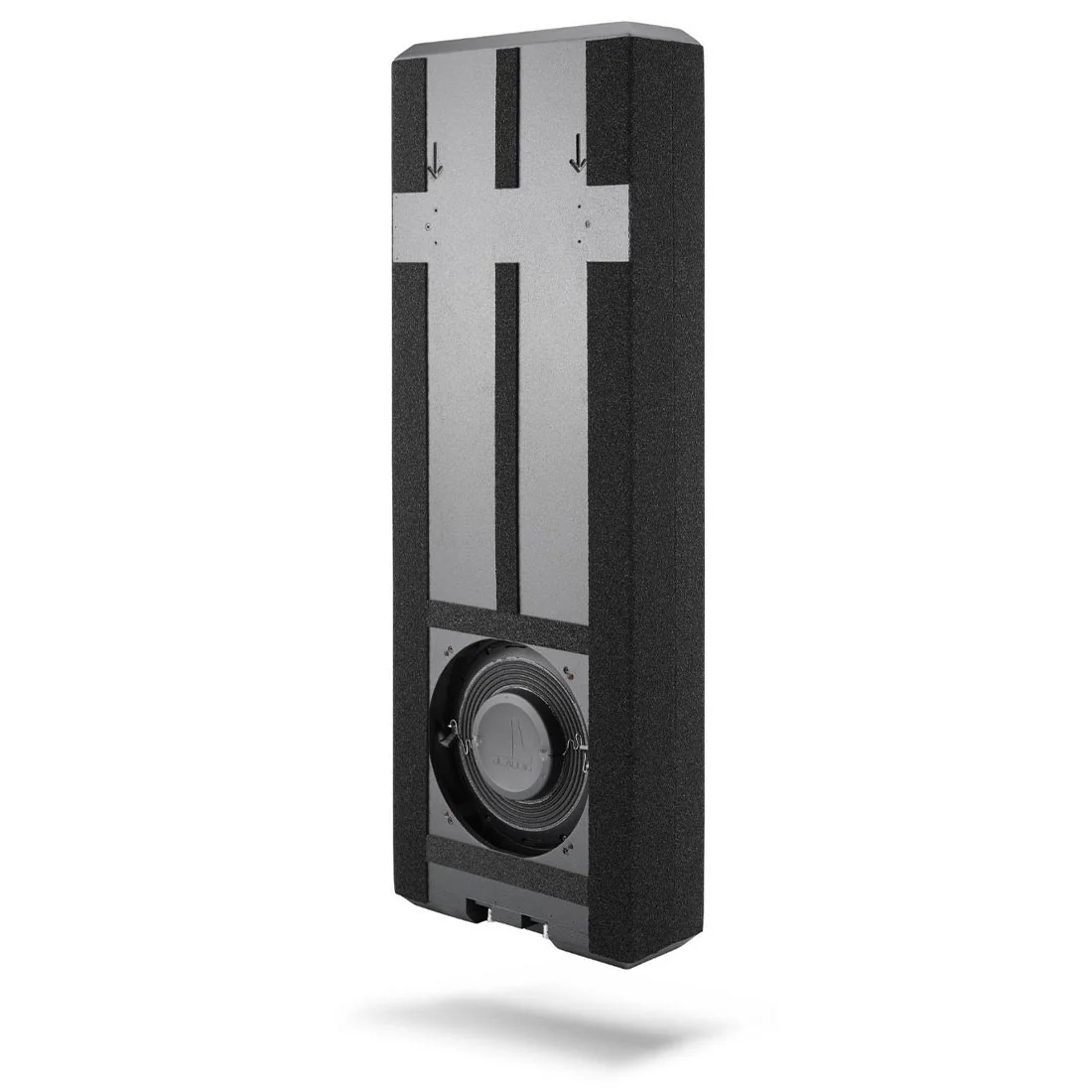

Created from the same innovative technologies used to develop our free-standing powered subwoofers, the Fathom ICS in-ceiling subwoofer systems are engineered to deliver outstanding bass performance, with nearly unlimited placement freedom. Purpose-built to disappear into the ceilings of most home audio/theater environments, the 8-inch Fathom ICS systems are designed to fit 2" x 6" or larger ceiling joists and a wide range of assembled joist widths, while operating through very small grilles.

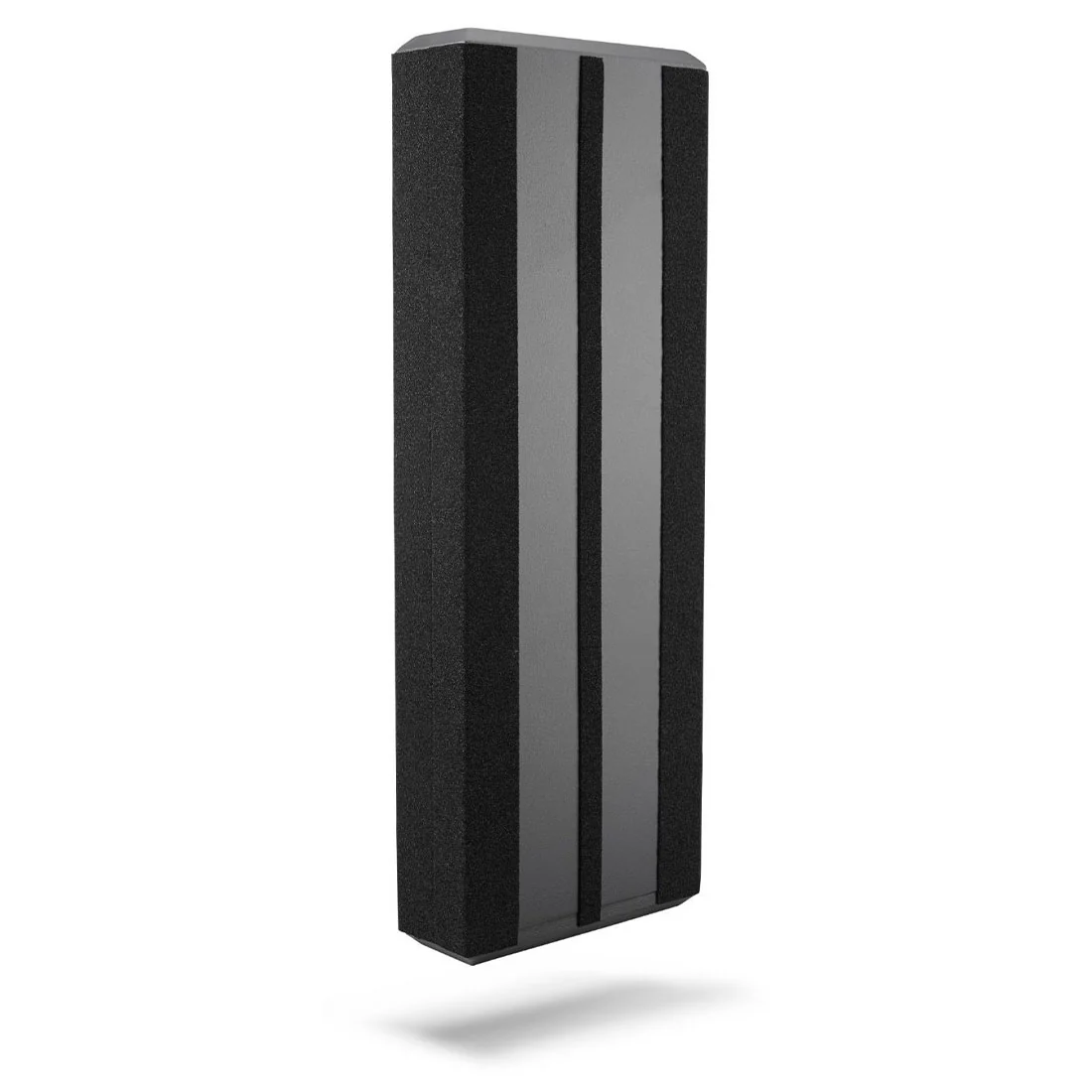

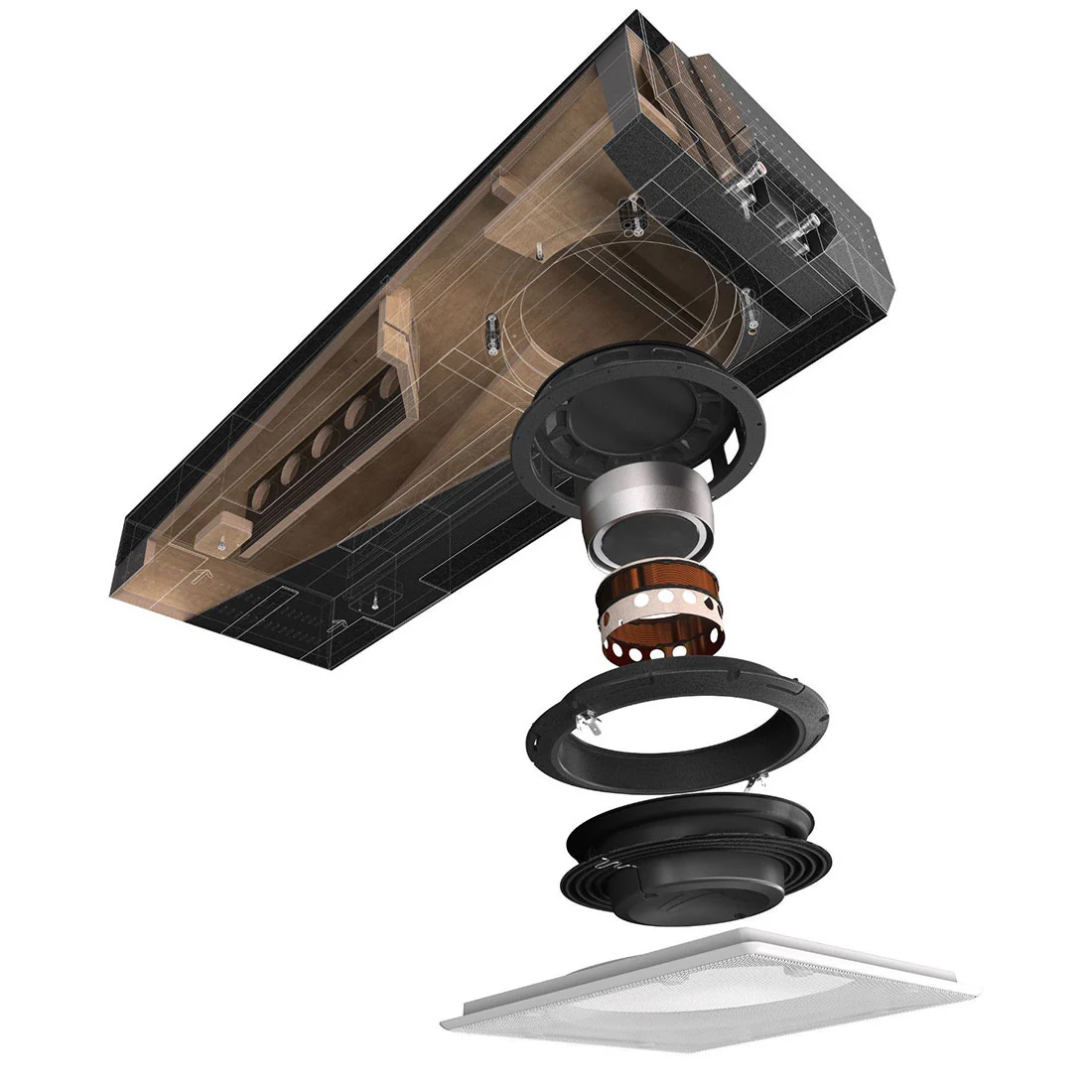

The grille’s clever design accommodates all common drywall thicknesses and can be easily painted to match a room’s décor. The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom ICS products.

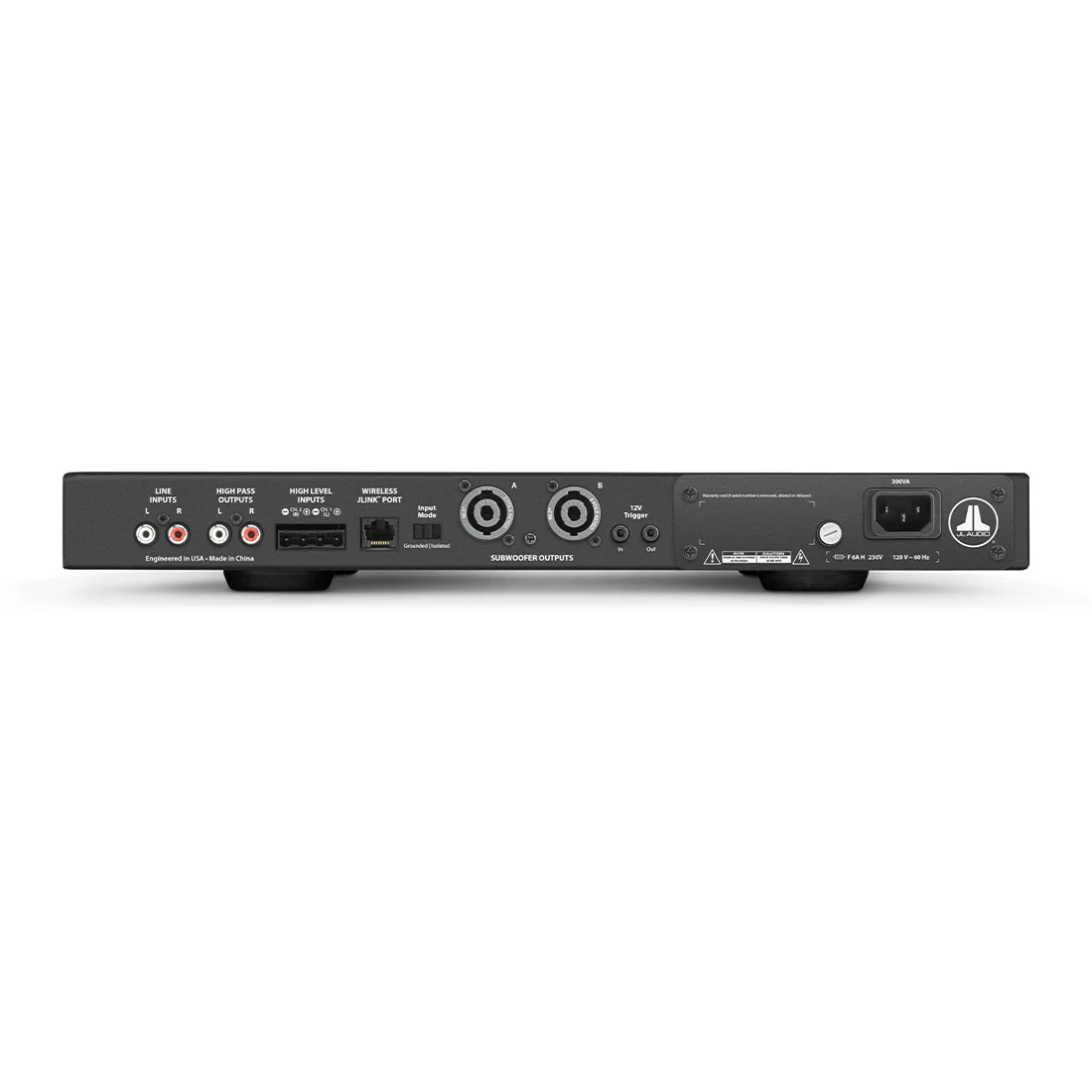

Each 8-inch Fathom ICS system is driven by a rack-mountable amplifier with up to 600 watts of clean power, programmed specifically for each system, and capable of driving up to two enclosures. A complete set of Fathom signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, and high-pass crossover outputs, all accessible via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

ICS-SYS-208 Highlights:

• The ICS-SYS-208 System fits 2" x 6" ceiling joists or larger, with assembled joists ranging from 16-inches to 25 1/2-inches on center.
• Enclosure Finish: Flat Black (hidden from view when installed)
• Grille finish: Primer White (paintable)
• Enclosure Construction: CNC-Cut Birch Plywood

2 x 6-inch Joist/Stud Enclosure Physical Specifications

Joist/Stud Cavity Width (W)	Minimum: 16 in / 406 mm Maximum: 25.5 in / 648 mm (on center)
Joist/Stud Cavity Height (H)	Minimum: 58 in / 1,473 mm
Width (W)	14 in / 355 mm
Height (H)	40.71 in / 1,034 mm
Depth (D)	5.13 in / 130 mm
Note: Enclosure dimensions do not include L-brackets or vibration-dampening padding.

Amplifier Physical Specifications

Width (W)	16.84 in / 428 mm
Height (H)	1.75 in / 44 mm
Depth (D)	13.63 in / 346 mm
Net Weight	13.5 lb / 6.12 kg
Note: Single Rack Unit - Amplifier Height Dimensions do not include feet.

Grille Physical Specifications

Grille Height (H)	10.50 in / 267 mm
Wallboard Thickness Compatibility	0.5 in to 1.75 in / 13 mm to 44 mm
Grille Width (W)	10.50 in / 267 mm
Wall Opening Height (H)	9.75 in / 248 mm
Wall Opening Width (W)	9.75 in / 248 mm
