Cerwin Vega CVP1600.1D CVP Series Class AB Monoblock Car Amplifier (CVP16001D)

Cerwin Vega CVP1600.1D CVP Series Class AB Monoblock Car Amplifier (CVP16001D)

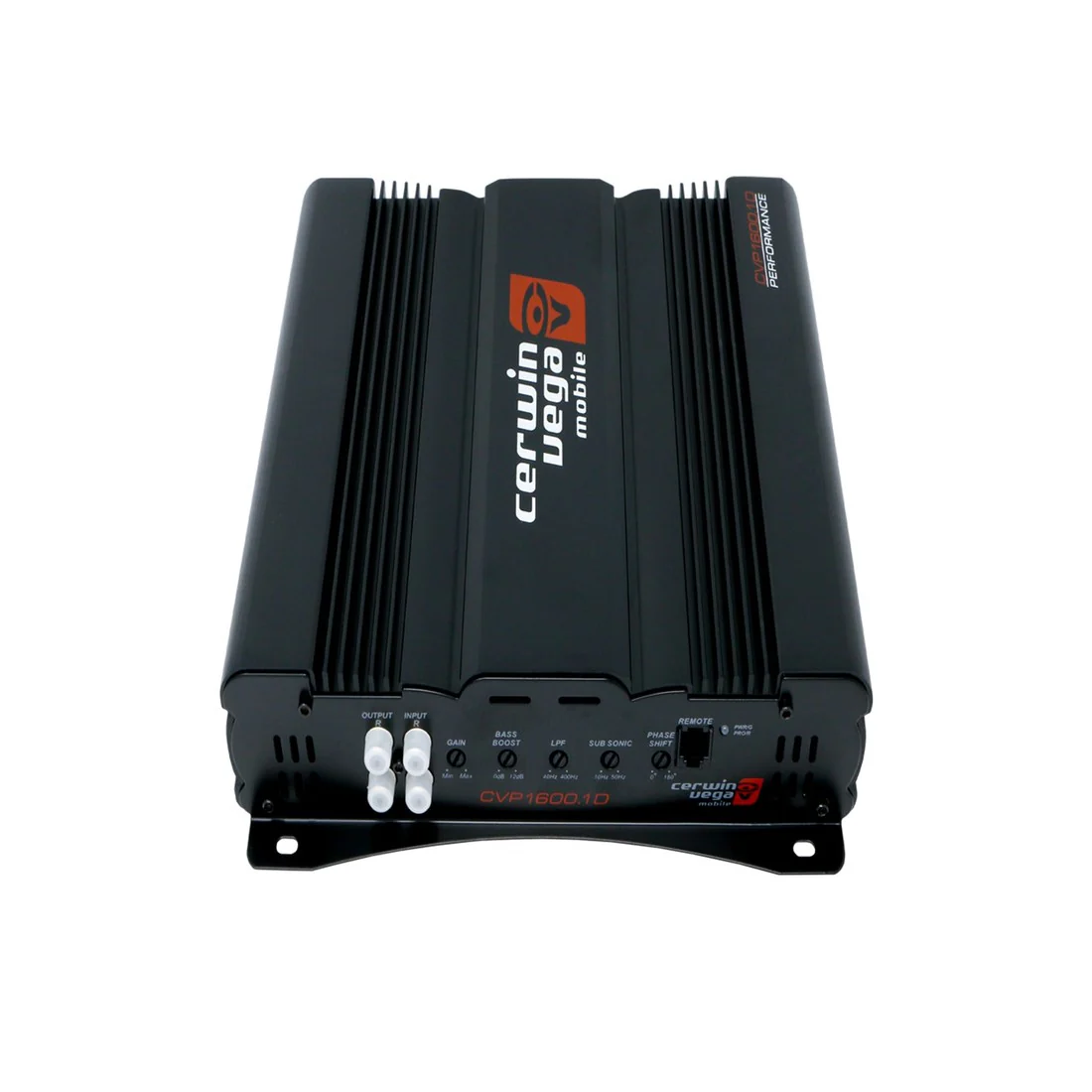

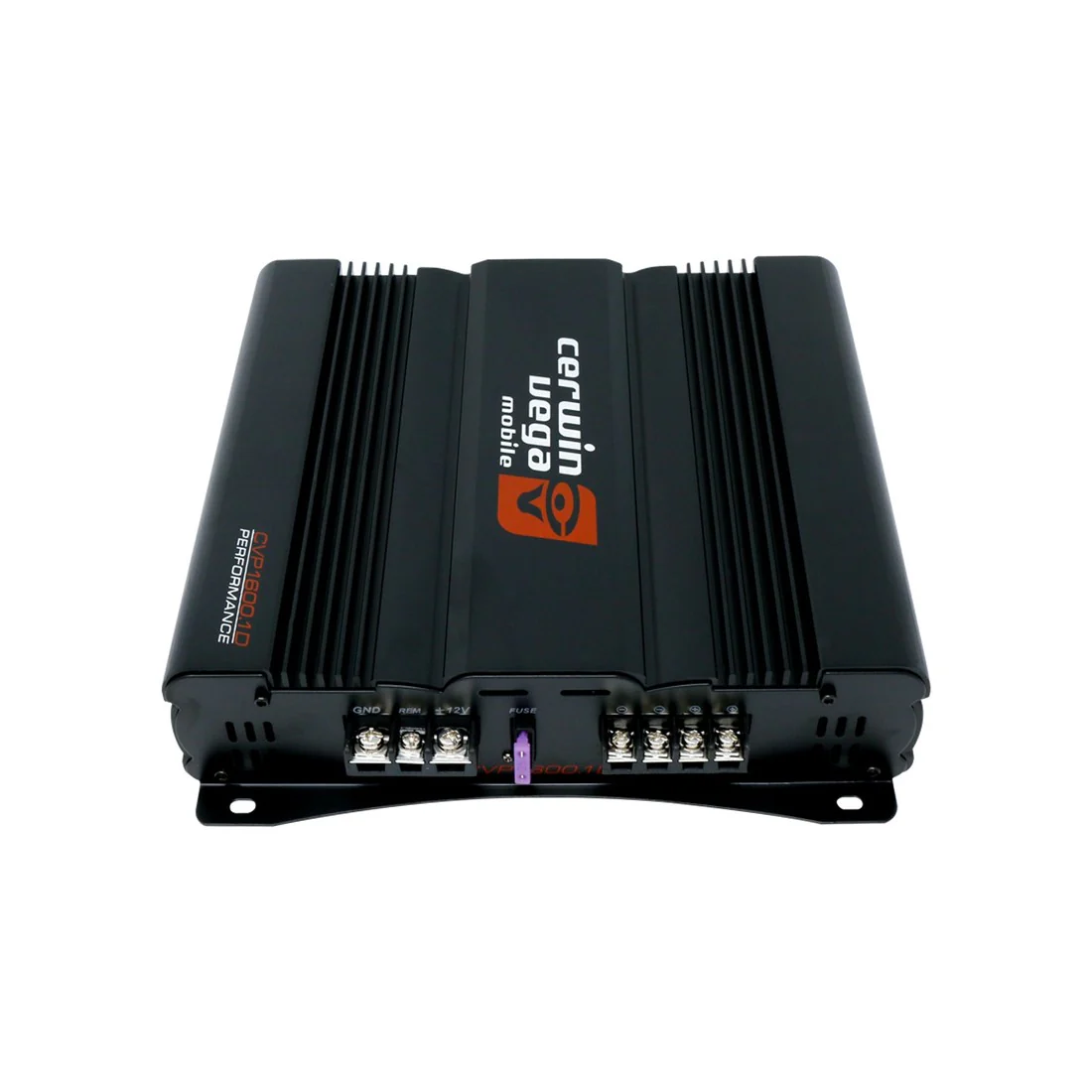

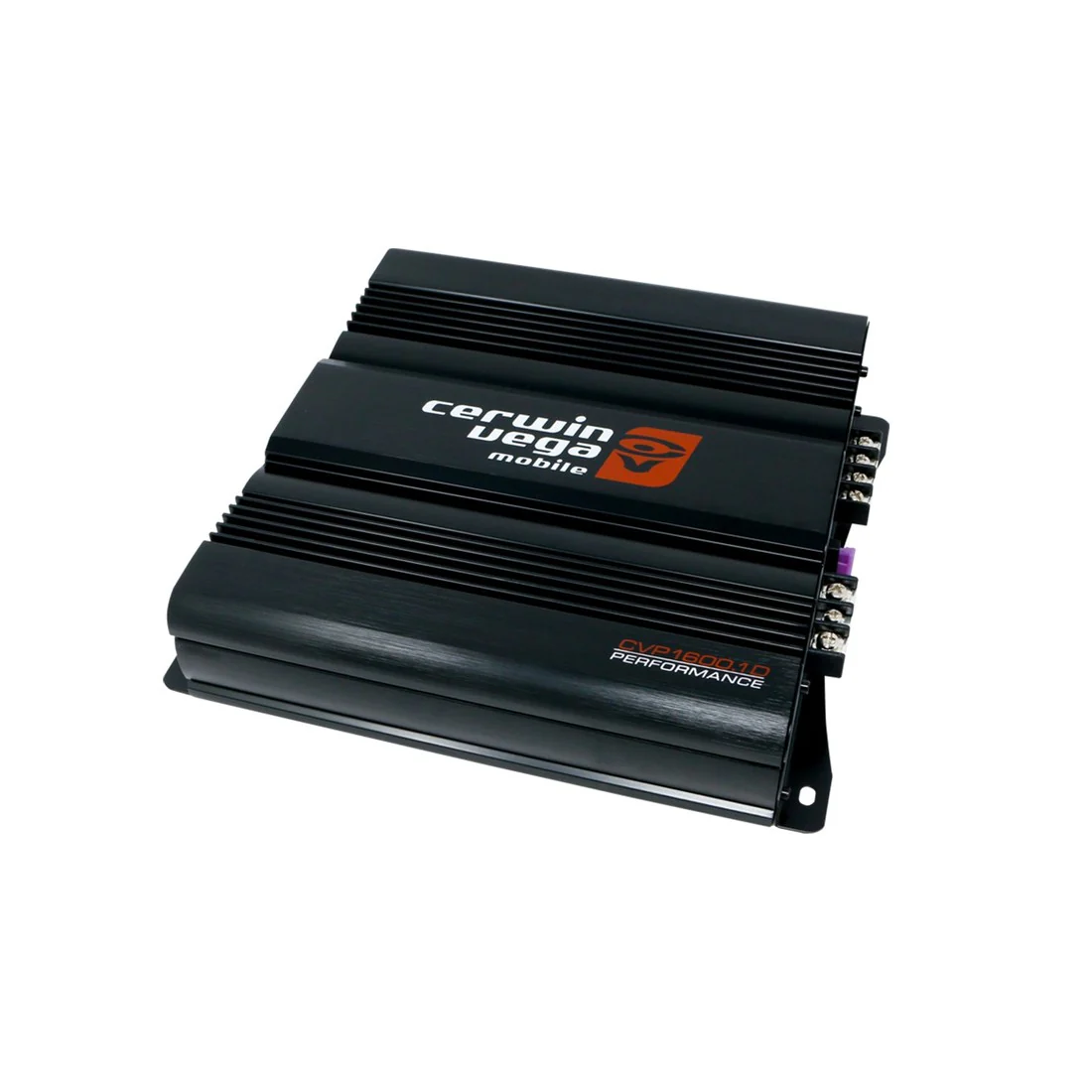

The Cerwin Vega CVP1600.1D amplifier is a 1-channel monoblock amplifier built for subwoofer systems that need strong low-frequency output. As part of the CVP Performance Series, it combines precision audio technology, durable internal components, and efficient circuitry for stable and consistent power delivery.

Focused Power for Subwoofer Systems

This 1-channel monoblock design concentrates available power into a single channel, making it ideal for subwoofer applications. It is engineered to deliver deep bass performance while maintaining the clarity and control Cerwin Vega amplifiers are known for.

• 1-channel monoblock amplifier
• Designed for subwoofer systems
• RMS power per channel at 4Ω: 120W x 1
• RMS power per channel at 2Ω: 200W x 1

Clean Output with Adjustable Bass Tuning

The Cerwin Vega CVP1600.1D is designed for clean, distortion-free audio reproduction, helping your system produce tight, impactful bass response. Adjustable crossover and bass controls give you the ability to tailor low-frequency performance for your setup.

• Frequency Response: 40Hz - 400Hz
• Variable Low-Pass: 40Hz - 400Hz
• Variable Sub-Sonic: 10Hz - 50Hz
• Bass Boost: 0dB - 12dB
• Bass Volume Control Included
• THD (1KHz @4Ω): <1%

Built for Consistent Daily Performance

With rugged construction, durable internal components, and efficient circuitry, the Cerwin Vega CVP1600.1D is built to maintain consistent performance even during high-output operation. That makes it a solid fit for daily drivers, bass enthusiasts, and custom car audio builds.

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-16.0V (DC)
• Idle Current: 0.5A
• LED Power/Protection Indicator
• Fuse Rating: ATC 35A x 1
• Dimensions: 8.67” x 9.38” x 2.25”

---

FAQs

1. Is the Cerwin-Vega CVP1600.1D designed for subwoofers? Yes. It is a 1-channel monoblock amplifier designed for subwoofer systems and low-frequency output.
2. Does this amplifier include a bass control? Yes. A Bass Volume Control is included, and it also features Bass Boost from 0dB to 12dB.
3. What bass tuning controls are available? The Cerwin Vega CVP1600.1D ncludes a Variable Low-Pass crossover from 40Hz to 400Hz and a Variable Sub-Sonic filter from 10Hz to 50Hz.
4. What operating voltage does it support? The power supply threshold is 10.0V to 16.0V DC.
