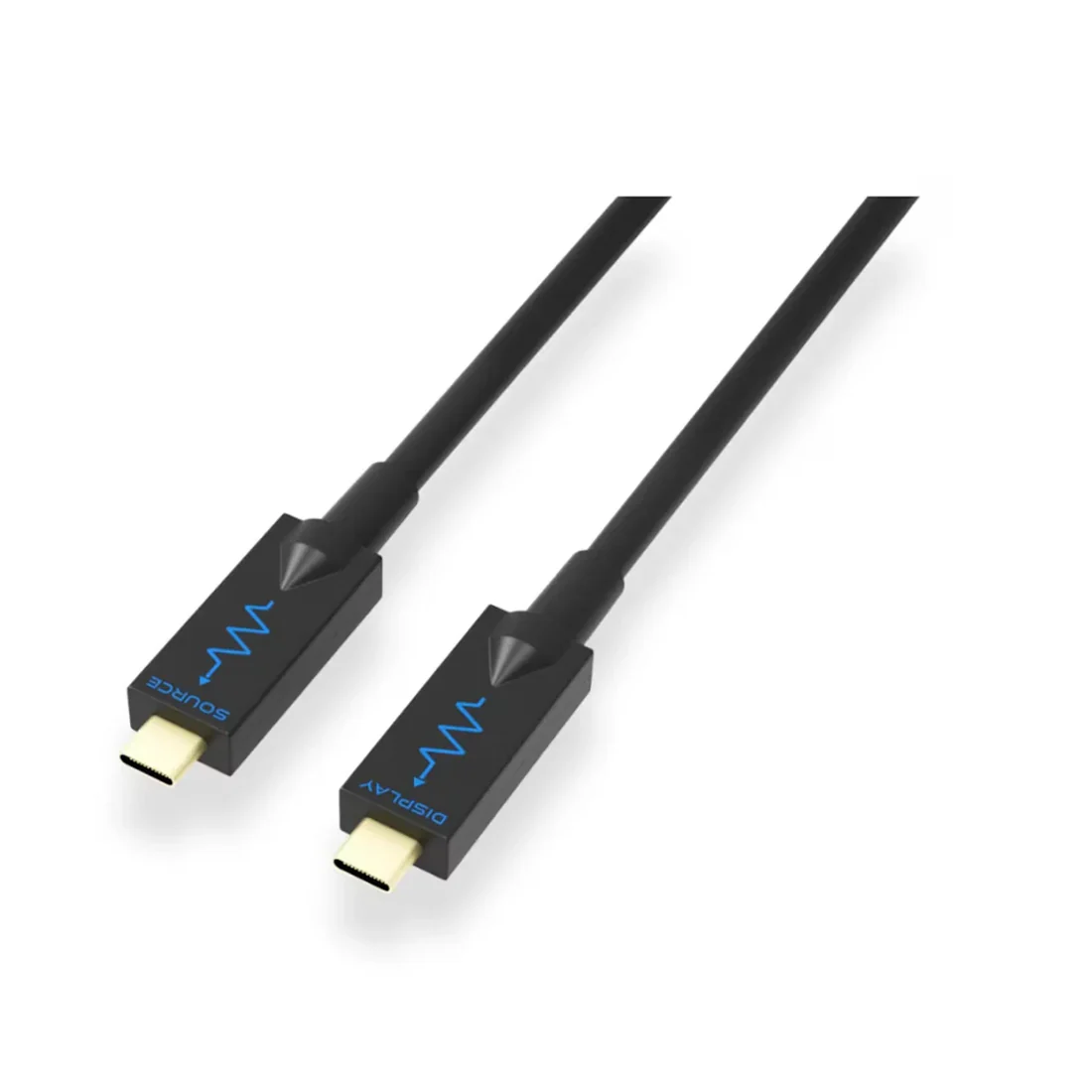

Blustream USB3C10 Precision 10Gbps USB-C AOC Data & 4K Video Cable (USB3C10)

Blustream USB3C10 Precision 10Gbps USB-C AOC Data & 4K Video Cable (USB3C10)

This active Blustream USB3C10 Precision AOC (Active Optical Cable) USB-C is built to carry high-bandwidth data and video, leveraging integrated circuits to measure, analyse, and optimise signals for reliable transmission up to 10Gbps over distances beyond traditional copper cables. It supports USB 3.2 Gen 2 data, 4K video at 60Hz 4:4:4 via DisplayPort Alt Mode, and Power Delivery up to 60W between host and device.

Long-distance, reliable USB-C performance

Integrated circuitry continuously measures, analyses, and optimises both data and video signals, enabling dependable 10Gbps transmission where conventional copper falls short.

• Active Optical Cable (AOC) design for extended runs
• Engineered for maximum signal integrity

4K Video over USB-C (DisplayPort Alt Mode)

The cable supports DisplayPort Alt Mode for 4K video at 60Hz 4:4:4, with DisplayPort 1.4 (2 lanes) providing up to 16.2Gbps of video bandwidth.

• Transmits video resolutions up to and including 4K (DP Alt Mode)
• DisplayPort 1.4 — 2 lanes, up to 16.2Gbps video bandwidth

High-speed data and power in one cable

Move files quickly and power devices simultaneously with SuperSpeed Plus data and Power Delivery support.

• USB 3.2 Gen 2 data transfer up to 10Gbps
• USB 3.1 Gen 2 SuperSpeed Plus Type C M-M
• Power Delivery up to 60W between host and device
• Backward compatible with USB 2.0 and 1.1 devices

Installation-ready construction

Built for demanding environments and clean installs, while maintaining robust performance.

• Optimised for the toughest installation environments
• LSZH (Low Smoke Zero Halogen) rated cabling
• Available length: 10 metres

Ideal for high-bandwidth applications

Purpose-built for modern workflows that require reliable high-speed connectivity and 4K transport.

• Extend USB 3.2 connections from a 4K PTZ camera to a host computer
• Deliver 4K DP Alt Mode video from a USB-C-enabled laptop or tablet to a display

Compatibility notes

The USB3C10 does not support the Thunderbolt protocol.

Frequently Asked Questions

• What video resolutions does the USB3C10 support?

  It transmits up to 4K via DisplayPort Alt Mode, supporting 4K at 60Hz 4:4:4 and DisplayPort 1.4 (2 lanes) with up to 16.2Gbps of video bandwidth.

• What data transfer speed is supported?

  USB 3.2 Gen 2 data transfer at speeds up to 10Gbps; specified as USB 3.1 Gen 2 SuperSpeed Plus Type C M-M.

• Can the cable provide power between devices?

  Yes. It supports Power Delivery up to 60W between host and device.

• Is it compatible with older USB devices?

  Yes. It is backward compatible with USB 2.0 and 1.1 devices.

• Does it support Thunderbolt?

  No. The USB3C10 does not support the Thunderbolt protocol.

• What length is available?

  10 metres.

• What are typical use cases?

  Extending USB 3.2 connections from a 4K PTZ camera to a host computer, or delivering 4K DP Alt Mode video from a USB-C-enabled laptop or tablet to a display.
