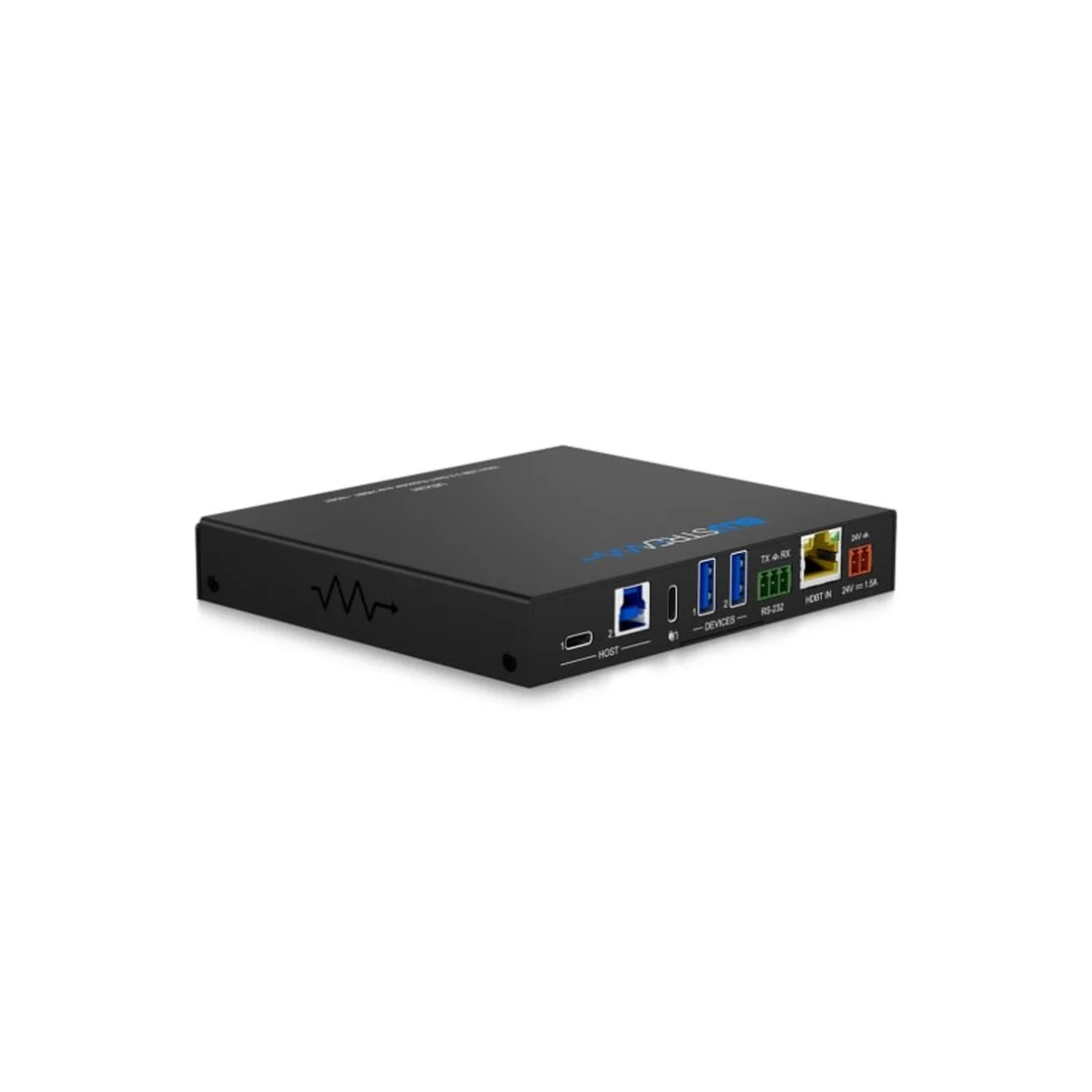

Blustream UEX3H USB 3.2 Gen1 HDBaseT Extender Host 100m

Blustream UEX3H USB 3.2 Gen1 HDBaseT Extender Host 100m

The Blustream UEX3H USB 3.2 Gen1 HDBaseT Extender - Host is engineered to deliver remote USB connectivity over HDBaseT technology at distances of up to 100m / 330ft over a single CAT6A cable. Designed as a USB Host solution, it supports switching between 2 x USB Hosts and local and remote USB devices while maintaining combined transmission data bandwidth of up to 5Gbps.

Long-Distance USB 3.2 Gen1 Extension

The UEX3H utilises HDBaseT technology to extend USB 3.2 Gen1 devices over a single CAT6A cable, making it suitable for applications where USB devices need to be connected far from the host location. It is ideal for USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices.

• Supports USB 3.2 signal extension up to 100m / 330ft over HDBaseT
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 & 1.1 devices

Flexible Host Switching and Device Connectivity

With 1 x USB-A and 1 x USB-C port for host connection, the UEX3H allows 2 x USB Hosts to be switched between connected USB devices. Host selection supports both auto and manual operation, offering control from the front panel button or via RS-232 from 3rd party control solutions.

• Supports 2 x USB Host devices
• 1 x USB Type C, female and 1 x USB Type A, female host ports
• Manual or auto Host switching
• Control via front panel button or RS-232

Power and Installation Simplicity

The UEX3H utilises bi-directional PoC (Power over Cable) so the extender link can be powered from either the host or device unit, helping simplify installation. It also features a USB-C host charging port for connection of an external power supply to power the host device, plus plug and play operation with no driver installation or setup required.

• Bi-directional PoC supports 12-48V PoC
• PoC function can be enabled/disabled via dipswitch
• 1 x USB Type C charging port for USB-C host
• Provides up to 500mA combined power to USB devices
• Simple plug and play, no driver installation or setup required

Integration with Compatible Blustream Systems

This host unit is designed for use with compatible Blustream USB 3.2 HDBaseT Device products, including the Blustream UEX3D and UEX3D-WP. It also supports bi-directional RS-232 when used with compatible HDBaseT products for integration into broader control systems.

• Compatible with Blustream UEX3D and UEX3D-WP
• Supports bi-directional RS-232 with compatible HDBaseT products
• Configurable USB device power management via API commands
• For USB 3.2 data transfer only
• Does not support DP Alt Mode video pass-through

Frequently Asked Questions

1. How far can the Blustream UEX3H extend USB 3.2 Gen1? It supports USB 3.2 signal extension up to 100m / 330ft over HDBaseT using a single CAT6A cable.
2. Is the UEX3H compatible with older USB devices? Yes. It is backwards compatible with USB 2.0 and 1.1 devices.
3. How do you switch between host devices? Host selection can be set to auto or manual and controlled via the front panel button or RS-232 from 3rd party control solutions.
4. Does this extender support video pass-through over USB-C? No. This product is for USB 3.2 data transfer only and does not support DP Alt Mode video pass-through.
5. Does the UEX3H require a compatible device unit? Yes. It requires a compatible Blustream USB 3.2 HDBaseT Device product and is compatible with the Blustream UEX3D and UEX3D-WP.

Ready to extend USB connectivity over distance? Add the Blustream UEX3H USB extender to your cart today for remote USB 3.2 Gen1 connectivity over HDBaseT. Contact the audio experts at Gibbys Electronic Supermarket for advice on matching USB extenders, control systems, and installation accessories!
