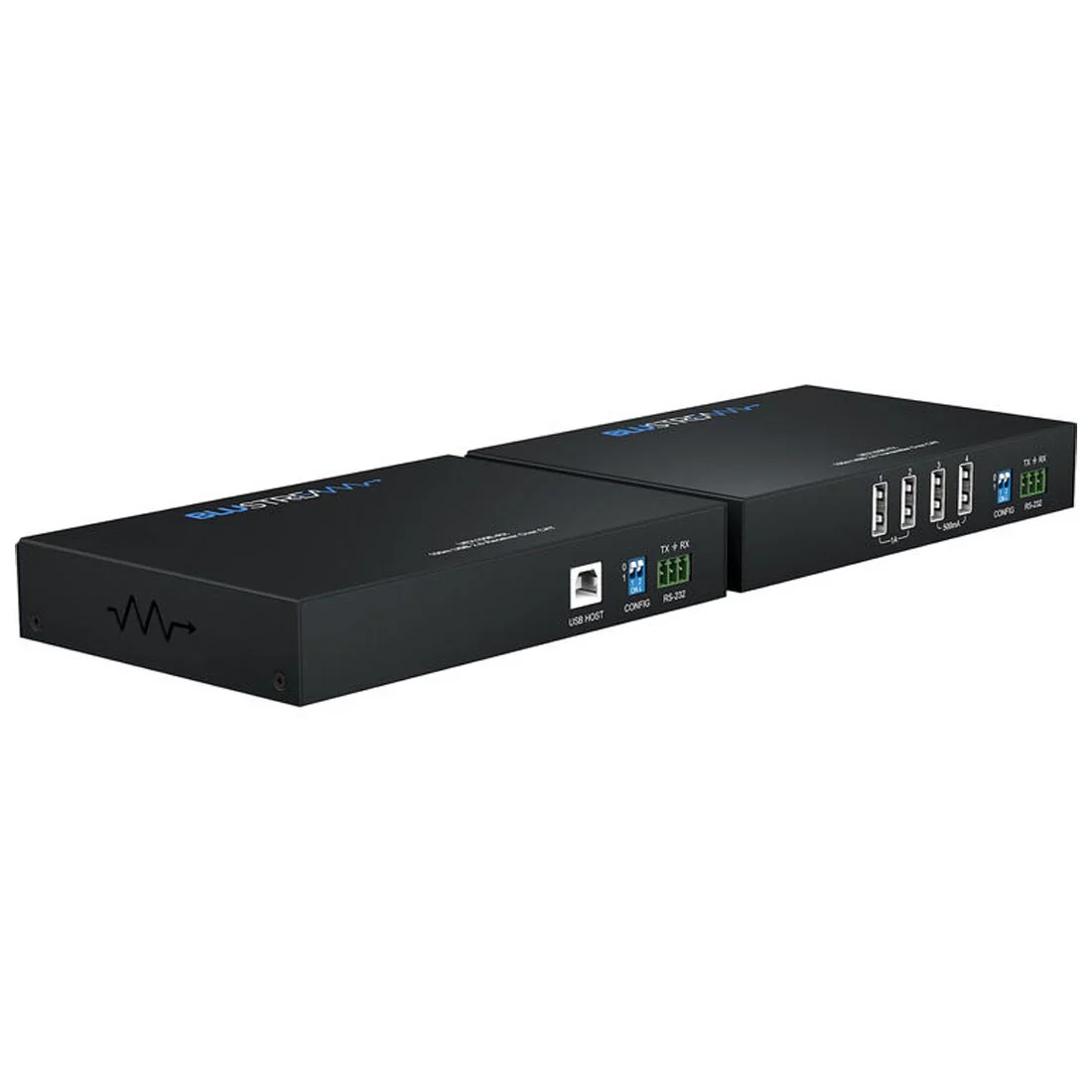

The Blustream UEX100E-KIT is a USB extender kit utilizing HDBaseT technology to extend USB 2.0 data, 2ch analog audio, and control signals up to 100m over a single CAT cable. It supports up to four USB devices to a single host with up to 480Mbps combined bandwidth, plus Ethernet, IR, RS-232, and bi-directional Power over Cable.

Long-Distance USB 2.0 Extension

Extend USB connectivity up to 100m over a single CAT cable using HDBaseT™ technology with support for full-speed USB 2.0 signals.

• Extends USB up to 100m over a single CAT cable
• Supports USB 2.0; backwards compatible with USB 1.1 devices
• Combined transmitted data bandwidth up to 480Mbps

Signal distribution length is subject to the length of device/host USB cables and CAT cable type.

Flexible USB Connectivity and Power

Connect multiple peripherals at the transmitter while linking to a single host at the receiver.

• 1 x USB-B port on the receiver for connection to the host device
• 4 x USB-A ports on the transmitter for connection to devices
• USB-A ports 1–2 support 5V 1A; ports 3–4 support 5V 500mA
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
• Simple plug and play operation with no driver installation or setup required

Integrated Control, Audio, and Network Pass-Through

Carry control, audio, and network signals alongside USB for streamlined system integration.

• Bi-directional Ethernet pass-through (100Mbps)
• Bi-directional IR and RS-232 pass-through
• Supports 2ch PCM analog audio pass through (direction selectable)

What’s in the Box

• 1 x UEX100E-TX
• 1 x UEX100E-RX
• 1 x USB-A to USB-B cable (1m)
• 1 x 24V/1.25A DC power supply
• 2 x mounting kits
• 1 x Quick Reference Guide

Frequently Asked Questions

• How far can the UEX100E-KIT extend USB?

  Up to 100m over a single CAT cable using HDBaseT™ technology. Actual distance is subject to the length of device/host USB cables and CAT cable type.

• Which USB versions are supported?

  USB 2.0 is supported and the system is backwards compatible with USB 1.1 devices.

• How many USB devices can be connected?

  Up to four USB devices can connect to a single USB host, with a combined transmission bandwidth of up to 480Mbps.

• Does it pass audio and control signals?

  Yes. It provides bi-directional IR and RS-232 pass-through and supports 2ch PCM analog audio pass through with direction selectable.

• Is network connectivity available?

  Yes. It includes bi-directional Ethernet/LAN pass-through at 100Mbps.

• Is software required for setup?

  No. It is simple plug and play with no driver installation or setup required.

• How is power delivered between units?

  Bi-directional PoC allows powering the extenders from either the transmitter or the receiver.
