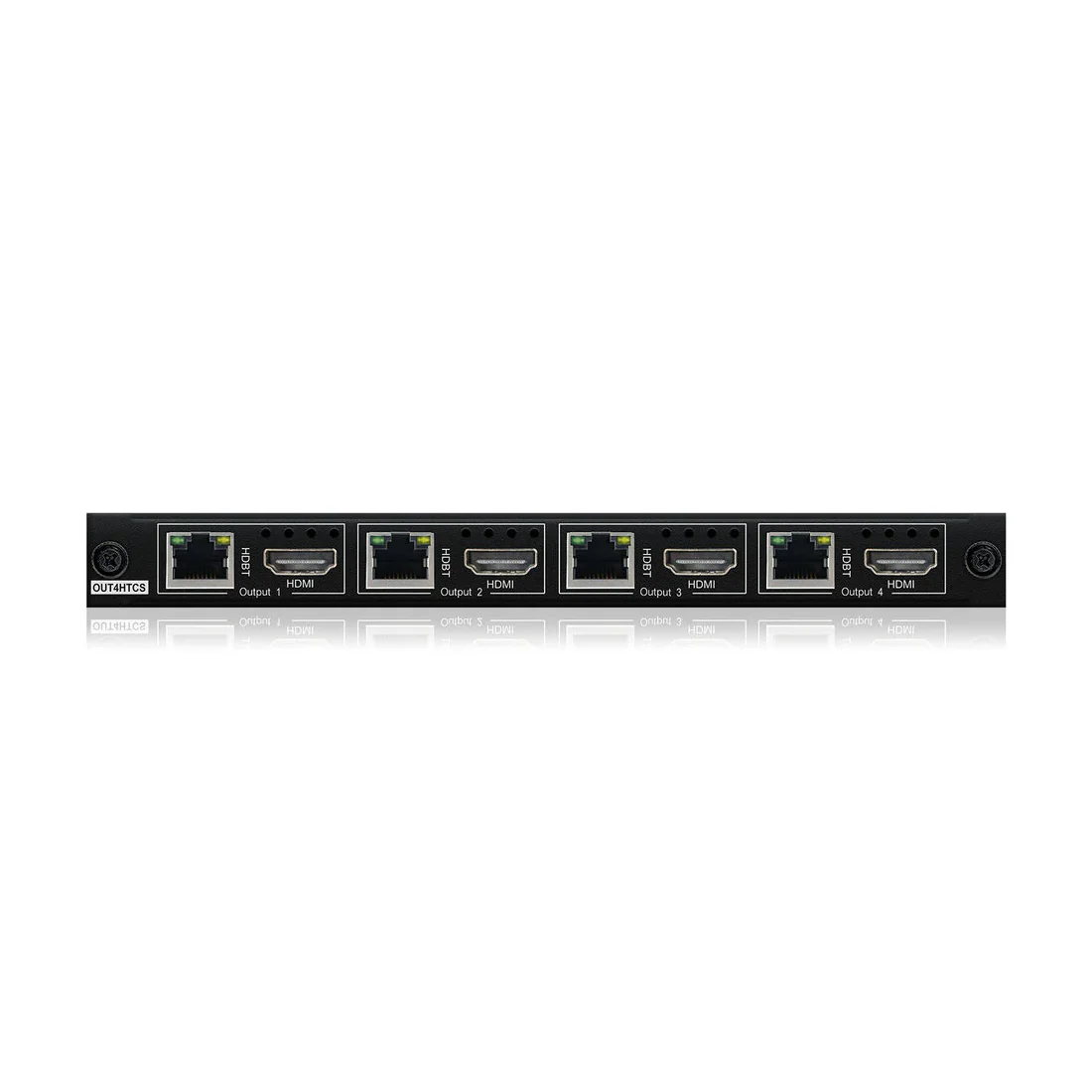

Blustream PRO-OUT4HTCS 4-WayHDMI HDBaseT Output Board
The Blustream PRO-OUT4HTCS is a 4-way simultaneous HDMI/HDBaseT CSC output board for Custom Pro Matrix systems, delivering HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) distribution over HDBaseT. Independent downscaling on the CSC HDBaseT outputs enables lower-resolution displays to receive compatible video while higher-definition screens show the original 4K UHD.
Flexible 4K Distribution Across Mixed Displays
Independent downscaling lets the system accommodate displays with different capabilities without sacrificing 4K UHD on higher-definition screens.
- Independent downscaling of video input resolutions up to 4K @ 60Hz 4:4:4 to 1080p @ 60Hz or 4K @ 60Hz 4:2:0 on CSC HDBaseT outputs.
- Allows displays that support lower resolutions to receive 4K video while higher-definition displays show maximum original 4K UHD resolution.
Simultaneous HDMI and HDBaseT Connectivity Per Zone
Provide parallel connections to HDMI displays and HDBaseT receivers from one board.
- 4 x simultaneous HDMI / HDBaseT outputs for connection to HDMI displays and HDBaseT receivers.
- 4 x dual HDBaseT outputs for connection to a HDBaseT receiver and HDMI display per zone.
4K HDR Signal Distribution and Distance Performance
Transmit UHD and Full HD signals over a single CAT cable with HDR and HDMI 2.0 support.
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support.
- Supports 4K @ 60Hz 4:4:4 UHD video up to 70m.
- Extends HDMI 1080p video up to 100m.
- Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable.
Audio Support and Content Protection
Compatible with widely used immersive and high-resolution HDMI audio formats with standards compliance.
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission.
- HDCP 2.2 support.
- Supports PoC to power Blustream HDBaseT receivers.
Designed for Custom Pro Matrix Integration
Engineered for straightforward population and deployment within the Custom Pro Matrix hub.
- Quick release card module fittings allowing simple population of input and output cards in the Custom Pro Matrix hub.
- To be used with the HEX100CS-RX receivers.
- For HDMI 2.0 18Gbps video distribution the PRO-OUT4TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board.
Frequently Asked Questions
-
What does the PRO-OUT4HTCS do?
It is a 4-way simultaneous HDMI/HDBaseT CSC output board that offers 4 x outputs for connection to HDMI displays and HDBaseT receivers, with support for 4K HDR distribution.
-
What resolutions and distances are supported?
It supports 4K @ 60Hz 4:4:4 up to 70m and extends HDMI 1080p up to 100m over HDBaseT.
-
Does it support HDR and HDMI 2.0 (18Gbps)?
Yes. Advanced CSC technology supports the HDMI 2.0 18Gbps specification including HDR support.
-
How does the independent downscaling work?
On the CSC HDBaseT outputs it can downscale inputs up to 4K @ 60Hz 4:4:4 to 1080p @ 60Hz or to 4K @ 60Hz 4:2:0, allowing lower-capability screens to display video while higher-definition displays show the original 4K UHD.
-
Which audio formats are supported?
It supports all known HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission.
-
Does it provide power to receivers?
Yes. It supports PoC to power Blustream HDBaseT receivers.
-
Which receivers is it used with?
It is to be used with the HEX100CS-RX receivers.
-
What is required for HDMI 2.0 18Gbps video distribution?
The PRO-OUT4TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board.
-
What output connectors are provided?
4 x HDMI Type A (19-pin, female) and 4 x HDBaseT RJ45 connectors.
Add to Cart to integrate the PRO-OUT4HTCS into your Custom Pro Matrix system, and contact Gibbys for personalized system-matching and setup guidance for your HDBaseT deployment.
