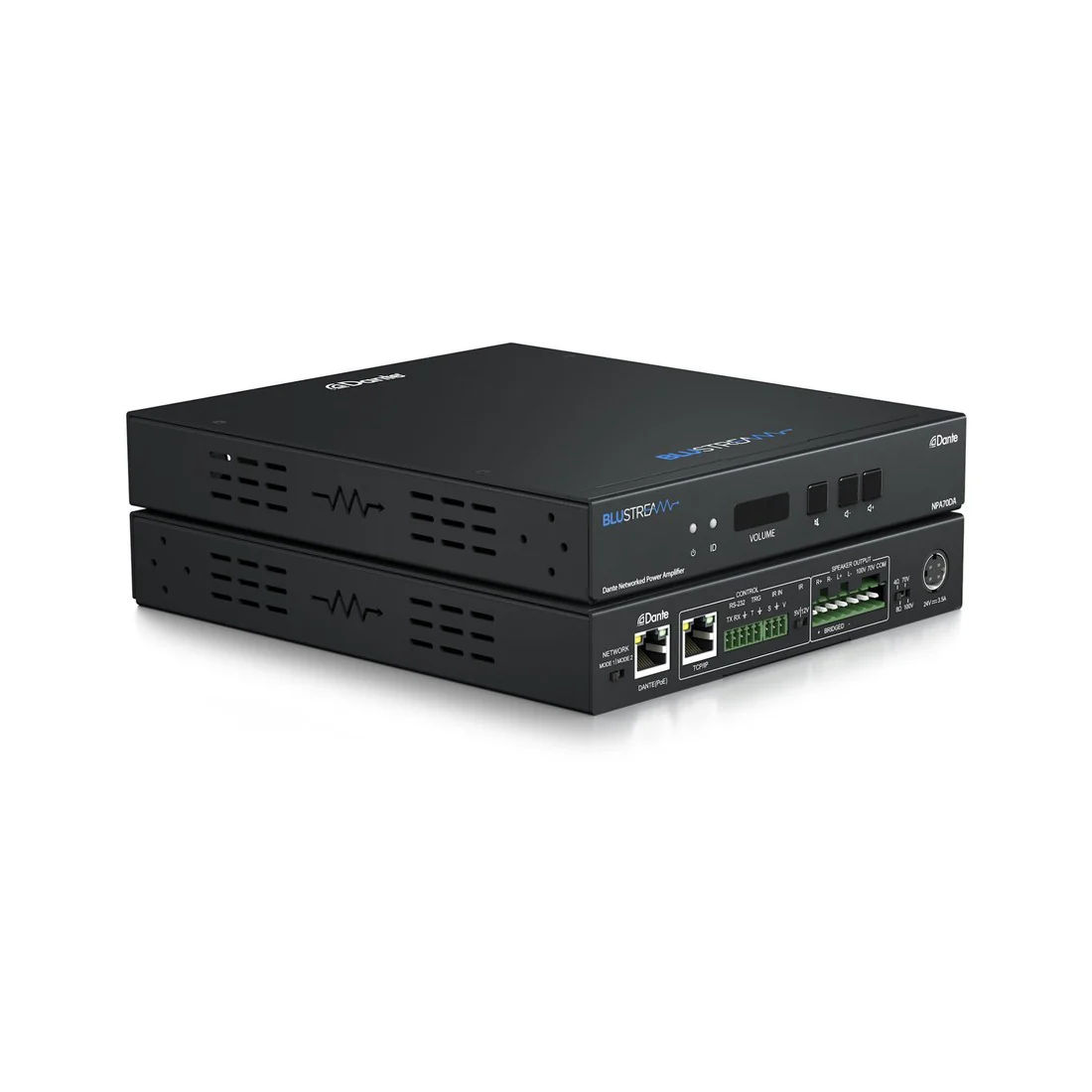

Blustream NPA70DA Networked Power Amplifier with Dante

Blustream NPA70DA Networked Power Amplifier with Dante

The Blustream NPA70DA networked power amplifier brings flexible, installation-friendly audio control to modern AV spaces with Dante integration, selectable amplifier modes, and streamlined network connectivity. Whether you are distributing sound across a commercial zone or adding refined audio control to a residential system, this Blustream NPA70DA power amplifier makes it easy to combine clean amplification, DSP shaping, and versatile control in one compact unit.

Flexible amplification for a wide range of speaker setups

This amplifier adapts to the way your system needs to be built, whether that means driving standard low-impedance speakers, combining channels for higher mono output, or feeding 70V / 100V constant-voltage speaker lines over longer cable runs. That kind of flexibility helps simplify installs while giving you more freedom to match the amplifier to the room and speaker layout.

• Supports 2 x 35W at 4 / 8 ohm
• Supports 1 x 70W mono at 4 / 8 ohm
• 70 / 100V constant output for multiple speakers with longer cable runs
• 1 x 4-Pin Phoenix connector for 4 / 8 ohm speaker output
• 1 x 3-Pin Phoenix connector for 70 / 100V speaker output

Dante audio integration with network deployment flexibility

Built-in Dante support makes it easy to slot the amplifier into a wider networked audio system, while AES67 compatibility helps broaden integration options. For cleaner installations, it can run from a compatible PoE++ network switch, and the dual-network design lets you choose separate Dante and LAN control ports or combine them onto a single LAN connection.

• 2ch Dante / AES67 audio input
• Supports power via PoE++ on Dante LAN connection or local power supply
• Dual network option with independent Dante and LAN control ports, or combined to a single LAN
• 1 x RJ45 Dante audio connection
• 1 x LAN RJ45 connector (Dante)
• 1 x LAN RJ45 connector (Network)

DSP control that helps audio feel more polished

Fine-tuning a system is easier when the amplifier itself gives you practical tools to shape the sound. The built-in DSP includes a 31-band EQ for tonal adjustment and audio delay for lip sync correction, so speech and programme audio can feel more natural and better aligned with the display.

• DSP with 31 band EQ with +3dB/-10dB
• Audio delay for lip sync correction

Convenient control for integrated AV systems

The NPA70DA is built to work smoothly in automated environments, with control options that suit both hands-on operation and larger managed systems. From the front panel to web access and control ports, it offers several ways to manage power and settings without overcomplicating the installation.

• Control via front panel, IR, RS-232 and IP
• In-built web-GUI for setup and control
• Local 12V input trigger for automated power control
• Auto standby mode with signal sensing
• 1 x 3-Pin Phoenix RS-232 serial port
• 1 x 3-Pin Phoenix IR input port
• 1 x 2-Pin Phoenix trigger input

Compact installation with included mounting accessories

Its slim housing helps it disappear neatly into racks, cabinets, or surface-mounted installations where space is tight. With both rack-mount and wall / surface mounting hardware included in the box, it is ready for a cleaner and faster install right away.

• 19” rack mounting and wall / surface mounting kit included
• Casing dimensions: 202mm x 175mm x 31mm
• Dimensions including connections: 245mm x 175mm x 31mm
• Shipping weight: 1.8kg
• Includes 24V/3.5A power supply, remote control, IR receiver, rack mounting kit, wall / surface mounting kit, rubber feet, and user manual

Frequently Asked Questions

1. Can this amplifier be powered over the network? Yes. It supports PoE++ Type 4 on the Dante LAN connection, or it can use the included 24V power supply.
2. Does it support Dante audio systems? Yes. It features a 2-channel Dante / AES67 audio input for networked audio integration.
3. Can it work with both standard speakers and 70V / 100V speaker lines? Yes. It supports 4 / 8 ohm speaker output as well as 70 / 100V constant-voltage output.
4. How can I control the amplifier? You can control it via the front panel, IR, RS-232, TCP/IP, web-GUI, or 12V trigger.

Add the Blustream NPA70DA power amplifier to your cart to simplify networked audio distribution with flexible amplification and integrated Dante® control. Contact Gibbys Electronic Supermarket for expert advice on choosing the right AV and audio distribution solution for your installation.
