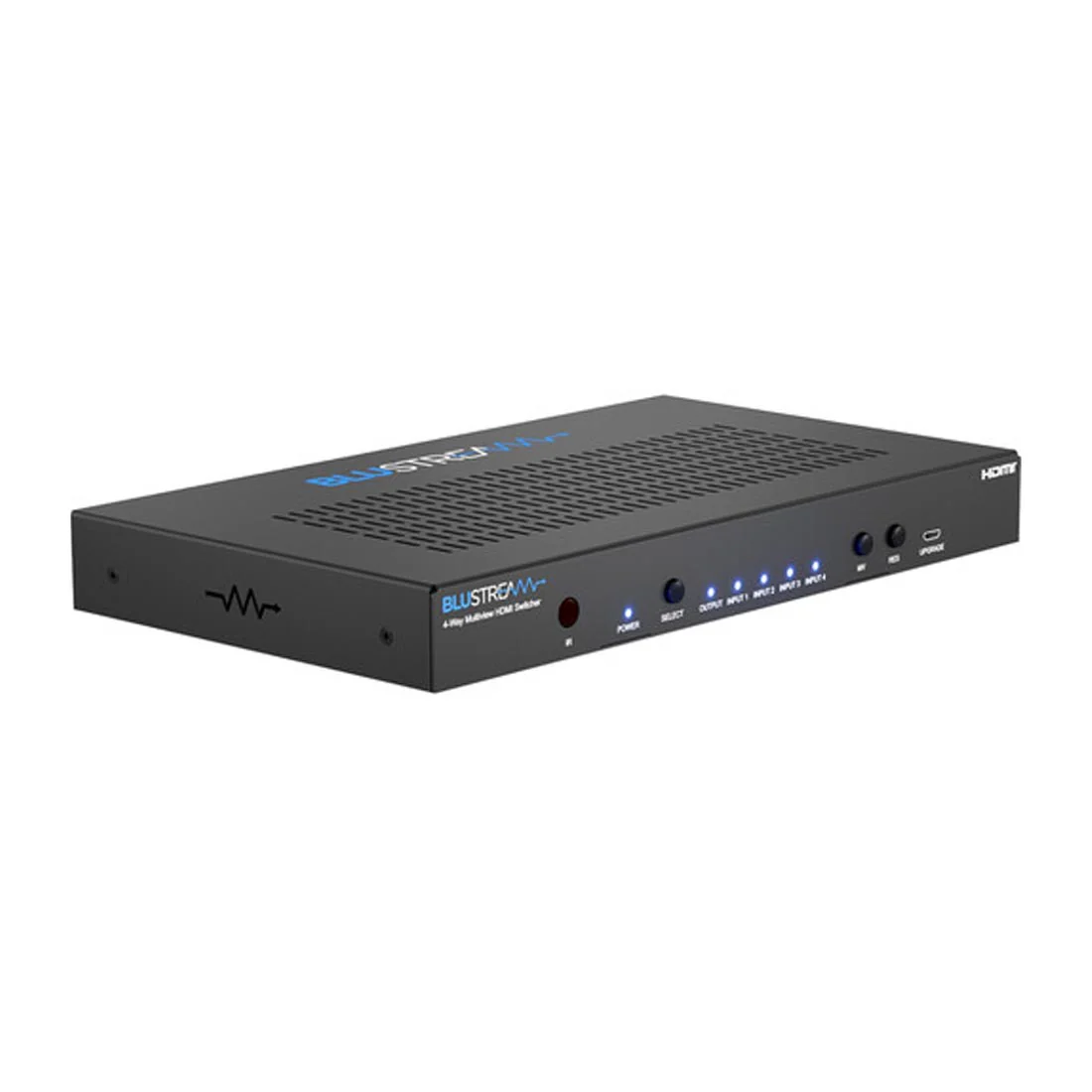

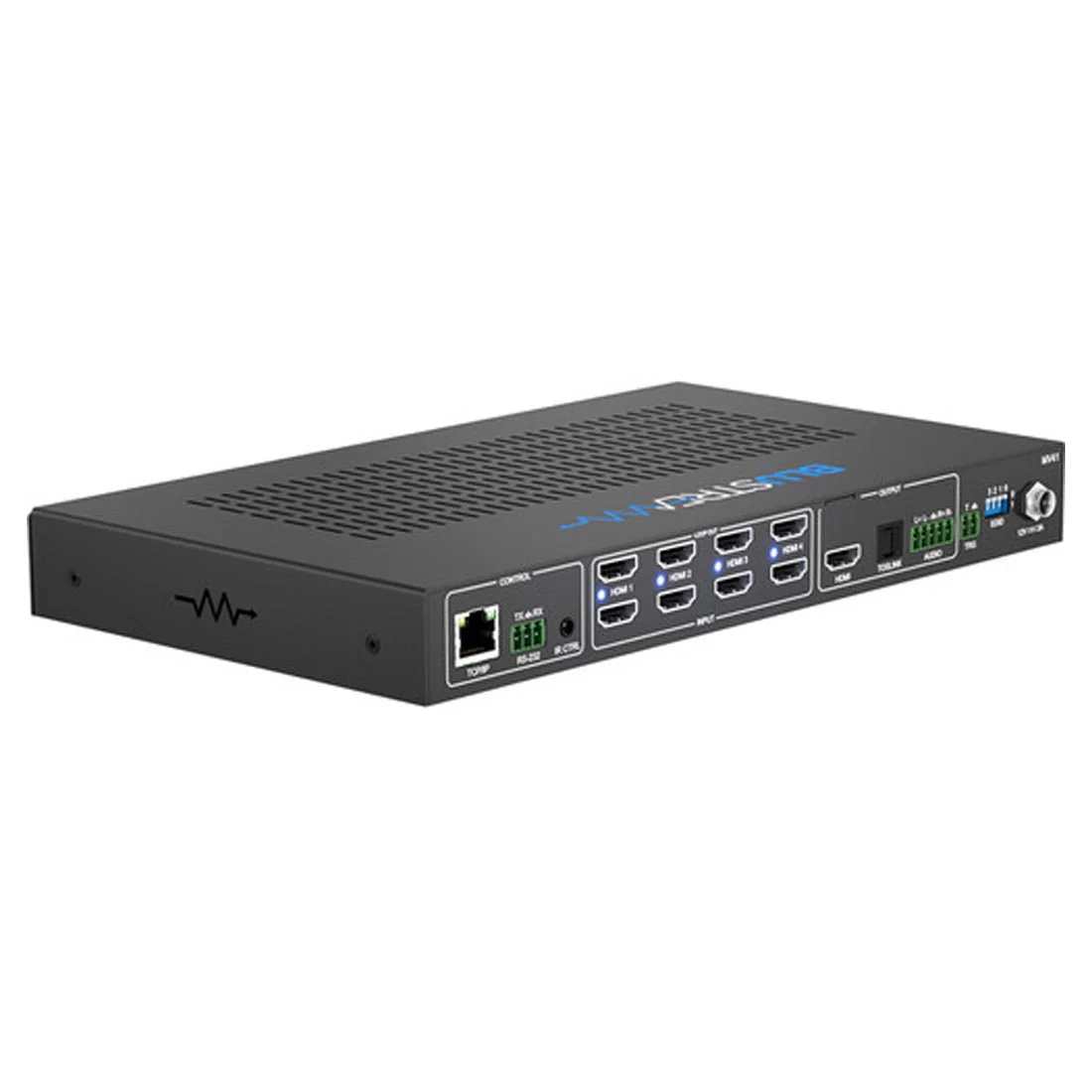

Blustream MV41 4-Way Multiview HDMI Switcher (MV41)

Blustream MV41 4-Way Multiview HDMI Switcher (MV41)

The Blustream MV41 is a 4x1 HDMI multi-view switcher that displays up to four HDMI2.0 sources on a single screen with pre-defined and customizable layouts and seamless switching. HDMI loop-through on every input enables cascading of original source signals for further distribution.

Simultaneous Multi-View on One Display

Show multiple HDMI sources at once with flexible multi-view options and smooth transitions.

• Up to 4x HDMI2.0 sources on one display at the same time
• Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts
• Pre-defined and customisable configurations
• Seamless switching

Flexible Distribution and Integration

Integrate local displays or expand to additional devices while maintaining content protection and reliable handshakes.

• 4x HDMI loop out for integrating local displays or cascading to multiple devices
• HDCP2.3 compliant with advanced EDID management
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

4K UHD Performance and Format Support

Deliver detailed video and adapt output to your display requirements.

• HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Video down-scaling and HDR to SDR conversion on HDMI multiview output

Audio Breakout and Pass-Through

Route audio independently or pass through immersive formats in line with HDMI specifications.

• HDMI audio breakout to analogue L/R and optical (S/PDIF) outputs concurrently
• Analogue L/R outputs support both balanced and unbalanced signals
• Bitstream passthrough of multichannel surround sound including object-based audio formats

Comprehensive Control and Automation

Configure and operate the Blustream MV41 through multiple control pathways and integrate with leading systems.

• Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
• Supplied with 5V IR receiver and remote control
• 3rd party drivers available for all major control brands

Built for Residential and Commercial Installations

Multiple configuration and connectivity options make the MV41 suitable for both residential and commercial installations.

Frequently Asked Questions

• How many sources can the MV41 display at once?

  It allows up to 4x HDMI2.0 sources to be shown on a single display at the same time with pre-defined and customisable layouts.

• Which multi-view layouts are supported?

  It supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts.

• Does it support 4K HDR?

  Yes. It supports HDMI2.0 4K UHD 60Hz 4:4:4 (18Gbps) including HDR.

• Can it down-scale video or convert HDR?

  Yes. It supports video down-scaling and HDR to SDR conversion on the HDMI multiview output.

• What audio options are available?

  It provides HDMI audio breakout to analogue L/R and optical (S/PDIF) concurrently, supports balanced and unbalanced analogue L/R, and enables bitstream passthrough of multichannel surround sound including object-based formats in line with HDMI specifications.

• What control methods are available?

  Control is available via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger, with 3rd party drivers for major control brands.

• Is the MV41 HDCP compliant?

  Yes. It is HDCP2.3 compliant and offers advanced EDID management.

• What’s included in the box?

  1 x MV41, 1 x IR receiver, 1 x IR remote control, 1 x 5-pin phoenix connector, 1 x 3-pin phoenix connector, 1 x 2-pin phoenix connector, 1 x 19" rack mounting kit, 1 x Quick reference guide, 1 x 12V/3A DC power supply.
