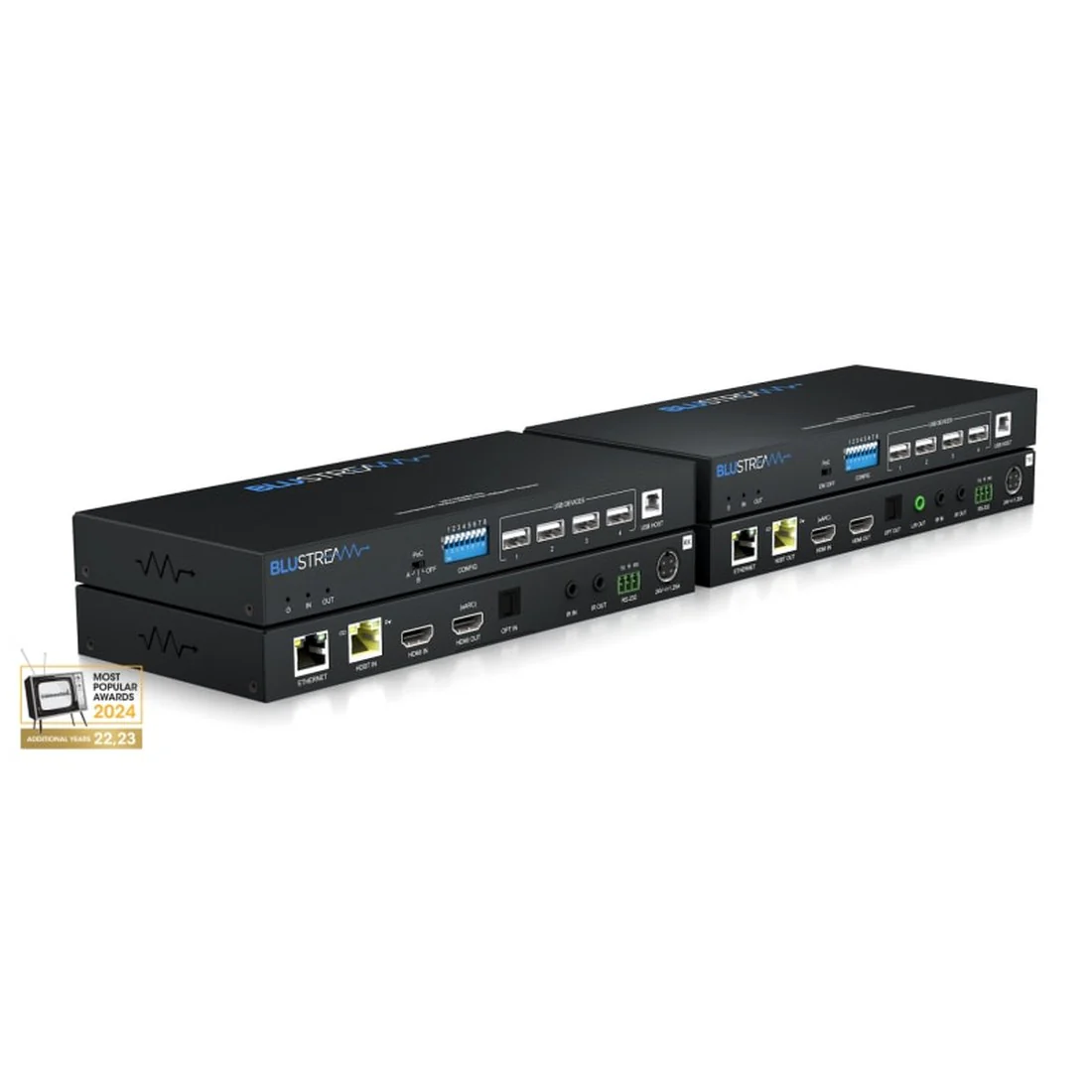

Blustream HEX18GARC-KIT HDBaseT Extender Kit with ARC/eARC

Blustream HEX18GARC-KIT HDBaseT Extender Kit with ARC/eARC

The Blustream HEX18GARC-KIT HDBaseT extender kit is built for serious AV performance, delivering uncompressed 4K 60Hz 4:4:4 HDMI 2.0 video and audio over a single CAT6A cable with stunning bit-for-bit accuracy. It keeps picture quality intact for critical viewing areas while adding powerful system flexibility through eARC, ARC, KVM, Ethernet pass-through, and long-distance transmission up to 100 metres.

Uncompressed 4K delivery without compromise

When image quality is the priority, this extender set preserves the full signal without compression or conversion, so fine detail, colour, and motion stay true to the source. It is an ideal fit for premium displays and demanding installations where stable 4K performance matters just as much as distance.

• HDBaseT3 technology for uncompressed, unconverted HDMI distribution
• Supports HDMI 2.0 18Gbps specification
• Supports 4K 60Hz 4:4:4 UHD video
• Supports HDR10 and HDR10+
• Supports HDCP 2.3, HDCP 2.2 and HDCP 1.4
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI video distribution up to 100m over a single CAT6A cable

Smarter integration for modern AV systems

Beyond extending HDMI, it gives your installation the kind of control and connectivity that simplifies real-world system design. A local HDMI loop-out at the transmitter helps with nearby display integration or cascading, while HDMI re-clocking at the receiver helps smooth out common handshaking and compatibility issues.

• 1 HDMI loop-out on the transmitter
• HDMI re-clocking on the receiver
• Bi-directional IR pass-through
• Bi-directional RS-232 pass-through
• Bi-directional 1Gb Ethernet pass-through
• Bi-directional PoC to power extenders from either the transmitter or receiver end

Flexible audio return and surround sound support

This kit is especially useful in systems where display audio needs to travel back cleanly to the rack or equipment hub. With support for eARC over HDMI plus ARC over HDMI or optical, it gives you more ways to recover audio while maintaining compatibility with modern surround formats.

• Supports eARC from display via HDMI
• Supports standard ARC from HDMI and Optical (S/PDIF) digital inputs
• Audio return to HDMI, optical digital, and analogue L/R audio outputs
• Analogue audio output supports 2-channel PCM only
• Bitstream passthrough of multichannel surround sound including object-based audio formats

KVM and USB extension for hands-on control

For installations that need more than signal transport, the built-in USB 2.0 KVM functionality adds practical control at both ends of the run. That makes it easier to extend keyboard, mouse, and other USB peripherals alongside your AV signal without adding extra hardware.

• USB 2.0 for KVM
• Combined USB speed of up to 350Mbps
• USB Type-B and 4 USB Type-A ports on both transmitter and receiver

Installation-ready hardware in the box

The package includes the core accessories needed to get the system integrated neatly and efficiently. Mounting hardware, IR accessories, and the included power supply help streamline setup for professional AV environments.

• Includes HEX18GARC-TX transmitter and HEX18GARC-RX receiver
• Includes 24V/1.25A DC power supply
• Includes USB-A to USB-B cable
• Includes IR receiver and IR emitter
• Includes 4 mounting brackets
• Mounting kits included

Frequently Asked Questions

1. How far can this extender transmit HDMI? It supports HDMI video distribution up to 100 metres over a single CAT6A cable.
2. Does it support 4K 60Hz 4:4:4 video? Yes, it supports uncompressed HDMI 2.0 18Gbps with 4K 60Hz 4:4:4 UHD video.
3. Can it pass audio back from a TV? Yes. It supports eARC via HDMI, plus standard ARC via HDMI or optical.
4. Does this model include KVM functionality? Yes, it features USB 2.0 for KVM with a combined speed of up to 350Mbps.
5. Is power required at both ends? No. Bi-directional PoC lets the extenders be powered from either the transmitter or receiver end.

Add the Blustream HEX18GARC-KIT HDBaseT extender kit to your cart to enjoy uncompromised 4K signal extension with flexible audio return and system control. Contact Gibbys Electronic Supermarket for expert advice on planning your custom AV distribution and whole-home theatre setup.
