Blustream HEX11WPW-TX HDMI Wall Plate HDBaseT Transmitter (HEX11WPWTX)

Blustream HEX11WPW-TX HDMI Wall Plate HDBaseT Transmitter (HEX11WPWTX)

The Blustream HEX11WPW-TX HDMI Wall Plate HDBaseT Transmitter is a 4K solution engineered to extend HDMI, video, and audio over a single CAT cable. Designed to work with all Blustream HDBaseT receiver and matrix solutions, it combines long-distance transmission, flexible powering, and UK & EU wall box compatibility in a clean wall plate format.

Long-Distance HDMI and 4K Distribution

Advanced HDBaseT technology allows the HEX11WPW-TX to distribute video and audio over a single CAT cable for reliable AV extension. It supports 4K UHD video up to 40m and extends HDMI at 1080p up to 70m, making it suitable for both Full HD and 4K installations.

• Supports 4K UHD video up to 40m
• 3840 x 2160 @30Hz 4:4:4
• 4096 x 2160 @24Hz 4:4:4
• 4K @60Hz 4:2:0
• Extends HDMI at 1080p up to 70m

Designed for Blustream System Compatibility

The HEX11WPW-TX has been designed to work with all Blustream HDBaseT receiver and matrix solutions. Smart EDID function automatically limits EDID to within HDBaseT specification to improve compatibility, while HDCP 2.2 support helps maintain compatibility with protected content.

• Compatible with all Blustream HDBaseT receiver / matrix products
• Smart EDID function to improve compatibility
• HDCP 2.2 support

Flexible Installation and Power Options

This HDMI wall plate transmitter can be installed in both UK and European back boxes and includes a white magnetic faceplate surround allowing for both UK & EU backbox compatibility. It can be powered locally or from compatible Blustream HDBaseT products, giving installers flexible power options.

• White magnetic faceplate surround
• UK & EU backbox compatibility
• Supports 12V-48V PoC from compatible Blustream HDBaseT receiver / matrix products

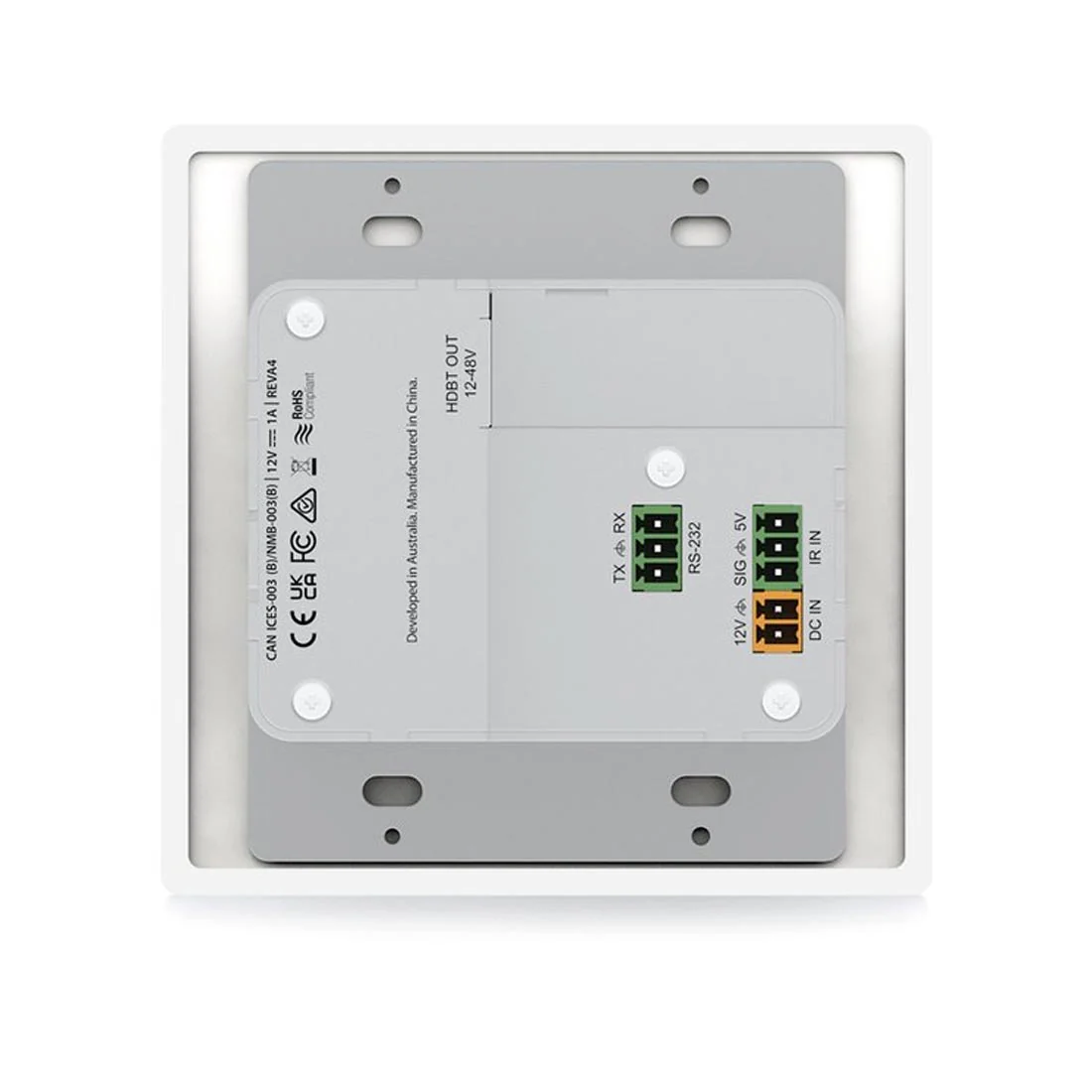

• Local power input: 1 x 2-pin Phoenix connector
• Power supply: 12V/1A DC

Audio and Control Pass-Through

In addition to video extension, the HEX11WPW-TX supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications. Bi-directional RS-232 pass-through and IR pass-through to HDBaseT device also support integrated AV control.

• Supports bitstream passthrough of multichannel surround sound
• Supports object-based audio formats in line with HDMI specifications
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT device

Frequently Asked Questions

1. How far can the HEX11WPW-TX extend HDMI? It extends HDMI at 1080p up to 70m and supports 4K UHD video up to 40m, including 4K @60Hz 4:2:0.
2. Will it fit UK and European back boxes? Yes. It can be installed in both UK and European back boxes and includes a white magnetic faceplate surround allowing for both UK & EU backbox compatibility.
3. Can it be powered from a compatible Blustream HDBaseT product? Yes. It supports 12V-48V PoC from compatible Blustream HDBaseT receiver / matrix products, and it can also be powered locally.
4. Does it support audio and control pass-through? Yes. It supports bitstream passthrough of multichannel surround sound including object-based audio formats, plus bi-directional RS-232 and IR pass-through.

Ready to streamline your AV installation? Add the Blustream HEX11WPW-TX HDBaseT transmitter to your cart today for long-distance HDMI, video, and audio distribution over a single CAT cable. Contact the audio experts at Gibbys Electronic Supermarket for advice on matching HDBaseT receivers, matrix solutions, and installation accessories!
