The Blustream DA22XLR-WP-EU-V2 XLR Dante Audio Wall Plate is a multi-input / output wall plate engineered to convert analogue audio within a digital Dante networked audio system. Designed as a plug & play BYOD interface, it provides 2 input channels of balanced / unbalanced / MIC audio and 2 output channels of balanced / unbalanced audio, with flexible power and mounting options for professional AV installations.

Convert Analogue Audio to and from Dante

The DA22XLR-WP-V2 provides a practical interface between analogue sources and a Dante audio network. It converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels and also converts 2 x Dante audio channels to balanced / unbalanced audio outputs.

• Dante network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels
• Converts 2 x Dante audio channels to balanced / unbalanced audio outputs
• 2 x analogue balanced / unbalanced 3-Pin XLR inputs
• 2 x analogue balanced / unbalanced 3-Pin XLR outputs

Flexible Input and Output Adjustment

For system matching, each XLR input and output includes adjustment options to suit connected equipment. Switchable 48V/0.5mA Phantom power is available for each MIC XLR input, while adjustable MIC / line sensitivity and line gain allow level configuration at both the input and output stages.

• Switchable 48V/0.5mA Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +20 dBu to -28 dBV for each XLR output
• 4 x 5 position rotary dials for Sensitivity / Gain
• 2 x push buttons for 48V Phantom power

Network Audio and Installation Versatility

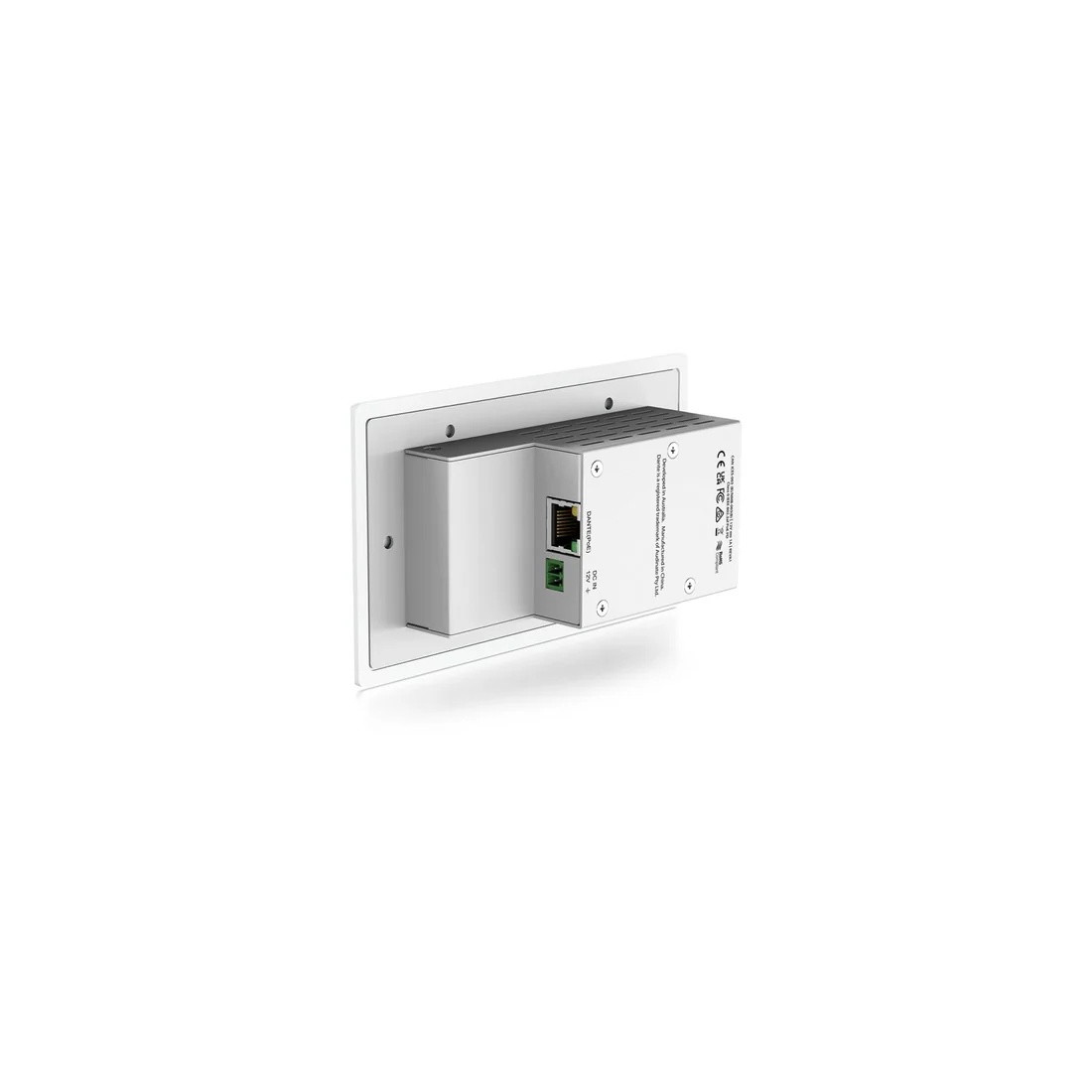

This plug & play wall plate supports 44.1, 48 & 96kHz sample rates @ 24 Bit, configurable Dante device latency, and AES67 RTP audio transport. It can be powered from any PoE switch using Class 0 IEEE 802.3af PoE or by the supplied 12V DC adapter, while the magnetic faceplate surround allows for both UK & EU backbox compatibility.

• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante device latency: 2, 3, 4, 5 or 10ms using Dante Controller
• Supports AES67 RTP audio transport
• Class 0 IEEE 802.3af PoE power support
• Supports power via 12V DC adapter (supplied)
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility

Frequently Asked Questions

1. Does the DA22XLR-WP-EU-V2 need PoE to operate? No. It supports Class 0 IEEE 802.3af PoE, or it can be powered via the supplied 12V/1A DC adapter when the network switch does not support PoE.
2. Is this wall plate compatible with UK and EU backboxes? Yes. Its magnetic faceplate surround allows for both UK & EU backbox compatibility.
3. Does it support microphone inputs with phantom power? Yes. Each MIC XLR input features switchable 48V/0.5mA Phantom power.
4. How many audio inputs and outputs does it provide? It provides 2 x audio inputs and 2 x audio outputs on a Dante network wall plate interface.
