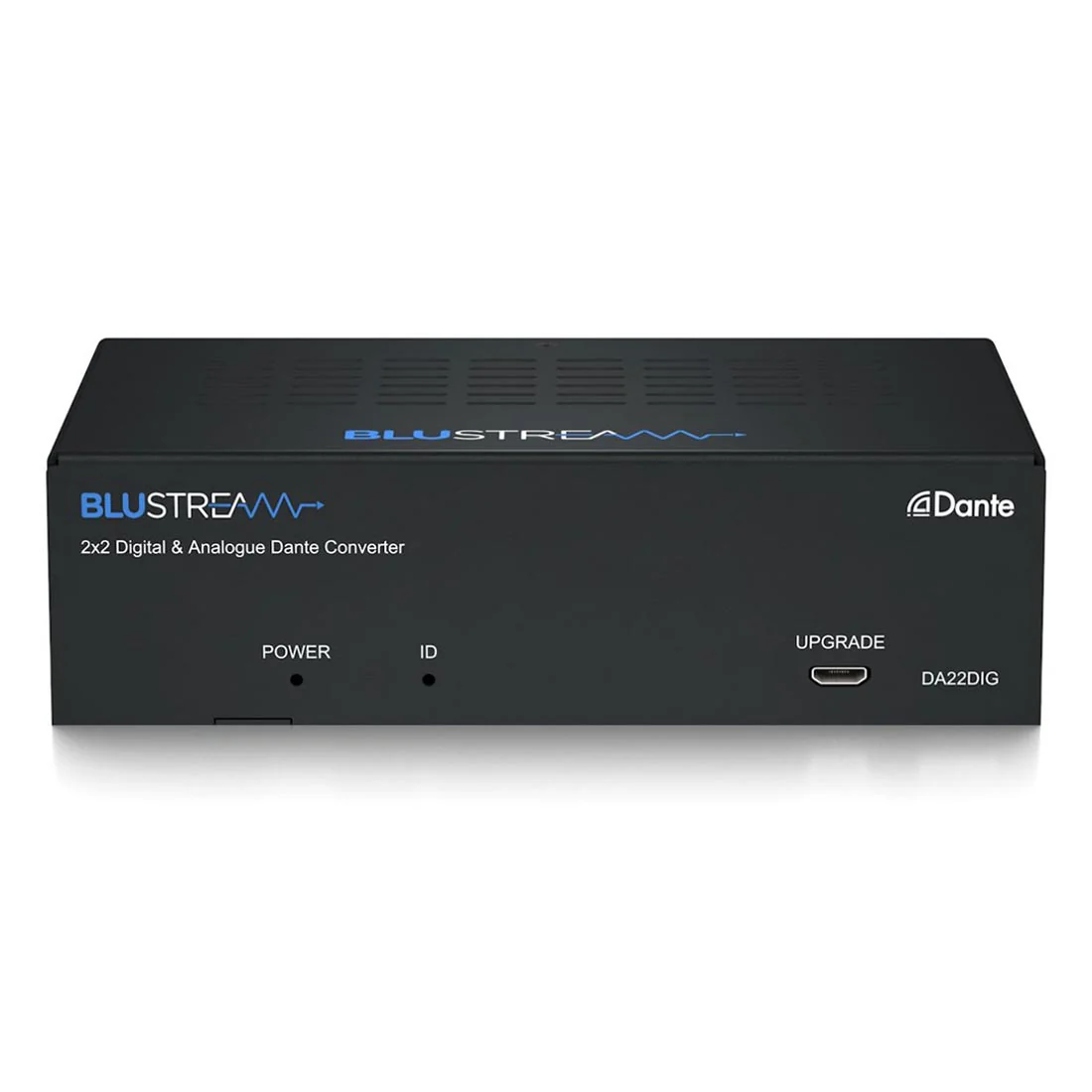

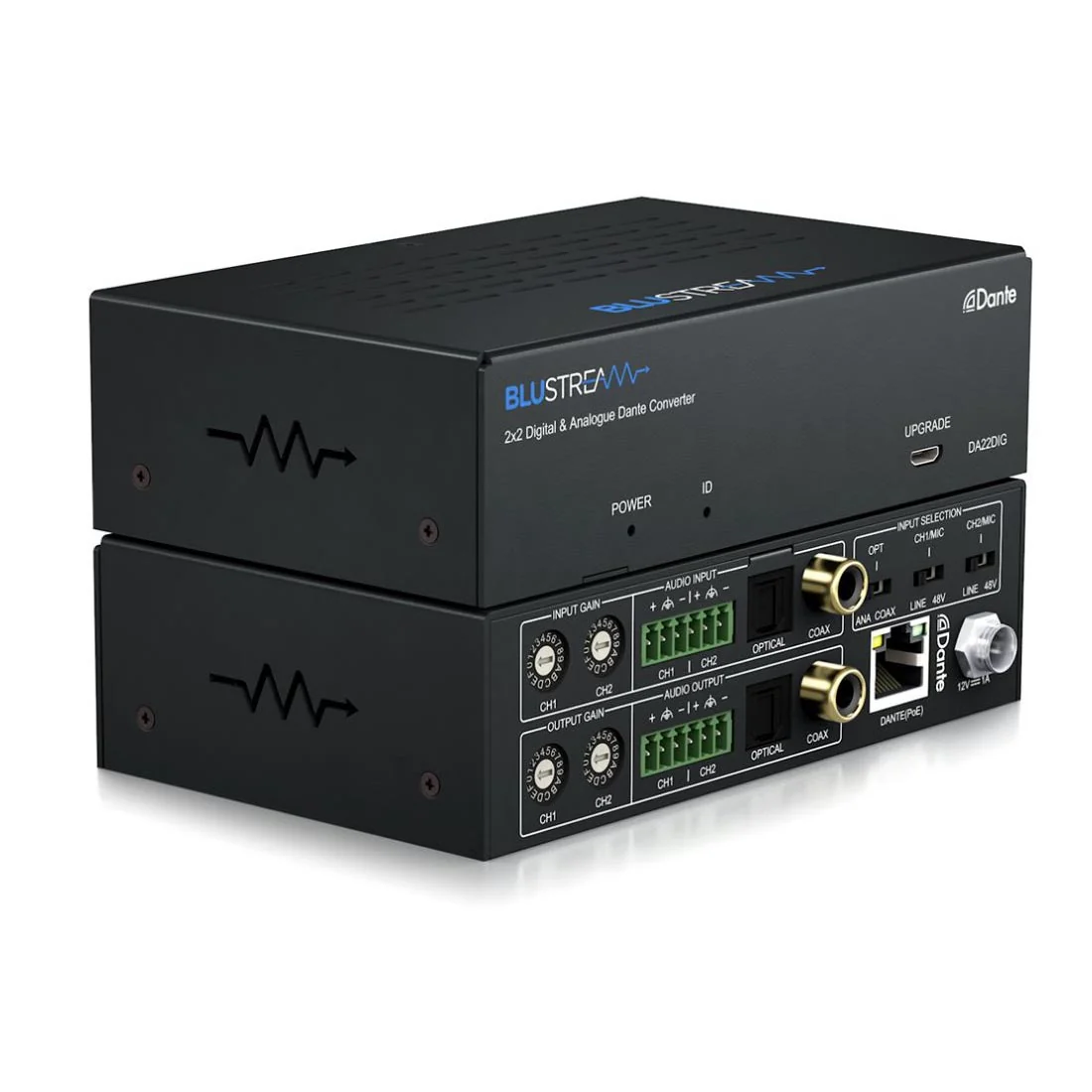

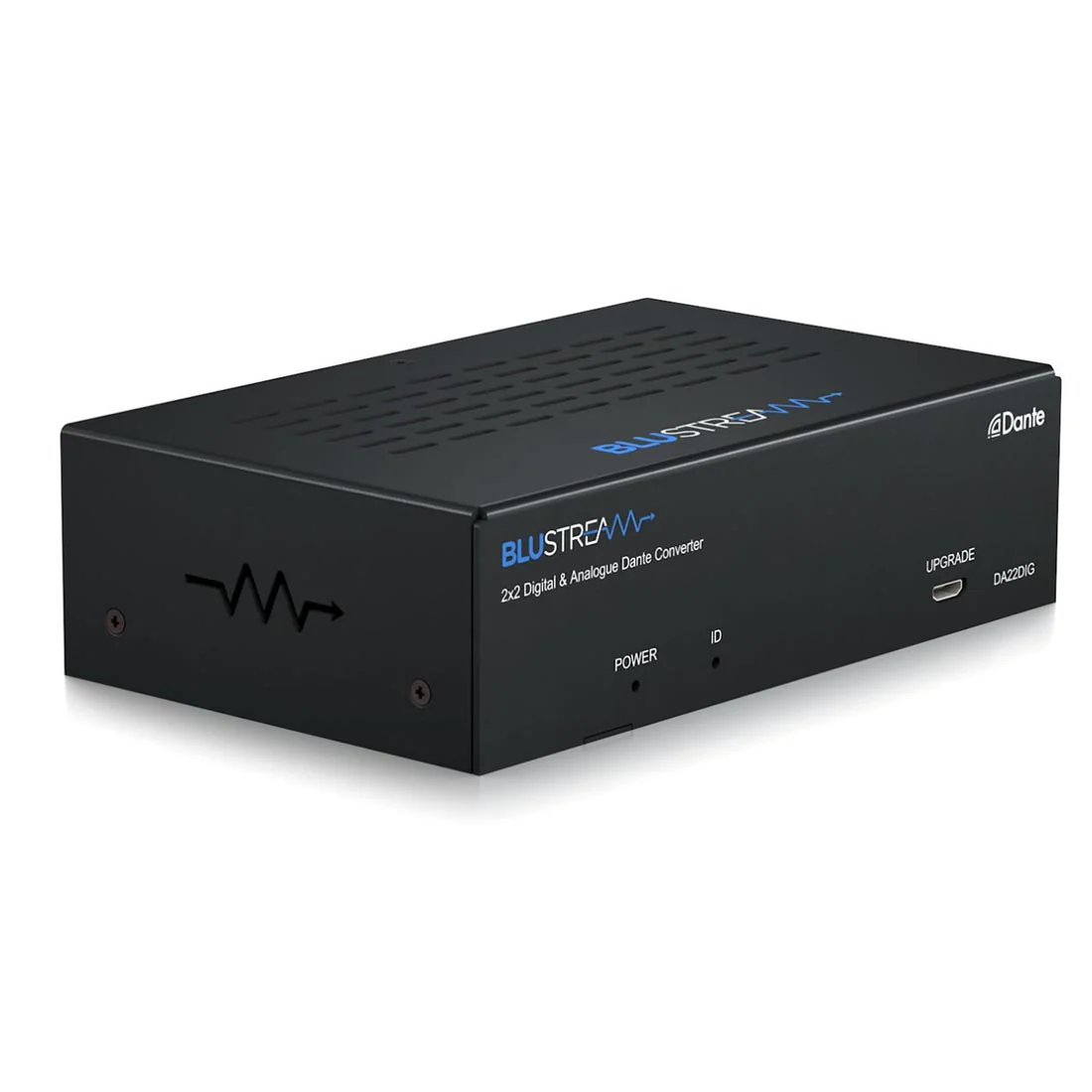

Blustream DA22DIG 2x2 Digital And Analogue Dante Converter (DA22DIG)

Blustream DA22DIG 2x2 Digital And Analogue Dante Converter

The Blustream DA22DIG converts between 2-channel analogue or digital audio and a Dante digital signal, handling both encoding and decoding. It is a plug & play device that can be powered via PoE or the supplied 12V power supply.

2x2 Dante Audio Conversion

The Blustream DA22DIG provides straightforward conversion for Dante-enabled systems.

• Encodes 2ch analogue audio or digital audio to a Dante digital signal
• Decodes a Dante digital signal to 2ch analogue audio and digital audio
• Selectable digital audio between optical Toslink and coaxial RCA inputs

Plug & Play Setup and Power Options

Installation is simplified with plug & play operation and flexible power.

• Features Class 3 IEEE 802.3af PoE for powering from a PoE switch
• Supports power via 12V DC adapter (supplied)

Microphone Support and Level Control

The unit supports microphones and provides channel-level adjustments.

• Configurable MIC audio input with 48V phantom power
• Independent sensitivity control for input channels
• Gain control for output channels

Formats, Latency, and Transport

The Blustream DA22DIG supports multiple sample rates and transport options, with adjustable latency.

• Supports 44.1, 48, and 96 kHz sample rates at 24-bit
• Configurable Dante device latency (1, 2, or 5 ms) using Dante Controller
• Supports AES67 RTP audio transport

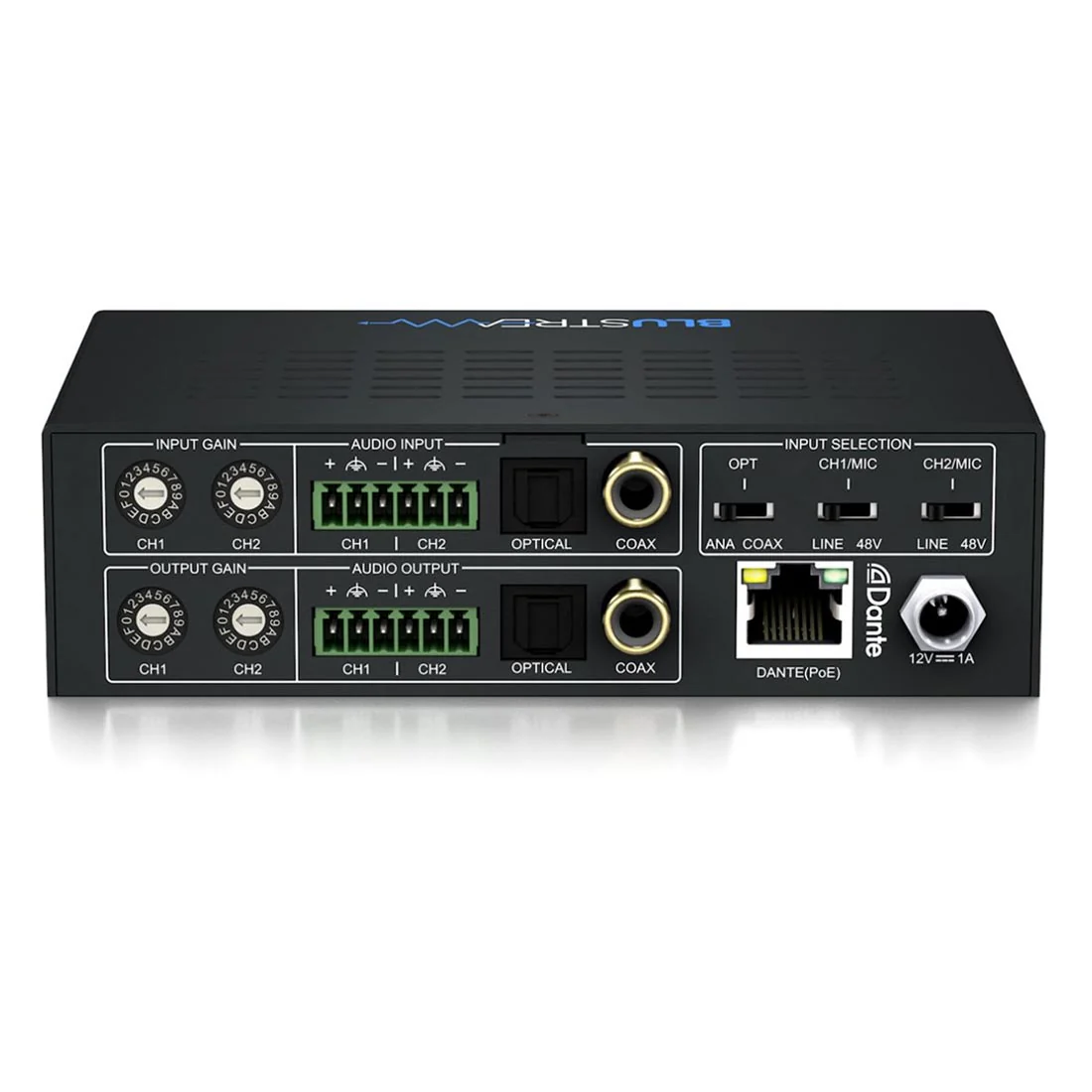

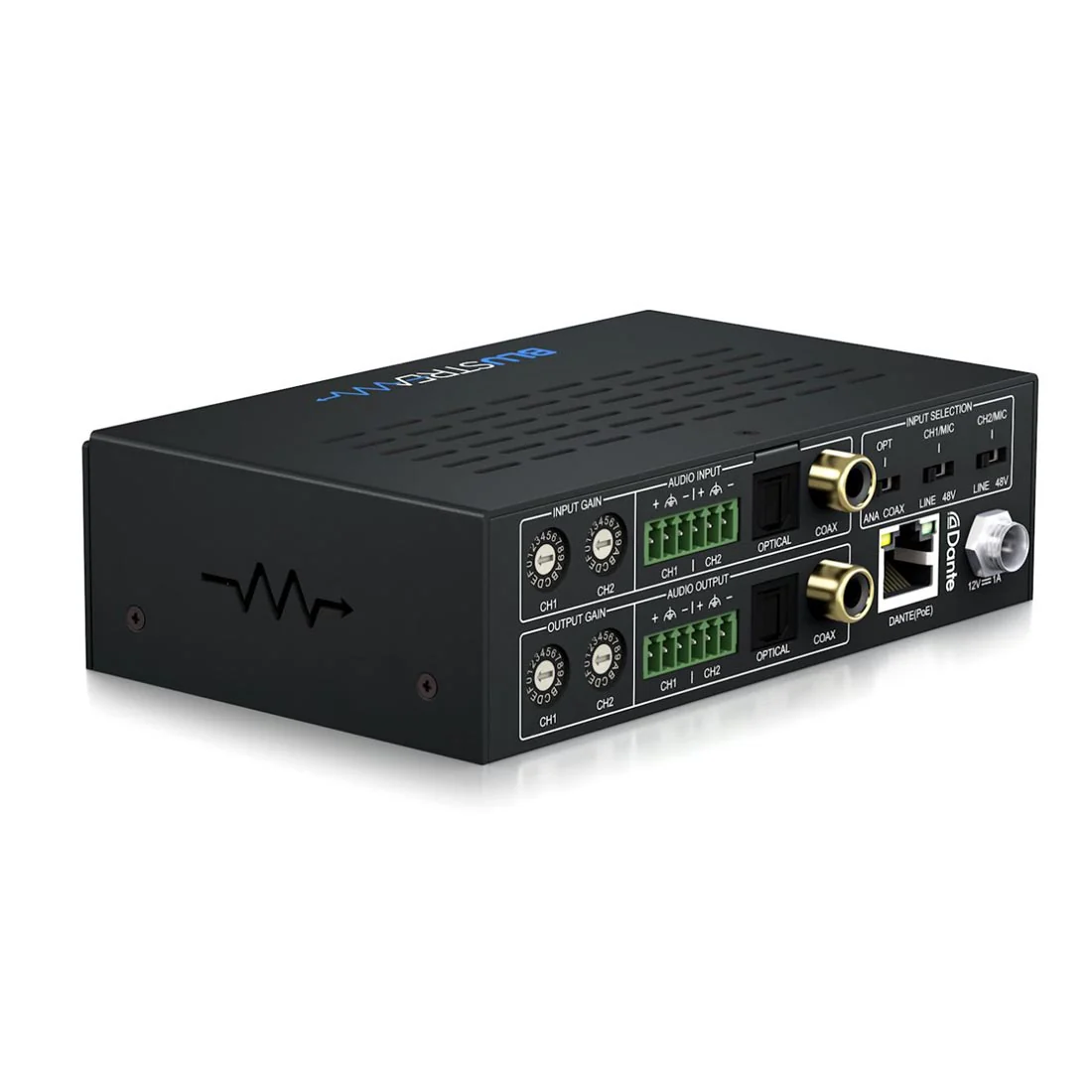

Selectable I/O and Network Connections

Multiple analogue, digital, and network connections are available.

• 2 x analogue balanced/unbalanced I/O via 6-pin Phoenix connectors
• 1 x optical (S/PDIF) and 1 x coaxial (RCA) digital I/O
• 1 x PoE Dante Ethernet connection (RJ45)

Frequently Asked Questions

• What does the DA22DIG convert?

  It encodes 2-channel analogue or digital audio to a Dante digital signal and decodes a Dante digital signal to 2-channel analogue and digital audio.

• Which digital inputs are supported?

  Digital audio is selectable between optical (S/PDIF) and coaxial (RCA) inputs.

• Does it support microphones?

  Yes. It includes a configurable MIC audio input with 48V phantom power.

• How is the unit powered?

  It features Class 3 IEEE 802.3af PoE and also supports power via a supplied 12V DC adapter.

• What sample rates and latency options are available?

  It supports 44.1, 48, and 96 kHz at 24-bit and offers configurable Dante device latency of 1, 2, or 5 ms using Dante Controller.

• Does it support AES67?

  Yes. It supports AES67 RTP audio transport.
