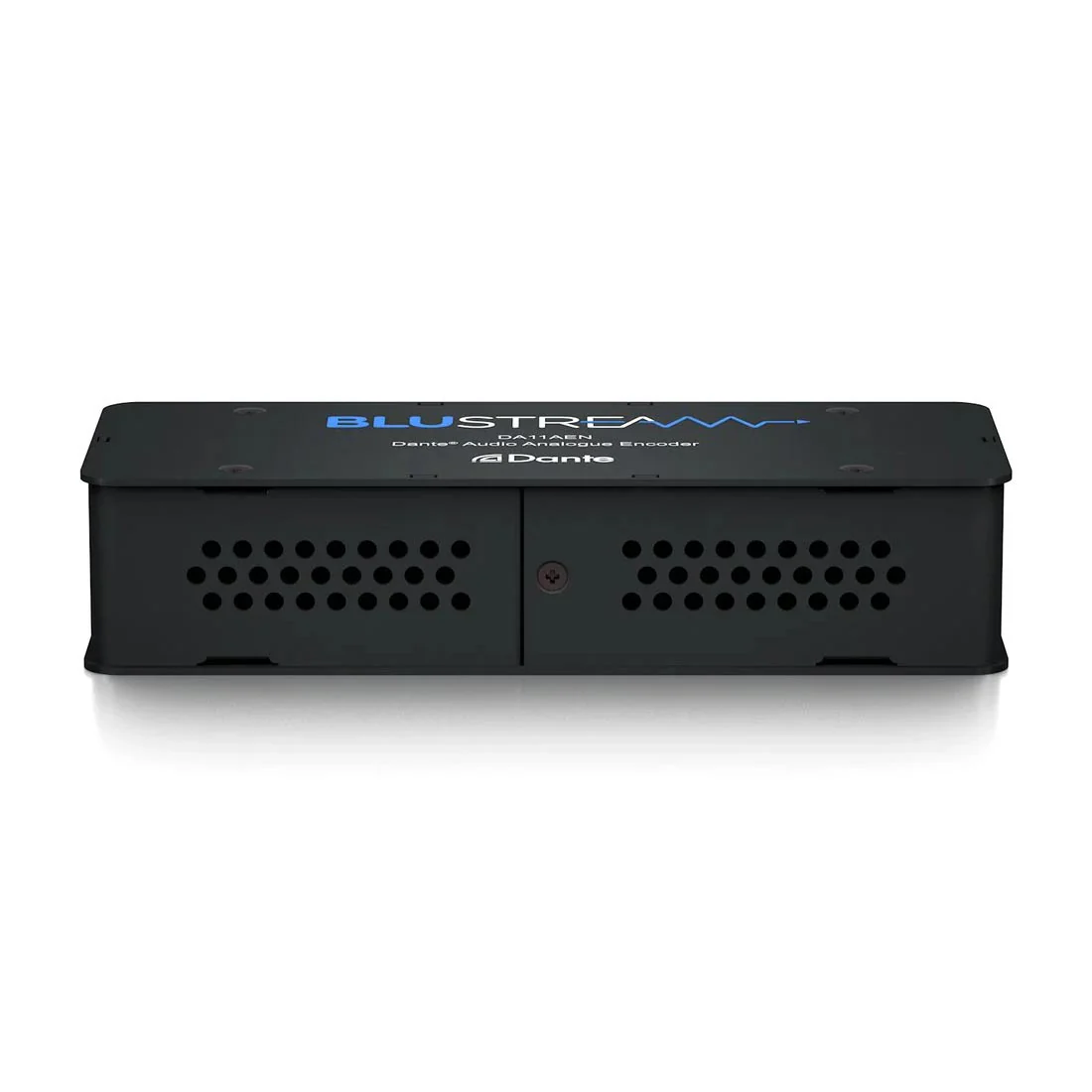

Blustream DA11AEN Dante 2-Channel Audio Analogue Encoder

Blustream DA11AEN Dante 2-Channel Audio Analogue Encoder

The Blustream DA11AEN encodes unbalanced or balanced 2-channel analogue audio to a Dante digital signal, enabling non-Dante audio sources to operate within a Dante network. It is a plug & play device with flexible power options for straightforward deployment.

Seamless Dante network integration

The DA11AEN allows non-Dante audio sources to be connected as a source within a Dante network, including mixing consoles, amplifiers, computers, and Blustream Matrix or distribution products.

• Encodes unbalanced or balanced 2ch analogue audio to a Dante digital signal
• Supports AES67 RTP audio transport

Plug & play power and deployment

This plug & play encoder supports PoE and local power to suit different installation environments.

• Powered via Class 1 802.3af PoE from any PoE network switch
• Optional local 12V power supply input (sold separately)

Audio configuration and control

The DA11AEN offers adjustable input sensitivity, multiple sample rates, and configurable device latency via Dante Controller.

• Independent input sensitivity control per channel: +24dBu to -10dBV
• Supports 44.1, 48, and 96 kHz sample rates at 24-bit
• Configurable Dante device latency: 1, 2, or 5 ms (via Dante Controller)

Connectivity

Designed for reliable integration with common AV infrastructure.

• 6-pin Phoenix connector for 2ch balanced/unbalanced analogue audio input

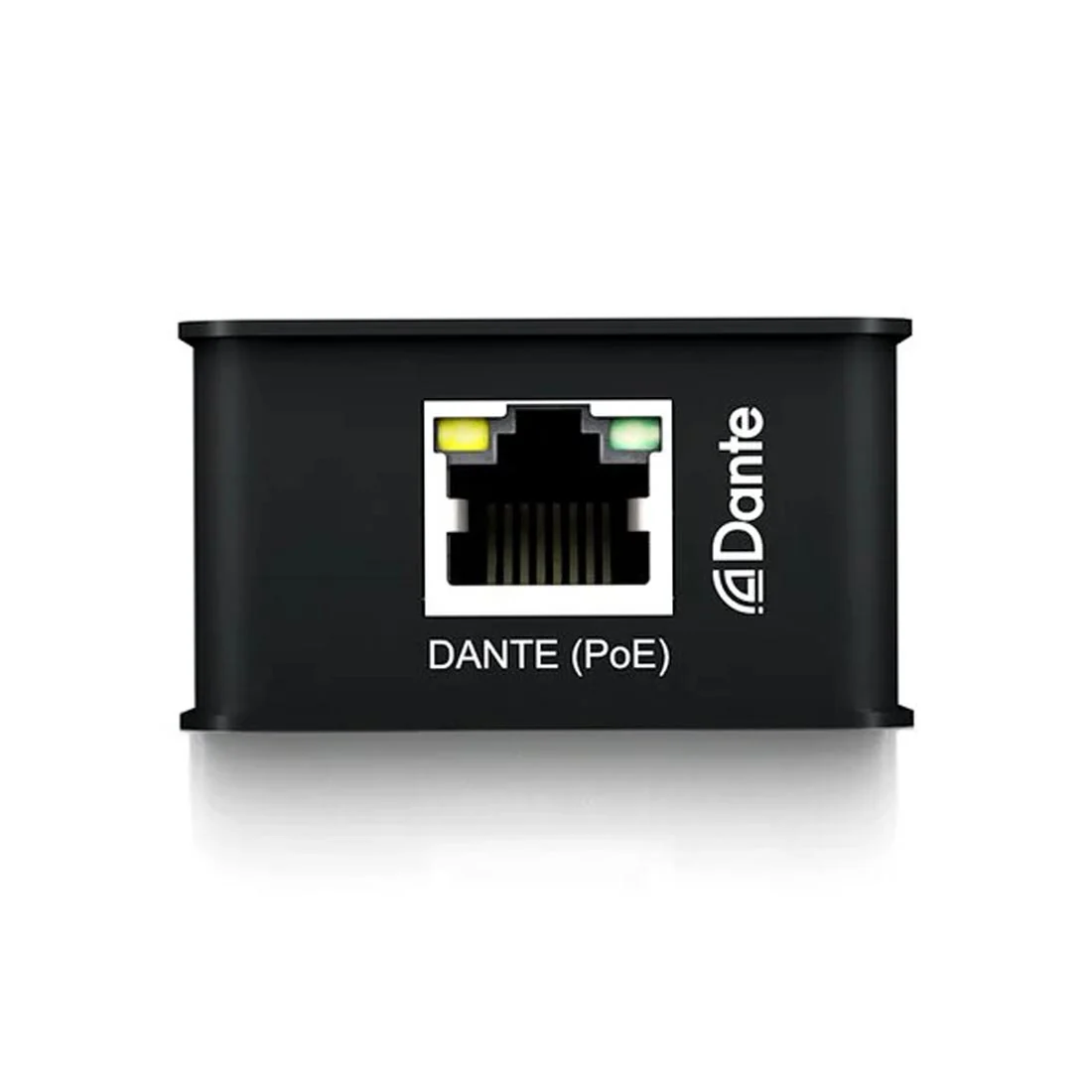

• RJ45 (100Mbps) Dante network connection

Frequently Asked Questions

• What does the DA11AEN do?

  It encodes unbalanced or balanced 2-channel analogue audio to a Dante digital signal and allows non-Dante sources to be connected as a source within a Dante network.

• How is the DA11AEN powered?

  It can be powered via Class 1 802.3af PoE from any PoE network switch or by a local 12V power supply input (sold separately).

• Which sample rates and bit depth are supported?

  44.1, 48, and 96 kHz at 24-bit.

• Can the device latency be configured?

  Yes. It supports 1, 2, or 5 ms latency, configurable using Dante Controller.

• Does it support AES67?

  Yes. The DA11AEN supports AES67 RTP audio transport.

• What input and network connectors are provided?

  A 6-pin Phoenix connector for 2-channel balanced/unbalanced analogue audio input and a female RJ45 (100Mbps) for the Dante network.
